Zebra DS9908-SR Black RFID USB Kit – 865-868 MHz: DS9908-SRR0004ZZEU Scanner, CBA-U23-S07ZBR Shielded USB Power+ Cable

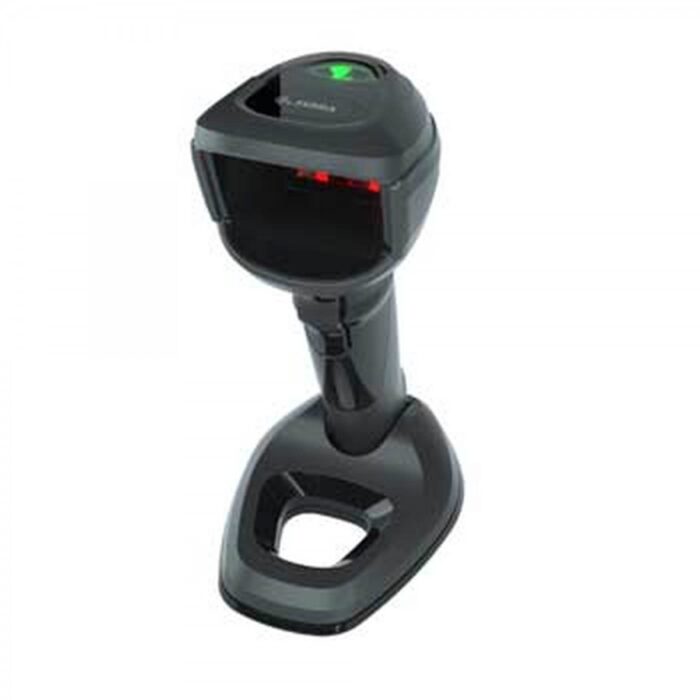

The Zebra DS9908-SR is a handheld bar code reader designed for efficient scanning. It supports both 1D and 2D scanner types, and is capable of reading a variety of linear (1D) barcodes, including Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, and U.P.C. The device features wired connectivity technology and is equipped with standard interfaces such as RS-232, RS-485, and USB. It comes in a sleek black color and has an International Protection (IP) code of IP52, indicating its resistance to dust and water. The Zebra DS9908-SR supports multiple image formats including BMP, JPEG, and TIFF. It operates with a DC power source, has an input voltage of 5 V, and a power consumption of 321 mA. The product is compact and lightweight, weighing 330 grams, with dimensions of 94 mm in width and 132 mm in depth.

Scanning

Type
Type
Handheld bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C.
show more


Optical sensor resolution (W x H)
1280 x 800 pixels
show more


Wavelength
Wavelength
528 nm
show more


Pitch reading angle
-60 – 60°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
RS-232, RS-485, USB
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP52
show more


LED indicators
Yes
show more


Built-in display
Built-in display
No
show more


Image formats supported
Image formats supported
BMP, JPEG, TIFF
show more


Built-in processor
Built-in processor
Yes
show more


Processor frequency
Processor frequency
800 MHz
show more


Product colour
Product colour
Black
show more

Power

Power source type
Power source type
DC
show more


Input voltage
Input voltage
5 V
show more


Power consumption
321 mA
show more

Weight & dimensions

Width
Width
94 mm
show more


Depth
Depth
132 mm
show more


Height
Height
203 mm
show more


Weight
Weight
330 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more
