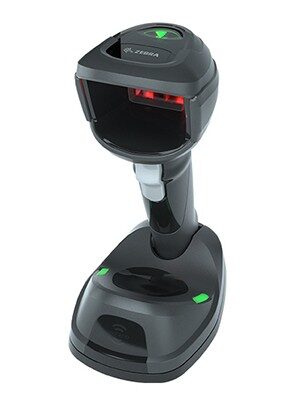

Zebra DS9908R Scanner, Presentation Area Imager, Standard Range, Corded, RFID, Midnight Black – Israel Frequencies

The Zebra DS9908-SRR is a handheld barcode reader designed for versatile scanning applications. It supports both 1D and 2D barcode scanning, making it suitable for various formats including Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, and U.P.C. The device utilizes wired connectivity and features standard interfaces such as RS-232, RS-485, and USB, ensuring compatibility with a wide range of systems. The scanner is presented in a sleek black color and is built to an International Protection rating of IP52, offering a degree of protection against dust and water. It supports image formats including BMP, JPEG, and TIFF, allowing users to handle diverse data formats efficiently. The power source is DC with an input voltage of 5 volts, and it has a power consumption of 321 mA. The unit weighs 420 grams and has dimensions of 99 mm in width and 146 mm in depth, making it a compact and user-friendly device for handheld use.

Scanning

Type
Type
Handheld bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C.
show more


Optical sensor resolution (W x H)
1280 x 800 pixels
show more


Wavelength
Wavelength
528 nm
show more


Pitch reading angle
-60 – 60°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
RS-232, RS-485, USB
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP52
show more


LED indicators
Yes
show more


Built-in display
Built-in display
No
show more


Image formats supported
Image formats supported
BMP, JPEG, TIFF
show more


Built-in processor
Built-in processor
Yes
show more


Processor frequency
Processor frequency
800 MHz
show more


Product colour
Product colour
Black
show more

Power

Power source type
Power source type
DC
show more


Input voltage
Input voltage
5 V
show more


Power consumption
321 mA
show more

Weight & dimensions

Width
Width
99 mm
show more


Depth
Depth
146 mm
show more


Height
Height
203 mm
show more


Weight
Weight
420 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more
