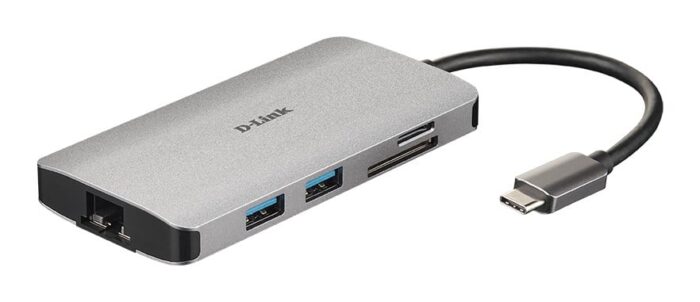

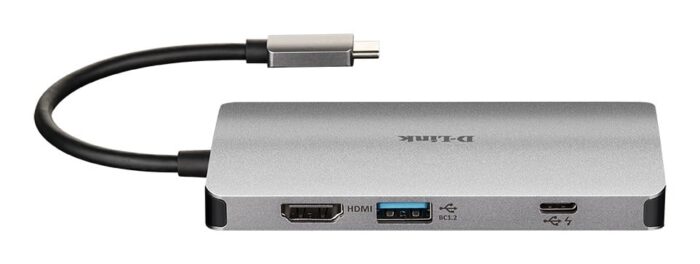

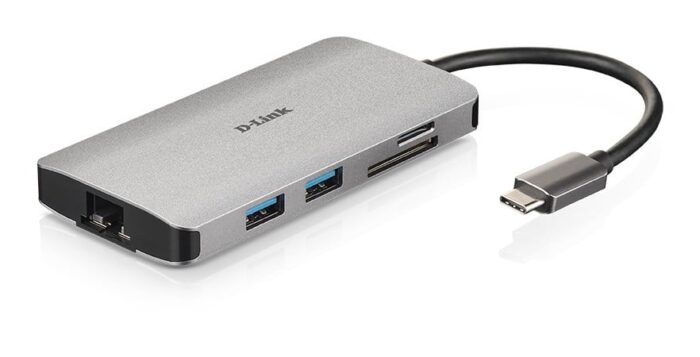

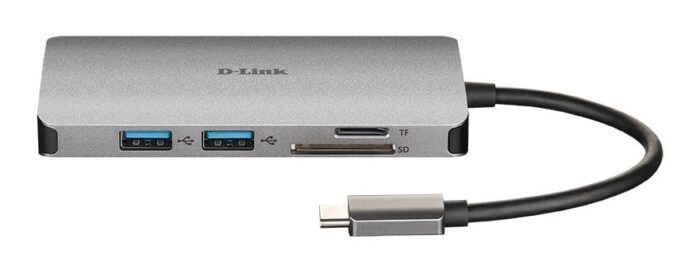

D-Link DUB-M810 Notebook Dock/Port Replicator Wired Thunderbolt 3 Silver

The D-Link DUB-M810 is an 8-in-1 USB-C Hub designed to expand the connectivity options of modern laptops and devices. It features HDMI, Ethernet, a card reader, and Power Delivery capabilities. This hub utilizes wired connectivity with a USB 3.2 Gen 1 (previously known as USB 3.1 Gen 1) Type-C host interface and supports USB Power Delivery up to 100 watts. Complying with networking standards such as IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x, it ensures high compatibility and performance for network connections. The product has an elegant aluminum color and supports various memory cards, including MicroSD (TransFlash), SD, SDHC, and SDXC. It can achieve a maximum digital resolution of 4096 x 2160 pixels, which is ideal for high-definition displays. The hub operates with an AC input voltage of 20 volts and an input current of 0.08 amperes. Its compact design measures 105 mm in width, 52 mm in depth, and 13 mm in height.

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Host interface
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
show more


USB Power Delivery (USB PD)
Yes
show more


USB Power Delivery up to
100 W
show more


USB Power Delivery revision
3.0
show more


HDMI ports quantity
HDMI ports quantity
1
show more


HDMI version
1.4
show more


Thunderbolt 3 ports quantity
1
show more


Microphone in
Microphone in
No
show more


HDCP version
2.2
show more


HDCP
HDCP
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
show more

Performance

Card reader integrated
Card reader integrated
Yes
show more


Compatible memory cards
Compatible memory cards
MicroSD (TransFlash), SD, SDHC, SDXC
show more


Maximum digital resolution
4096 x 2160 pixels
show more


Maximum refresh rate
30 Hz
show more


Product colour
Product colour
Aluminium
show more


Plug and Play
Plug and Play
Yes
show more


Certification
CE, IC, FCC, RCM
show more

Power

AC input voltage
AC input voltage
20 V
show more


Input current
0.08 A
show more

Software

Windows operating systems supported
Windows operating systems supported
Yes
show more


Mac operating systems supported
Mac operating systems supported
Yes
show more


Linux operating systems supported
Linux operating systems supported
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
10 – 85%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
105 mm
show more


Depth
Depth
52 mm
show more


Height
Height
13 mm
show more


Weight
Weight
82 g
show more

Packaging data

Quantity per pack
1 pc(s)
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Other features

Cable length
Cable length
0.15 m
