D-Link DXS-1210-10TS Network Switch Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black, Silver

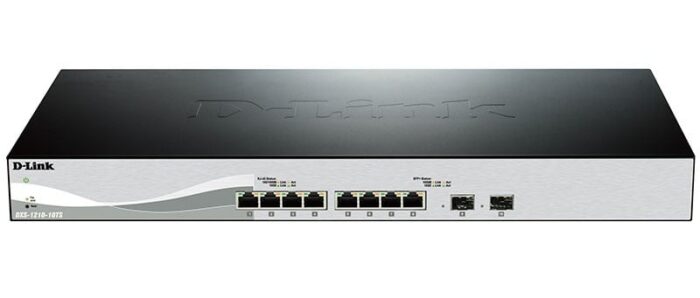

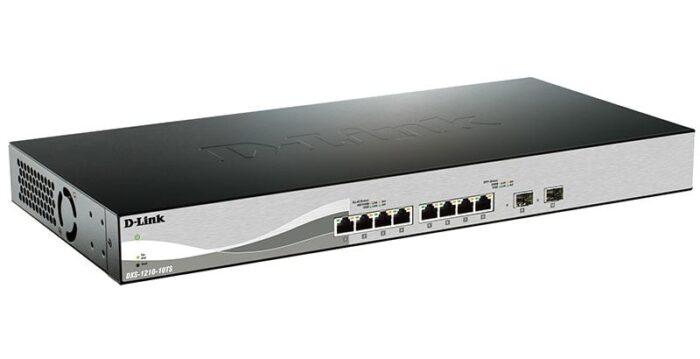

The D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch is a managed switch designed for Layer 2 and Layer 3 networking. It includes eight RJ-45 Ethernet ports that support 10G Ethernet speeds of 100, 1000, and 10000 Mbps and a console port in RJ-45 format. The switch supports a MAC address table containing up to 32,000 entries and has a switching capacity of 200 Gbit/s. It adheres to several networking standards, including IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, and IEEE 802.3z. The switch is designed for rack mounting with a 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2/L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


ARP inspection
Yes
show more


MIB support
Y
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


SFP+ module slots quantity
2
show more


Fiber optic connector
Fiber optic connector
SFP+
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Cable types supported
Cat6
show more


Port mirroring
Yes
show more


Spanning tree protocol
Yes
show more


Head-of-line (HOL) blocking
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
100,1000,2500,5000,10000 Mbit/s
show more


Broadcast storm control
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more


Number of VLANs
4094
show more

Data transmission

Switching capacity
Switching capacity
200 Gbit/s
show more


Forwarding rate
148.8 Mpps
show more


MAC address table
MAC address table
32000 entries
show more


Store-and-forward
Yes
show more


Number of queues
8
show more


Jumbo frames support
Yes
show more


Jumbo frames
10000
show more

Security

DHCP features
DHCP server, DHCP client
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


Password protection
Password protection
Yes
show more


Loop protection
Yes
show more

Multicast features

Multicast support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black, Silver
show more


LED indicators
Yes
show more


Number of fans
Number of fans
1 fan(s)
show more

Performance

Noise level
Noise level
46.6 dB
show more

Power

Power source
Power source
AC
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


Power consumption (max)
Power consumption (max)
43.26 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more

Weight & dimensions

Width
Width
330 mm
show more


Depth
Depth
200 mm
show more


Height
Height
44 mm
show more


Weight
Weight
2.17 kg
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more

Certificates

Certification
CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB
show more
