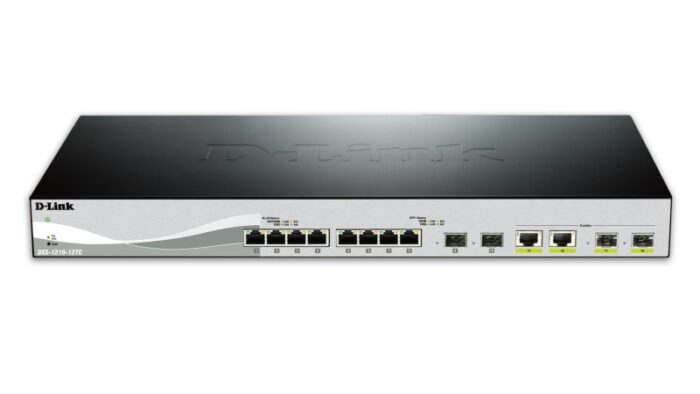

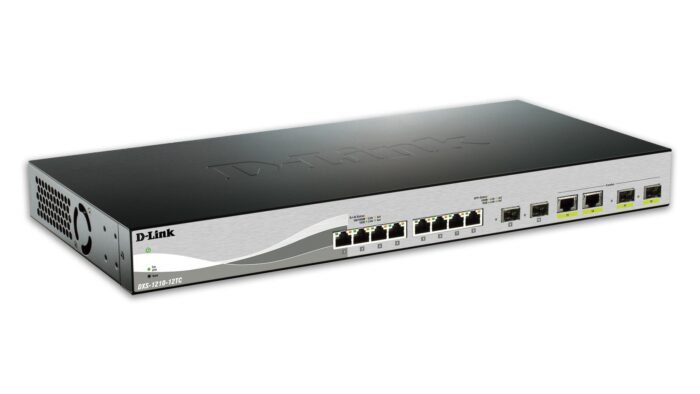

D-Link DXS-1210-12TC Network Switch Managed L2 10G Ethernet (100/1000/10000) 1U Black, Silver

The D-Link Multi-Gigabit Smart Managed Switch features 8 ports of 10GBASE-T, 2 SFP+ ports, and 2 combination 10GBASE-T/SFP+ ports. This is a managed switch with Layer 2 and Layer 3 capabilities. It includes 8 basic switching RJ-45 Ethernet ports that support 10G Ethernet (100/1000/10000) and also has an RJ-45 console port. The switch offers a MAC address table with 32,000 entries and a switching capacity of 240 Gbit/s. It adheres to networking standards such as IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3z, and IEEE 802.3az. Designed for rack mounting, this switch has a 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2/L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
No
show more


ARP inspection
Yes
show more


MIB support
Y
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


Combo SFP ports quantity
2
show more


SFP+ module slots quantity
2
show more


Fiber optic connector
Fiber optic connector
SFP+
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az
show more


10G support
10G support
Yes
show more


Cable types supported
Cat6a, Cat7
show more


Port mirroring
Yes
show more


Spanning tree protocol
Yes
show more


Head-of-line (HOL) blocking
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
1000,5000,100,2500,10000 Mbit/s
show more


Broadcast storm control
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more


Number of VLANs
4094
show more

Data transmission

Switching capacity
Switching capacity
240 Gbit/s
show more


Forwarding rate
178.56 Mpps
show more


MAC address table
MAC address table
32000 entries
show more


Store-and-forward
Yes
show more


Number of queues
8
show more


Jumbo frames support
Yes
show more


Jumbo frames
10000
show more

Security

DHCP features
DHCP client, DHCP server
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


Password protection
Password protection
Yes
show more


Loop protection
Yes
show more

Multicast features

Multicast support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black, Silver
show more


LED indicators
Yes
show more


Number of fans
Number of fans
2 fan(s)
show more

Performance

Noise level
Noise level
48 dB
show more

Power

Power source
Power source
AC
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


Power consumption (max)
Power consumption (max)
59.1 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
210 mm
show more


Height
Height
44 mm
show more


Weight
Weight
3.04 kg
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more

Certificates

Certification
CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB
show more
