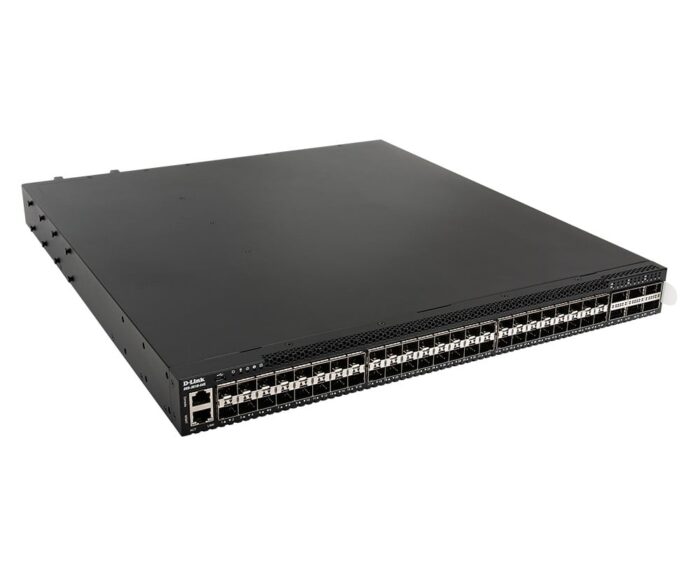

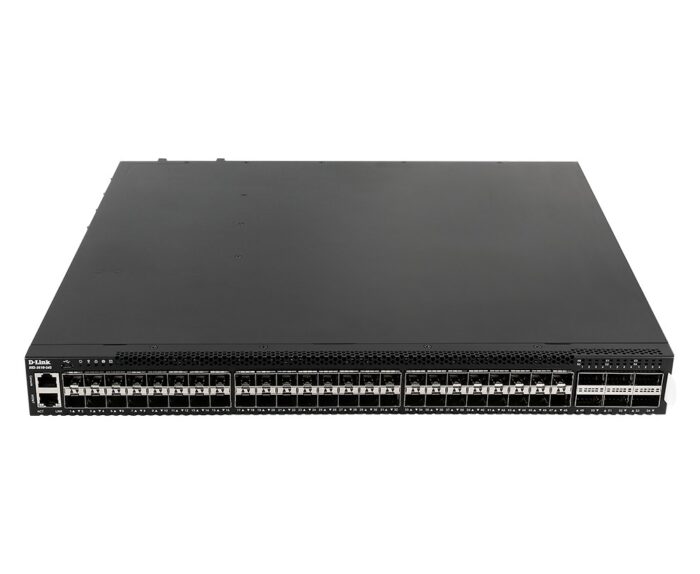

D-Link DXS-3610-54S Managed L3 None 1U Black

The D-Link DXS-3610-54S is a managed switch designed for Layer 3 networking needs. It features one USB 2.0 port and an RJ-45 console port for convenient connectivity. The switch operates in full duplex mode and supports a MAC address table with up to 294,912 entries. It offers an impressive switching capacity of 2,211.84 Gbps. The DXS-3610-54S is compliant with several networking standards, including IEEE 802.1D, 802.1Q, 802.1p, 802.1s, 802.1v, 802.1w, and 802.1x. Its design supports rack mounting, and it comes in a compact 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


ARP inspection
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
No
show more


SFP+ module slots quantity
48
show more


Console port
RJ-45
show more


QSFP28 ports quantity
6
show more


USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x
show more


10G support
10G support
Yes
show more


Port mirroring
Yes
show more


IP routing
Yes
show more


Full duplex
Full duplex
Yes
show more


Head-of-line (HOL) blocking
Yes
show more


Spanning tree protocol
Yes
show more


Flow control support
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN
show more

Data transmission

Switching capacity
Switching capacity
2211.84 Gbit/s
show more


Forwarding rate
1607.04 Mpps
show more


MAC address table
MAC address table
294912 entries
show more


Number of queues
8
show more


Static route
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
9436
show more


Packet buffer memory
32 MB
show more

Security

DHCP features
DHCP client, DHCP server, DHCP snooping
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


BPDU filtering/protection
Yes
show more


SSH/SSL support
Yes
show more

Multicast features

Multicast support
Yes
show more

Protocols

Management protocols
SNMP v1/v2c/v3
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


Number of fans
Number of fans
5 fan(s)
show more


Electromagnetic compatibility
Electromagnetic compatibility
FCC, CE, C-Tick, IC, VCCI
show more

Performance

Physical stacking (units)
12
show more


Virtual stacking (units)
32
show more


Noise level
Noise level
79.4 dB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
94262 h
show more

Power

Power supply included
Power supply included
Yes
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


AC input voltage
AC input voltage
110 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
120.6 W
show more


Power consumption (max)
Power consumption (max)
320.8 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Heat dissipation
Heat dissipation
1083 BTU/h
show more

Weight & dimensions

Width
Width
441 mm
show more


Depth
Depth
487.4 mm
show more


Height
Height
43.5 mm
show more


Weight
Weight
9.8 kg
show more

Certificates

Certification
CB, cUL, LVD
show more

Logistics data

Harmonized System (HS) code
85176990
