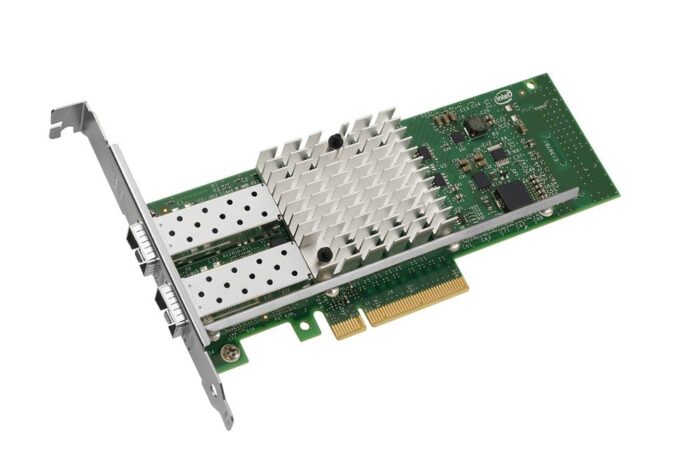

Intel E10G42BTDA Network Card Internal Ethernet 10000 Mbit/s

Name: Intel E10G42BTDA Network Card Internal Ethernet 10000 Mbit/s - Tact Technologies Solutions | טאקט | ציוד IT ותקשורות, ציוד תואם OEM ורכיבים אלקטרוניים.
Brand: OWC
Availability: InStock

The Intel E10G42BTDA is an internal network adapter featuring wired connectivity technology. It connects through a PCI Express host interface and uses an Ethernet interface. This adapter supports a maximum data transfer rate of 10,000 Mbit/s.

Ports & interfaces

Connectivity technology

Wired

Host interface

PCI Express

Interface

Ethernet

Ethernet LAN (RJ-45) ports

Fiber optic connector

SFP+

PCI version

2.0

Network

Maximum data transfer rate

10000 Mbit/s

Ethernet LAN data rates

10,1000 Mbit/s

Full duplex

Yes

Maximum operating distance

10 m

LAN controller

Intel® 82599

Design

Internal

Yes

Chipset

Intel® 82599EN

Plug and Play

Yes

Certification

FCC B, UL, CE, VCCI, BSMI, CTICK, KCC

System requirements

Compatible operating systems

https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Operational conditions

Operating temperature (T-T)

0 – 55 °C

Storage temperature (T-T)

-40 – 70 °C

Weight & dimensions

Width

145.5 mm

Logistics data

Harmonized System (HS) code

85176990

Other features

Compliance industry standards

IEEE 802.3

Cable type

SFP+ Direct Attached Twin Axial Cabling up to 10m

Market segment

Server

Export Control Classification Number (ECCN)

5A992C

Ethernet adapter ARK ID

39776

Storage Over Ethernet

iSCSI, FCoE, NFS

Processor family

500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE)

Number of QPI links

Dual

Born on date

Q3'09

Thermal Design Power (TDP)

8.6 W

Network interface card cable medium

Copper

Launch date

Q3'09

Product brief URL

https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x520-server-adapters-brief.html

Controller type

Intel® 82599 10 Gigabit Ethernet Controller

Cabling type

SFP+ Direct Attached Twin Axial Cabling up to 10m

Bracket height

Low-Profile (LP) / Full-Height (FH)

Commodity Classification Automated Tracking System (CCATS)

G135872

Last change

64826816

Product name

Intel Ethernet Converged Network Adapter X520-DA2

Status

Launched

Network interface card type

Server

Product type

Network Interface Card

PCI-SIG* SR-IOV Capable

Yes

On-chip QoS and Traffic Management

Yes

Interface type

PCIe v2.0 (5.0 GT/s)

Intel Virtual Machine Device Queues (VMDq)

Yes

Intel® Virtualization Technology (Intel® VT)

VT-c

Data transfer rate

10 Gbit/s

Ports quantity

Link/Act LED

Yes

Speed & slot width

5.0 GT/s, x8 Lane

Intel Flexible Port Partitioning

Yes

Message signal interrupt

Yes

Intel Data Direct I/O Technology

Yes

Intel Virtualization Technology for Connectivity (VT-c)

Yes

Fiber Channel over Ethernet

Yes

Intel Ethernet Power Management

Yes

iWARP/RDMA

Low halogen options available

Intelligent Offloads

Yes

Product family

Intel 10 Gigabit server adapter

Product series

500 Series Network Adapters (up to 10GbE)

Product codename

Spring Fountain
