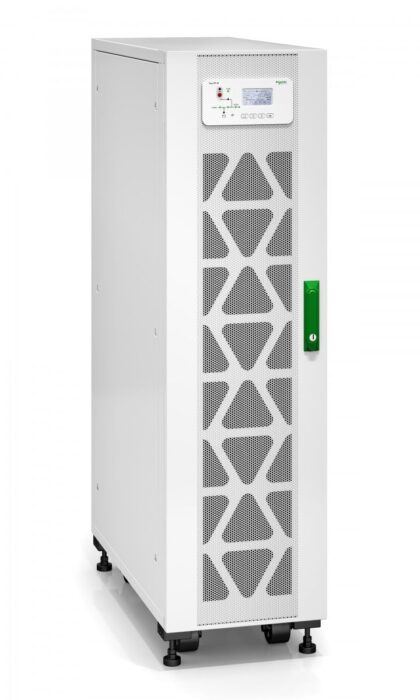

APC E3SUPS10KHB Uninterruptible Power Supply (UPS) Double-Conversion (Online) 10 kVA 10,000 W

The APC E3SUPS10KHB is a high-performance uninterruptible power supply (UPS) with a double-conversion (Online) topology. It offers a substantial output power capacity of 10 kVA and an output power of 10,000 W, ensuring reliable backup power for critical systems. This UPS uses sealed lead acid (VRLA) battery technology, operating at a battery voltage of 240 V. Its tower form factor is complemented by a sleek white color. The unit has an IP20 International Protection code, indicating its level of protection against solid objects. It comes with several certifications, including CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, and WEEE REACH, demonstrating compliance with international safety and environmental standards. The dimensions of the product are 380 mm in width, 928 mm in depth, and 1400 mm in height.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
10 kVA
show more


Output power
Output power
10000 W
show more


Waveform
Pure sine
show more


Input operation voltage (min)
Input operation voltage (min)
304 V
show more


Input operation voltage (max)
Input operation voltage (max)
415 V
show more


Input frequency
Input frequency
45/65 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
380 V
show more


Output operation voltage (max)
Output operation voltage (max)
477 V
show more


Output frequency
50/60 Hz
show more


Maximum current
Maximum current
18 A
show more


Number of input phases
3
show more


Number of output phases
3
show more


Efficiency
94.8%
show more


Input power factor
0.99
show more


ECO mode
Yes
show more


Output voltage Total Harmonic Distortion (THD)
3%
show more


Noise level
Noise level
60 dB
show more

Ports & interfaces

Parallel ports quantity
Parallel ports quantity
1
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery voltage
Battery voltage
240 V
show more

Design

Form factor
Form factor
Tower
show more


Product colour
Product colour
White
show more


LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 40 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 999.9 m
show more


Non-operating altitude
0 – 15000 m
show more

Packaging content

Quick installation guide
Yes
show more

Certificates

Certification
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
REACH
show more

Weight & dimensions

Width
Width
380 mm
show more


Depth
Depth
928 mm
show more


Height
Height
1400 mm
show more


Weight
Weight
112 kg
show more

Packaging data

Package width
Package width
563 mm
show more


Package depth
Package depth
1014 mm
show more


Package height
Package height
1640 mm
show more


Package weight
Package weight
145 kg
show more

Logistics data

Harmonized System (HS) code
85078000
show more

Other features

Nominal input voltage
Nominal input voltage
400 V
show more


Nominal output voltage
Nominal output voltage
400 V
show more
