APC Easy 3S Double-conversion Online 15 kVA 15000 W

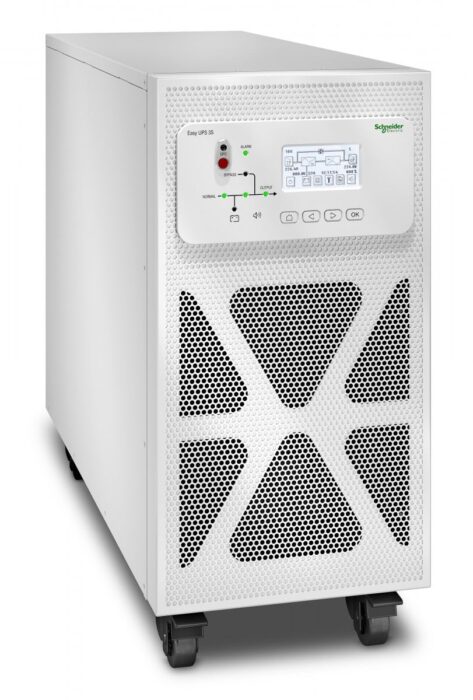

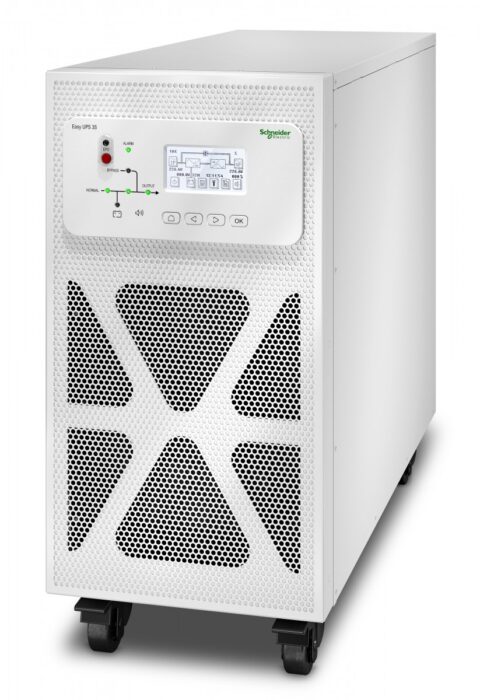

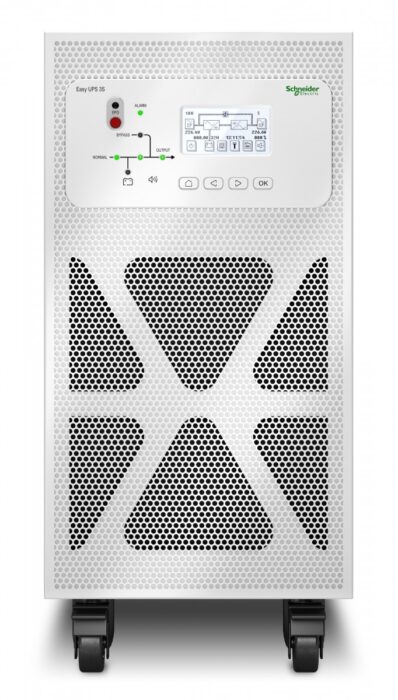

Introducing the APC Easy 3S, a high-performance Uninterruptible Power Supply (UPS) system. This advanced unit utilizes double-conversion (online) topology, providing a superior level of power protection with an output power capacity of 15 kVA and an output power of 15,000 watts. The UPS is designed in a tower form factor and features a sleek white color, making it a functional and aesthetically pleasing addition to any environment.

The APC Easy 3S has an International Protection (IP) code of IP20, ensuring protection against certain levels of dust and touch. It holds multiple certifications, including CE, EAC, and various IEC standards (62040-1-1, 62040-2, 62040-3, 62040-4), as well as ISTA 2B, RCM, and WEEE, assuring its quality and compliance with international regulations.

In terms of dimensions, the unit measures 250 mm in width, 700 mm in depth, and 530 mm in height. When packaged, its dimensions are 400 mm in width, 857 mm in depth, and 772 mm in height, ensuring secure and efficient transport.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
15 kVA
show more


Output power
Output power
15000 W
show more


Waveform
Pure sine
show more


Input operation voltage (min)
Input operation voltage (min)
304 V
show more


Input operation voltage (max)
Input operation voltage (max)
477 V
show more


Input frequency
Input frequency
45/65 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
380 V
show more


Output operation voltage (max)
Output operation voltage (max)
415 V
show more


Output frequency
50/60 Hz
show more


Maximum current
Maximum current
28 A
show more


Number of input phases
3
show more


Number of output phases
3
show more


Input power factor
0.99
show more


Crest factor
3:1
show more


Overload capacity (10 minutes)
125%
show more


Overload capacity (1 minute)
150%
show more


Output voltage Total Harmonic Distortion (THD)
3%
show more


Input current Total Harmonic Distortion (THD)
3%
show more


Noise level
Noise level
60 dB
show more


Power protection features
Power protection features
Overload
show more

Design

Form factor
Form factor
Tower
show more


Product colour
Product colour
White
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 40 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 984.3 m
show more


Non-operating altitude
0 – 14763.6 m
show more

Packaging content

Quick installation guide
Yes
show more

Certificates

Certification
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
show more

Weight & dimensions

Width
Width
250 mm
show more


Depth
Depth
700 mm
show more


Height
Height
530 mm
show more


Weight
Weight
36 kg
show more

Packaging data

Package width
Package width
400 mm
show more


Package depth
Package depth
857 mm
show more


Package height
Package height
772 mm
show more


Package weight
Package weight
50 kg
show more

Logistics data

Harmonized System (HS) code
85078000
show more

Other features

Output voltage
400 V
show more
