APC Easy 3S Double-conversion Online 20 kVA 20000 W

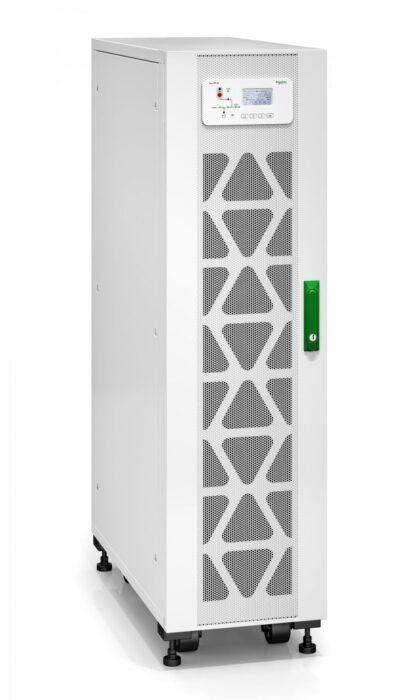

The APC Easy 3S is a high-performance uninterruptible power supply (UPS) featuring a double-conversion (Online) topology. It boasts an output power capacity of 20 kVA and can deliver up to 20000 W of power. The UPS utilizes sealed lead acid (VRLA) battery technology with a battery voltage of 220 V. Designed in a tower form factor, it comes in a sleek white color. The UPS is equipped with an LED display for easy monitoring and management. It adheres to various compliance certificates such as RoHS and holds certifications including CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, and REACH. The unit measures 380 mm in width, 928 mm in depth, and 1400 mm in height.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
20 kVA
show more


Output power
Output power
20000 W
show more


Waveform
Pure sine
show more


Input operation voltage (min)
Input operation voltage (min)
304 V
show more


Input operation voltage (max)
Input operation voltage (max)
477 V
show more


Input frequency
Input frequency
45/65 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
380 V
show more


Output operation voltage (max)
Output operation voltage (max)
415 V
show more


Output frequency
50/60 Hz
show more


Maximum current
Maximum current
37 A
show more


Number of input phases
3
show more


Number of output phases
3
show more


Input power factor
0.99
show more


Output voltage Total Harmonic Distortion (THD)
3%
show more


Input current Total Harmonic Distortion (THD)
3%
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery voltage
Battery voltage
220 V
show more


Number of batteries supported
Number of batteries supported
3
show more

Design

Form factor
Form factor
Tower
show more


Product colour
Product colour
White
show more


Display type
Display type
LED
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 40 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 999.9 m
show more


Non-operating altitude
0 – 15000 m
show more

Packaging content

Quick installation guide
Yes
show more

Certificates

Compliance certificates
RoHS
show more


Certification
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
show more

Weight & dimensions

Width
Width
380 mm
show more


Depth
Depth
928 mm
show more


Height
Height
1400 mm
show more


Weight
Weight
122 kg
show more

Packaging data

Package width
Package width
563 mm
show more


Package depth
Package depth
1014 mm
show more


Package height
Package height
1640 mm
show more


Package weight
Package weight
158 kg
show more

Logistics data

Harmonized System (HS) code
85078000
show more

Other features

Output voltage
400 V
show more
