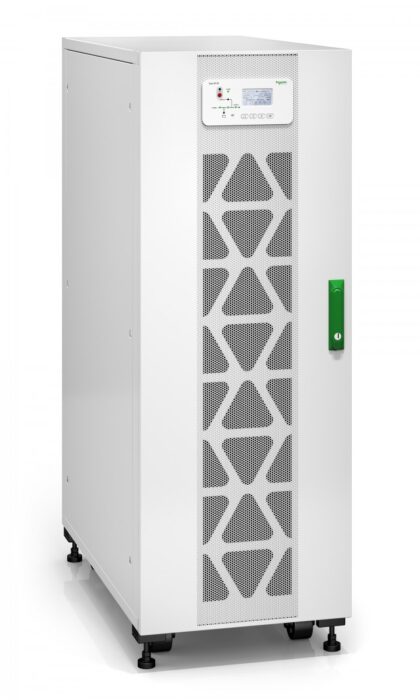

APC Easy 3S Double-conversion Online 30 kVA 30000 W

The APC Easy 3S is a double-conversion (online) UPS providing an output power capacity of 30 kVA and an output power of 30,000 W. It utilizes sealed lead acid (VRLA) battery technology with a battery voltage of 240 V. The UPS is designed in a tower form factor and comes in a white color with active cooling to maintain optimal operating temperatures. This product meets various compliance certifications, including RoHS, CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, and REACH. It has dimensions of 500 mm in width, 969 mm in depth, and 1400 mm in height.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
30 kVA
show more


Output power
Output power
30000 W
show more


Input operation voltage (min)
Input operation voltage (min)
304 V
show more


Input operation voltage (max)
Input operation voltage (max)
477 V
show more


Input frequency
Input frequency
45/65 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
380 V
show more


Output operation voltage (max)
Output operation voltage (max)
415 V
show more


Output frequency
50/60 Hz
show more


Maximum current
Maximum current
55 A
show more


Number of input phases
3
show more


Number of output phases
3
show more


Efficiency
95%
show more


Input power factor
0.99
show more


ECO mode
Yes
show more


Emergency Power Off (EPO)
Yes
show more


Output voltage Total Harmonic Distortion (THD)
3%
show more


Input current Total Harmonic Distortion (THD)
3%
show more


Noise level
Noise level
63 dB
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery voltage
Battery voltage
240 V
show more

Design

Form factor
Form factor
Tower
show more


Cooling type
Cooling type
Active
show more


Product colour
Product colour
White
show more


LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 40 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 999.9 m
show more


Non-operating altitude
0 – 15000 m
show more

Certificates

Compliance certificates
RoHS
show more


Certification
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
REACH
show more

Weight & dimensions

Width
Width
500 mm
show more


Depth
Depth
969 mm
show more


Height
Height
1400 mm
show more


Weight
Weight
152 kg
show more


Battery width
68.3 cm
show more


Battery depth
111.4 cm
show more


Battery height
164 cm
show more


Battery weight
190 kg
show more

Logistics data

Harmonized System (HS) code
85078000
