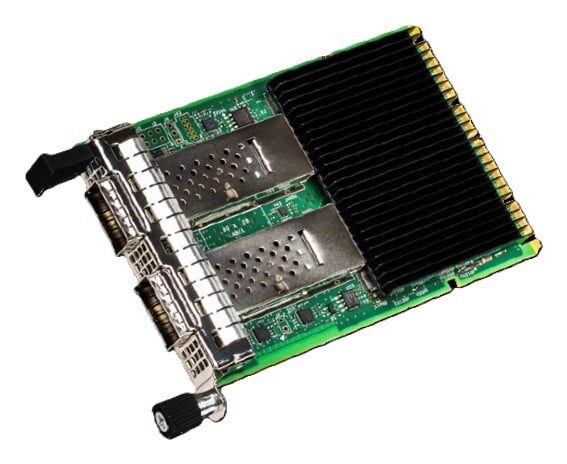

Intel Ethernet Network Adapter E810-CQDA2 OCP 3.0 QSFP28 x 2

The Intel E810CQDA2OCPV3 is an internal connectivity device that utilizes wired technology. It features a host interface of PCI Express and a fiber interface. The device supports a maximum data transfer rate of 100,000 Mbit/s. It comes in a combination of black, green, and grey colors.

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Host interface
Host interface
PCI Express
show more


Interface
Interface
Fiber
show more


Fiber ports quantity
Fiber ports quantity
2
show more


Fiber optic connector
Fiber optic connector
QSFP28
show more


PCI version
4.0
show more

Network

Maximum data transfer rate
Maximum data transfer rate
100000 Mbit/s
show more


Networking standards
Networking standards
IEEE 1588
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
100 Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
1000,10000,25000,50000,100000 Mbit/s
show more


LAN controller
Intel E810
show more

Design

Component for
Component for
Server
show more


Product colour
Product colour
Black, Green, Grey
show more


Internal
Internal
Yes
show more


LED indicators
Activity, Speed
show more

System requirements

Compatible operating systems
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 65 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more

Weight & dimensions

Width
Width
115 mm
show more


Depth
Depth
76 mm
show more

Logistics data

Harmonized System (HS) code
85176990
show more

Other features

Cable type
Cable type
QSFP28 ports – DAC, Optics, AOC's
show more


Network interface card cable medium
Copper
show more


Launch date
Q3'20
show more


Storage Over Ethernet
iSCSI, NFS
show more


Network interface card type
Server
show more


Status
Launched
show more


Bracket height
OCP 3.0
show more


Commodity Classification Automated Tracking System (CCATS)
NA
show more


Export Control Classification Number (ECCN)
5A991
show more


Processor family
Processor family
800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE)
show more


Intel Virtualization Technology for Connectivity (VT-c)
Intel Virtualization Technology for Connectivity (VT-c)
Yes
show more


On-chip QoS and Traffic Management
Yes
show more


PCI-SIG* SR-IOV Capable
Yes
show more


Intel Virtual Machine Device Queues (VMDq)
Yes
show more


Intel Data Direct I/O Technology
Yes
show more


Intel Flexible Port Partitioning
Yes
show more


iWARP/RDMA
Yes
show more


Intelligent Offloads
Yes
show more


Speed & slot width
16.0 GT/s, x16 Lane
show more


Product series
800 Series Network Adapters (up to 100GbE)
