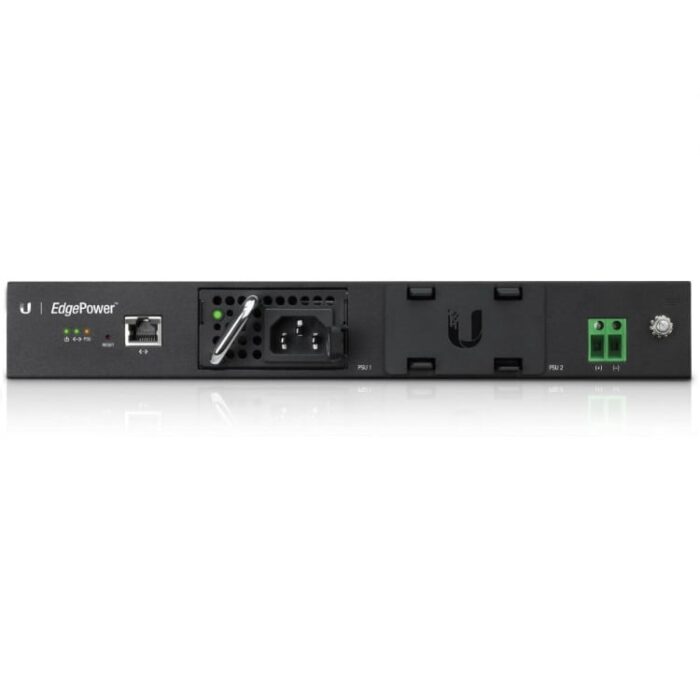

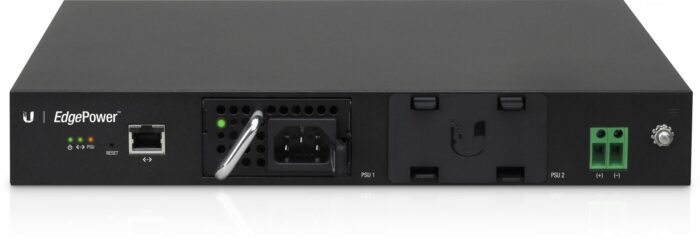

The Ubiquiti EP-54V-150W power supply unit, part of the EdgePower series, is a reliable and high-quality component designed to connect EdgeMax routers and switches, ensuring consistent power delivery.
This device provides an output power of 150 watts, and with an additional adapter, it can be configured to supply up to 300 watts.
Constructed from durable, high-quality materials, this modular power supply unit operates effectively within a temperature range of 0 to 40 degrees Celsius.
Key features include practical usage, innovative construction, a high-quality design, and the capability to connect a second unit.
For further information, consult the manufacturer's documentation or read the manual.
| Specifications | |
|---|---|
| Model | EP-24V-72W |
| Dimensions | 192 x 43.7 x 115 mm (7.6 x 1.7 x 4.5") |
| Weight | 650 g (1.4 lb) |
| Networking interface | (2) 10/100 MbE RJ45 ports |
| Management interface | Ethernet In-Band |
| Power method | 100-240V AC, 50-60 Hz, universal input DC terminal block |
| Power supply | AC input: AC/DC 72W Battery input: 12V DC lead acid battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| Max. power consumption | System: 2W Output: 72W |
| PoE output | (2) 24 VDC passive PoE (Pins 4, 5+; 7, 😎 |
| DC output | 24V, 3A |
| LEDs | System: status RJ45 data ports: PoE; link/activity |
| ESD/EMP protection | Air: ± 12kV, contact: ± 12kV |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Specifications | |
| Model | EP-54V-72W |
| Dimensions | 115 x 192 x 43.7 mm (4.5 x 7.6 x 1.7") |
| Weight | 650 g (1.4 lb) |
| Networking interface | (2) 10/100 MbE RJ45 ports |
| Management interface | Ethernet In-Band |
| Power method | AC input: 100-240V AC, 50-60 Hz, universal input Battery input: DC terminal block |
| Power supply | AC input: AC/DC 72W Battery input: 12V DC lead acid battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| Max. power consumption | System: 2W Output: 72W |
| PoE output | (2) 54V DC passive PoE (Pins 4, 5+; 7, 😎 |
| DC output | 54V, 1.3A |
| LEDs | System: status RJ45 data ports: PoE; link/activity |
| ESD/EMP protection | Air: ± 12kV, contact: ± 12kV |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Specifications | |
| Model | EP-54V-150W |
| Dimensions | 299.8 x 286.9 x 42.6 mm (11.9 x 11.3 x 1.7") |
| Weight | 2.7 kg (5.95 lb) |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Management interface | Ethernet In-Band |
| Power method | 100-240V AC, 50-60 Hz, universal input |
| Power supply | 54V, 150W AC/DC, model EP-54V-150W-AC Installed in PSU 1 |
| Max. power output PSU | 150W (1 PSU module) 300W (2 PSU modules @ 150W each) |
| ESD/EMP protection | Air ± 24kV; contact ± 24kV |
| LEDs | Power: system On/Off Ethernet: management port link PSU: PSU1+PSU2, PSU1/PSU2 |
| Mounting | Rack-mount, 1U high |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
