The Ubiquiti EdgePower is a dependable power supply designed to provide stable and uninterrupted power to your network infrastructure. Known for its versatility and reliability, it is the ideal solution for professional network installations.
This black power supply is crafted to comprehensively support your network. It is equipped with LEDs to indicate connection status and offers PoE support, ensuring easy control over the device's operation.
Featuring an RJ-45 interface and Fast Ethernet support, the Ubiquiti EdgePower guarantees high-speed data transfer across the LAN, achieving data transfer speeds of 10/100 Mbit/s. This ensures smooth and seamless network performance.
The power supply operates over a wide AC input voltage range of 100 to 240 V, making it compatible with different voltage standards worldwide. Its 54 DC operating voltage provides stable power for all connected devices.
| Specifications | |
|---|---|

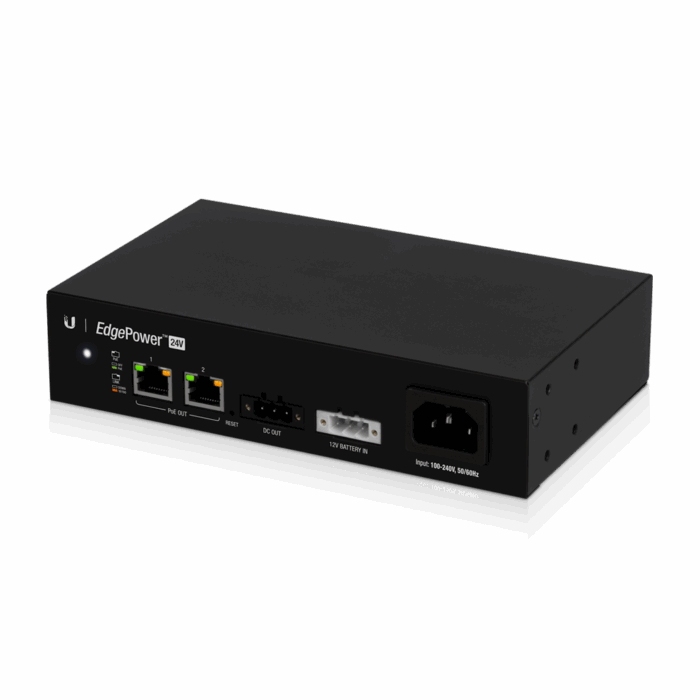

| Model | EP-24V-72W |
| Dimensions | 192 x 43.7 x 115 mm (7.6 x 1.7 x 4.5") |
| Weight | 650 g (1.4 lb) |
| Networking interface | (2) 10/100 MbE RJ45 ports |
| Management interface | Ethernet In-Band |
| Power method | 100-240V AC, 50-60 Hz, universal input DC terminal block |
| Power supply | AC input: AC/DC 72W Battery input: 12V DC lead acid battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| Max. power consumption | System: 2W Output: 72W |
| PoE output | (2) 24 VDC passive PoE (Pins 4, 5+; 7, 😎 |
| DC output | 24V, 3A |
| LEDs | System: status RJ45 data ports: PoE; link/activity |
| ESD/EMP protection | Air: ± 12kV, contact: ± 12kV |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Specifications | |

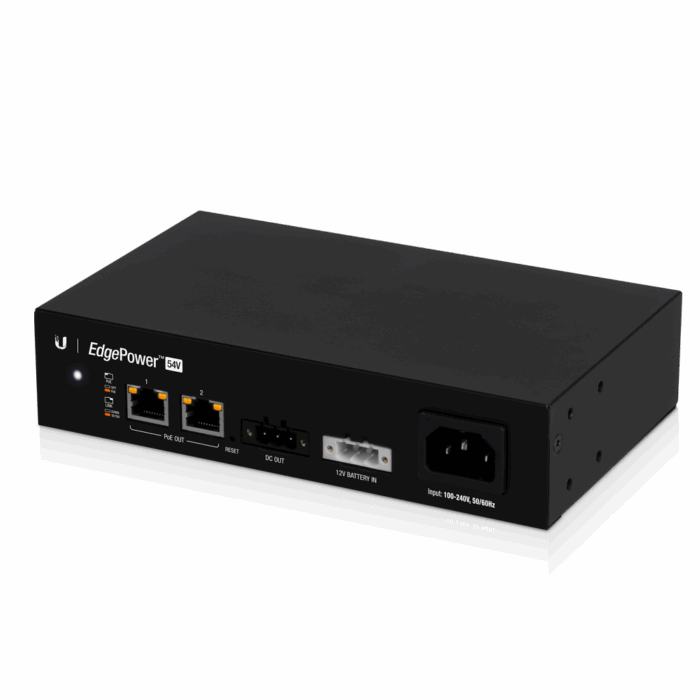

| Model | EP-54V-72W |
| Dimensions | 115 x 192 x 43.7 mm (4.5 x 7.6 x 1.7") |
| Weight | 650 g (1.4 lb) |
| Networking interface | (2) 10/100 MbE RJ45 ports |
| Management interface | Ethernet In-Band |
| Power method | AC input: 100-240V AC, 50-60 Hz, universal input Battery input: DC terminal block |
| Power supply | AC input: AC/DC 72W Battery input: 12V DC lead acid battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| Max. power consumption | System: 2W Output: 72W |
| PoE output | (2) 54V DC passive PoE (Pins 4, 5+; 7, 😎 |
| DC output | 54V, 1.3A |
| LEDs | System: status RJ45 data ports: PoE; link/activity |
| ESD/EMP protection | Air: ± 12kV, contact: ± 12kV |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Specifications | |
| Model | EP-54V-150W |
| Dimensions | 299.8 x 286.9 x 42.6 mm (11.9 x 11.3 x 1.7") |
| Weight | 2.7 kg (5.95 lb) |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Management interface | Ethernet In-Band |
| Power method | 100-240V AC, 50-60 Hz, universal input |
| Power supply | 54V, 150W AC/DC, model EP-54V-150W-AC Installed in PSU 1 |
| Max. power output PSU | 150W (1 PSU module) 300W (2 PSU modules @ 150W each) |
| ESD/EMP protection | Air ± 24kV; contact ± 24kV |
| LEDs | Power: system On/Off Ethernet: management port link PSU: PSU1+PSU2, PSU1/PSU2 |
| Mounting | Rack-mount, 1U high |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
