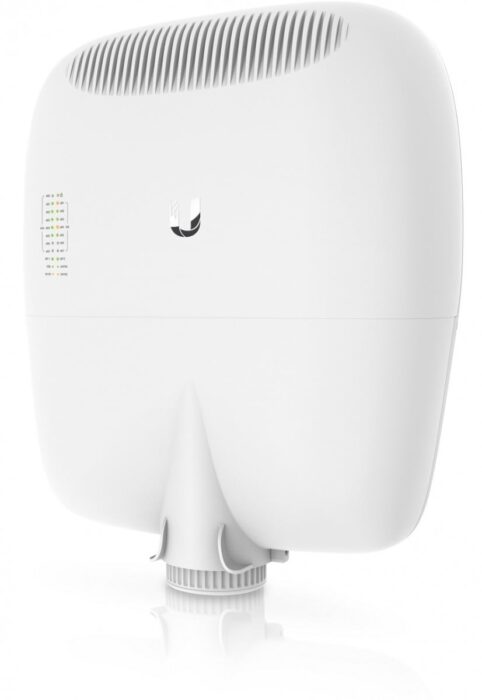

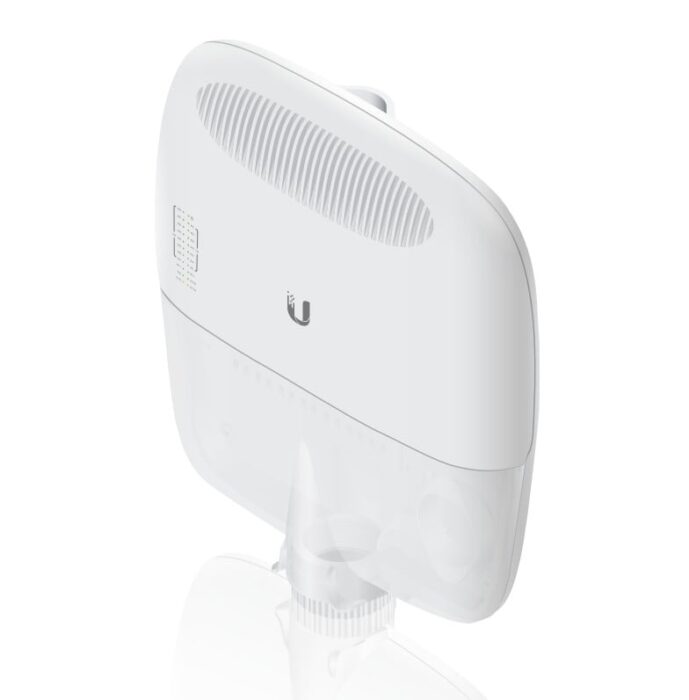

The Ubiquiti EP-R8 is part of the EdgeMax series, known for its innovative and reliable devices. This intelligent EdgePoint R8 features six Ethernet RJ-45 ports and two RJ45/SFP combo ports. It's renowned for its excellent price-to-quality ratio, effectively combining high router capacity with durable construction and passive PoE support.
High quality: The device effectively mitigates risks related to electrostatic discharges and interference, ensuring high-quality long-distance connections.
Compact size: Its compact, single-controller design eliminates clutter, tangled cables, and the need for expensive racks and installations.
Construction: The improved construction enhances the device's resistance to adverse weather conditions such as wind, rain, and snow.
Key Features:
– Router capabilities
– Non-manageable switch
– 6 Gigabit Ethernet ports
– 2 SFP Combo ports
– PoE support
– Durable construction
– Reliability
Comparison:
EP-R6: Function – Router; 5 Gigabit RJ45 Ports; 1 SFP Port; Power Input – (1) DC Terminal Block or (1) 24V, 4-Pair; PoE Output – (5) 24V, 2-Pair
EP-R8: Function – Router; 6+2* Gigabit RJ45 Ports; 2* SFP Ports; Power Input – (1) DC Terminal Block or (2) 54V, 4-Pair; PoE Output – (2) 54/24V, 4-Pair (5) 24V, 2-Pair
EP-S16: Function – Switch; 16 Gigabit RJ45 Ports; No SFP Ports; 2 SFP+ Ports; Power Input – (1) DC Terminal Block or (2) 54V, 4-Pair; PoE Output – (4) 54/24V, 4-Pair (12) 802.3af/at or 24V, 2-Pair
For more detailed information, please refer to the manufacturer's documentation and manual. Specifications are available upon request.
| Mechanical | |
|---|---|
| Dimensions | Without wall-mount: 326.6 x 382.7 x 88.8 mm (12.9 x 15.1 x 3.5") With wall-mount: 326.6 x 382.7 x 105.5 mm (12.9 x 15.1 x 4.2") |
| Weight | Without wall-mount: 3.4 kg (7.5 lb) With wall-mount: 3.8 kg (8.4 lb) |
| Enclosure material | Diecast aluminum alloy, UV-resistant polycarbonate |
| Mount | Pole/wall mount |
| Wind loading | 153 N at 200 km/h (34 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Processor | Dual-core 600 MHz, MIPS64 with hardware acceleration for packet processing |
| System memory | 2 GB DDR3-1600 RAM |
| Code storage | 4 GB |
| Networking interface | (1) RJ45 serial port (1) RJ45 PoE In port (6) 10/100/1000 RJ45 ports (2) 10/100/1000 RJ45/SFP combination ports |
| Power method* | (1) DC terminal block (2) RJ45 (PoE In and eth0) 54V DC, 6A input *Self-correcting polarity protection on DC terminal block only, diode red Protection on all power inputs. |
| Power supply | Min. 54V / 0.8A (Excludes PoE output) |
| Passive PoE input* | (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) passive PoE, eth0 and PoE In *PoE In is DC only, no data. |
| Passive PoE output | (2) 54V or 24V / 1.4A, 4-pair (+1, 2, 4, 5; -3, 6, 7, 8) passive PoE, eth1 to eth2 (5) 24V / 0.7A, 2-pair (+4, 5; -7, 8) passive PoE, eth3 to eth7 |
| Power monitoring | (1) DC terminal block, input power (2) RJ45, PoE In and eth0, input power |
| Supported voltage range | 56–42V DC |
| Max. power consumption | 40W (Excludes PoE output) |
| Button | Factory reset |
| LEDs | System: Power Data ports: speed/link/activity, PoE SFP ports: speed/link/activity |
| Ambient operating temperature | -40 to 65° C (-40 to 149° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
