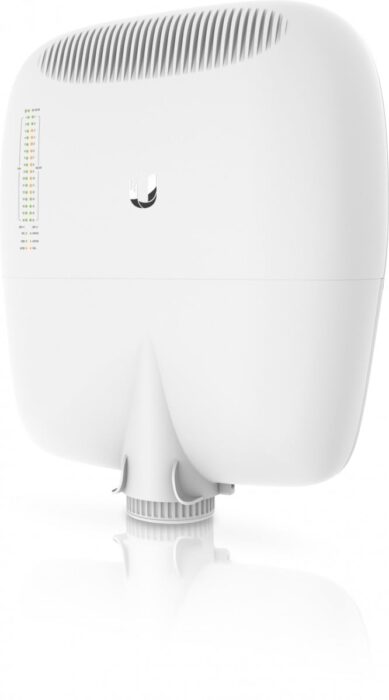

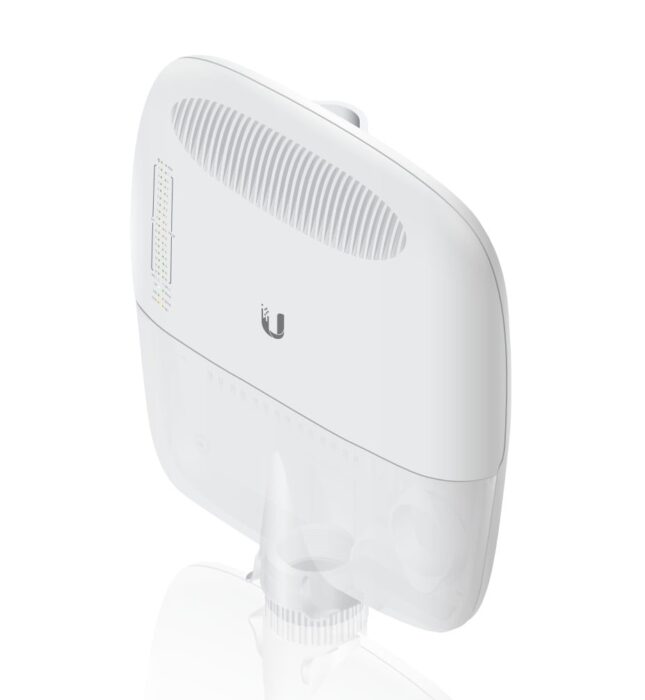

The Ubiquiti EP-S16 is a WISP control point designed for demanding users. Part of the comprehensive EdgeMAX platform, this device seamlessly combines the functionality of a router with data transmission through fiber connectivity and various power options. It is outfitted with 16 Ethernet RJ-45 ports and 2 SFP+ ports, noted for its high quality and reliability.
Innovative features include the FiberProtect function, which reduces the risk of breakdowns associated with electrostatic discharges and enhances signal quality. The device maintains system organization and lowers maintenance costs. Its robust construction makes it resistant to harsh weather conditions like wind, rain, and snow.
Efficiency is enhanced through additional cable shielding, while layer-2 aggregation ensures both reliability and capacity.
Key features include switch functionalities, multilayer switching capability, 16 Ethernet ports, 2 installed SFP+ modules, rack installation capability, PoE support, durable construction, reliable performance, and a modern design.
Comparison with other models:
1. EP-R6
– Function: Router
– Gigabit RJ45 Ports: 5
– SFP Ports: 1
– SFP+ Ports: Not Applicable
– Power Input: (1) DC Terminal Block or (1) 24V, 4-Pair
– PoE Output: (5) 24V, 2-Pair
2. EP-R8
– Function: Router
– Gigabit RJ45 Ports: 6+2*
– SFP Ports: 2*
– SFP+ Ports: Not Applicable
– Power Input: (1) DC Terminal Block or (2) 54V, 4-Pair
– PoE Output: (2) 54/24V, 4-Pair and (5) 24V, 2-Pair
3. EP-S16
– Function: Switch
– Gigabit RJ45 Ports: 16
– SFP Ports: Not Applicable
– SFP+ Ports: 2
– Power Input: (1) DC Terminal Block or (2) 54V, 4-Pair
– PoE Output: (4) 54/24V, 4-Pair and (12) 802.3af/at or 24V, 2-Pair
For detailed manufacturer documentation and manuals, please refer to the provided resources.
| Mechanical | |
|---|---|
| Dimensions | Without wall-mount: 326.6 x 382.7 x 88.8 mm (12.9 x 15.1 x 3.5") With wall-mount: 326.6 x 382.7 x 105.5 mm (12.9 x 15.1 x 4.2") |
| Weight | Without wall-mount: 3.4 kg (7.5 lb) With wall-mount: 3.8 kg (8.4 lb) |
| Enclosure material | Diecast aluminum alloy, UV-resistant polycarbonate |
| Mount | Pole/wall mount |
| Wind loading | 153 N at 200 km/h (34 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |

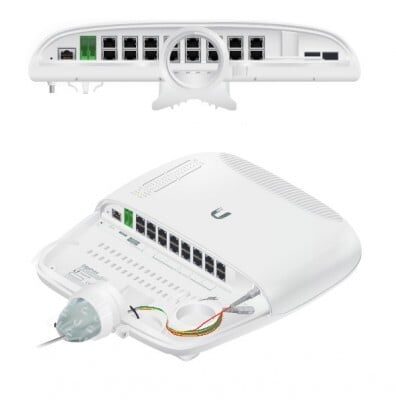

| Networking interface | (1) RJ45 serial port (16) 10/100/1000 RJ45 ports (2) 1/10 Gbps SFP+ ports |
| Power method* | (1) DC terminal block 54V DC, 6A input *Self-correcting polarity protection on DC terminal block only, diode red protection on all power inputs. |
| Power supply | Min. 54V / 0.8A (Excludes PoE output) |
| Passive PoE input* | (2) 54V / 1.5A, 4-pair (+1, 2, 4, 5; – 3, 6, 7, 8) passive PoE, ports 1 and 2 *Do NOT configure port 1 or 2 in PoE output mode if you are using PoE input power sources. |
| Passive PoE output | (4) 54V or 24V /1.4A, 4-pair (+1, 2, 4, 5; – 3, 6, 7, 8) passive PoE, ports 1 to 4 (12) PoE/PoE+ or 24V/0.7A, 2-pair (+ 4, 5; – 7, 8) passive PoE, ports 5 to 16 |
| Power monitoring | (1) DC terminal block, input power (2) RJ45, ports 1 and 2, PoE input or output power (14) RJ45, ports 3 to 16, PoE output power |
| Supported voltage range | 42–56V DC (-48V is NOT supported) |
| Max. power consumption | 40W (Excludes PoE output) |
| Button | Factory reset |
| LEDs | System: power RJ45 ports: speed/link/lctivity, PoE SFP ports: speed/link/activity |
| Ambient operating temperature | -40 to 65° C (-40 to 149° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
