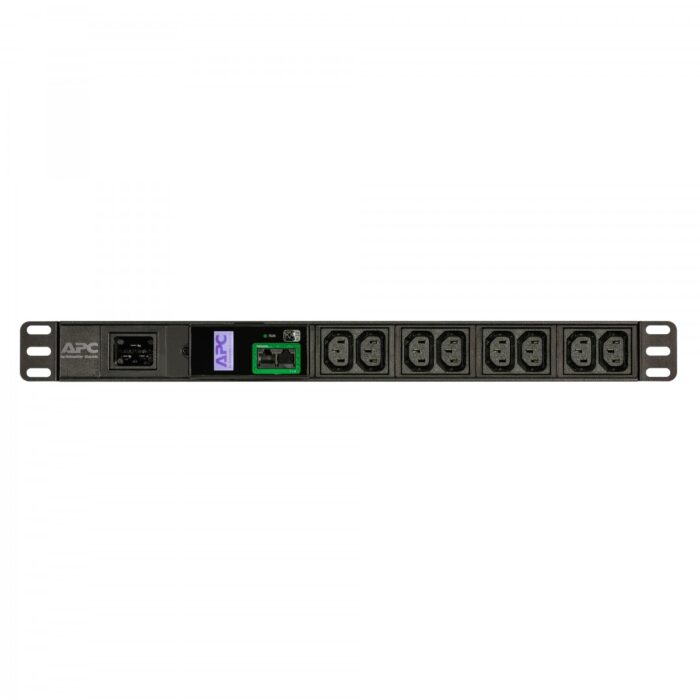

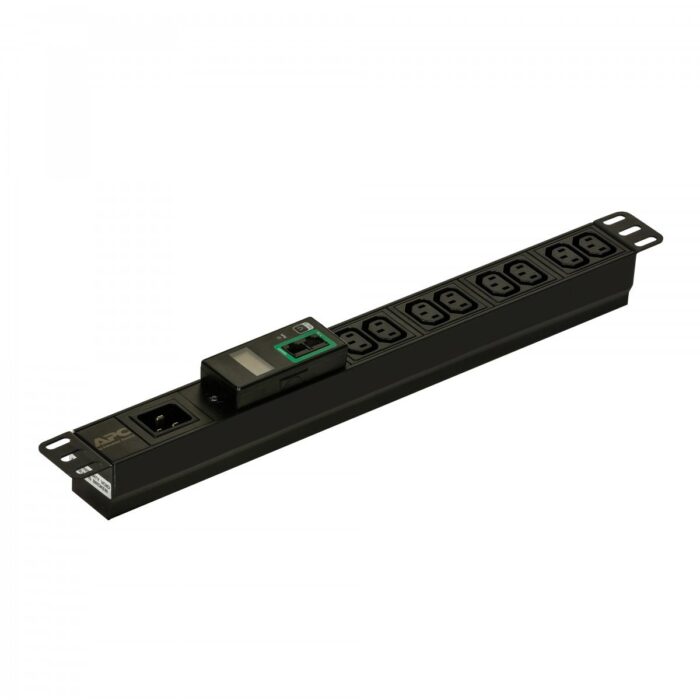

Power Strip EPDU1016M PDU Easy Metered 1U, 16A, 8xC13

The APC Easy Rack PDU is a metered power distribution unit designed for use in server racks. It has a rack capacity of 1U and is suitable for single-phase power distribution. With a power capacity of 3.7kW and a nominal input voltage range of 200/208/230V, this PDU provides reliable power to your equipment at a maximum current of 16A. It features eight AC outlets, all of which are C13 couplers, and comes with a C20 coupler power plug. The power cord measures 2.5 meters in length. This unit allows for monitoring of current, power, and voltage, and operates at an AC input frequency of 50 to 60 Hz.

Design

PDU types
PDU types
Metered
show more


Type
Type
Single-phase
show more


Rack capacity
Rack capacity
1U
show more


Mounting
Mounting
Horizontal
show more


Housing material
Housing material
Aluminium
show more


Product colour
Product colour
Black
show more

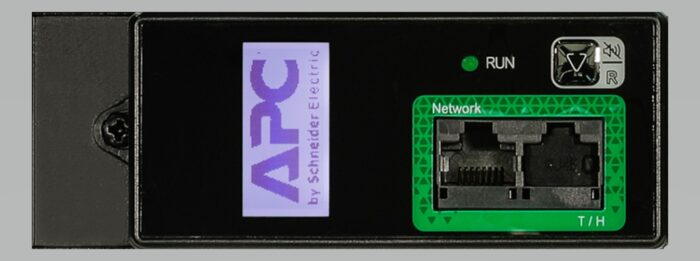

Display
Display
LCD
show more


On/off switch
On/off switch
No
show more

Ports & interfaces

AC outlets quantity
AC outlets quantity
8 AC outlet(s)
show more


Power plug
Power plug
C20 coupler
show more


AC outlet types
AC outlet types
C13 coupler
show more

Features

Daisy chain
No
show more


LED indicators
Yes
show more


Cable length
Cable length
2.5 m
show more

Management features

Monitoring
Current, Power, Voltage
show more


Firmware upgradeable
Yes
show more

Power

Nominal input voltage
Nominal input voltage
200/208/230 V
show more


AC input frequency
50 – 60 Hz
show more


Maximum current
Maximum current
16 A
show more


Nominal output voltage
Nominal output voltage
208/230 V
show more


Load capacity
3680 VA
show more


Maximum input current per phase
16 A
show more


Maximum power
Maximum power
3680 W
show more

Certificates

Compliance certificates
RoHS
show more


Certification
CE, TUV
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-25 – 65 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
5 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Weight & dimensions

Width
Width
482 mm
show more


Depth
Depth
44 mm
show more


Height
Height
44 mm
show more


Weight
Weight
700 g
show more

Packaging content

Manual
Yes
show more

Packaging data

Package weight
Package weight
1.4 kg
show more


Package width
Package width
560 mm
show more


Package depth
Package depth
150 mm
show more


Package height
Package height
80 mm
show more

Logistics data

Total carbon footprint (kg of CO2e)
Total carbon footprint (kg of CO2e)
5177.36
show more
