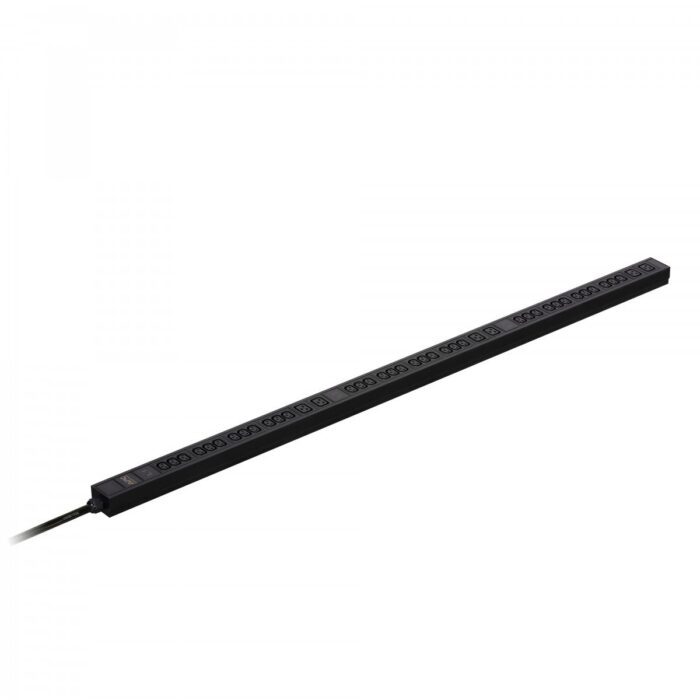

APC EPDU1216B Easy PDU Basic Zero U 11 kW 230V 36 C13 & 6 C19 IEC309

The APC Easy Rack PDU is a basic power distribution unit designed for rack-mounted systems. It offers a 0U form factor and supports three-phase power distribution. The unit provides a total power capacity of 11kW at 230V, with a maximum current of 16A. It features 42 AC outlets, which include 36 C13 couplers and 6 C19 couplers, and connects via an IEC 60309 3P+N+PE power inlet. The PDU comes with a 2.5-meter cable and is designed to operate within a nominal input voltage of 400V and an AC input frequency range of 50 to 60 Hz. It holds certifications from CE and TUV.

Design

PDU types
PDU types
Basic
show more


Type
Type
Three-phase
show more


Rack capacity
Rack capacity
0U
show more


Mounting
Mounting
Vertical
show more


Housing material
Housing material
Aluminium
show more


Product colour
Product colour
Black
show more


On/off switch
On/off switch
No
show more

Ports & interfaces

AC outlets quantity
AC outlets quantity
42 AC outlet(s)
show more


Power plug
Power plug
IEC 60309
show more


AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more

Features

Cable length
Cable length
2.5 m
show more

Power

Nominal input voltage
Nominal input voltage
400 V
show more


AC input frequency
50 – 60 Hz
show more


Maximum current
Maximum current
16 A
show more


Nominal output voltage
Nominal output voltage
230 V
show more


Load capacity
11000 VA
show more


Maximum input current per phase
16 A
show more


Maximum power
Maximum power
11000 W
show more

Certificates

Certification
CE, TUV
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-25 – 65 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
5 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Weight & dimensions

Width
Width
62 mm
show more


Depth
Depth
44 mm
show more


Height
Height
1506 mm
show more


Weight
Weight
3.08 kg
show more

Packaging content

Manual
Yes
show more

Packaging data

Package weight
Package weight
4.28 kg
show more


Package width
Package width
160 mm
show more


Package depth
Package depth
110 mm
show more


Package height
Package height
1660 mm
show more

Logistics data

Total carbon footprint (kg of CO2e)
Total carbon footprint (kg of CO2e)
78.59
show more
