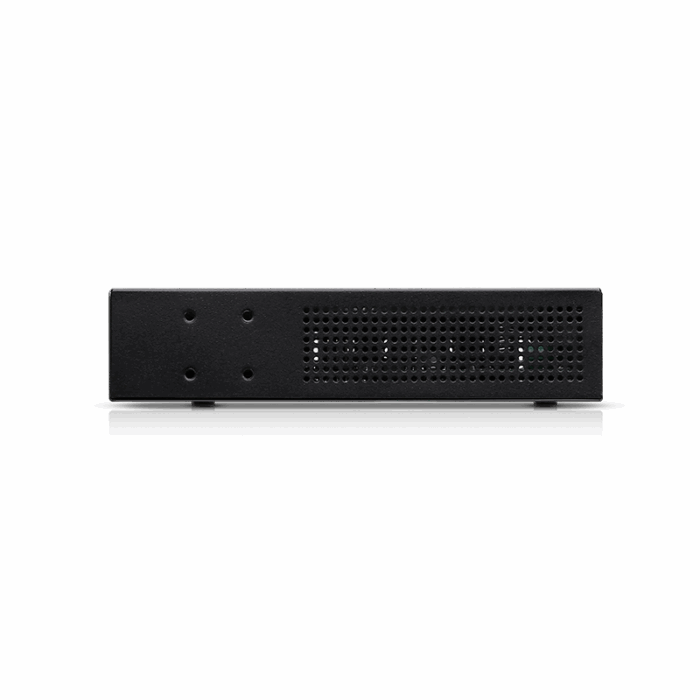

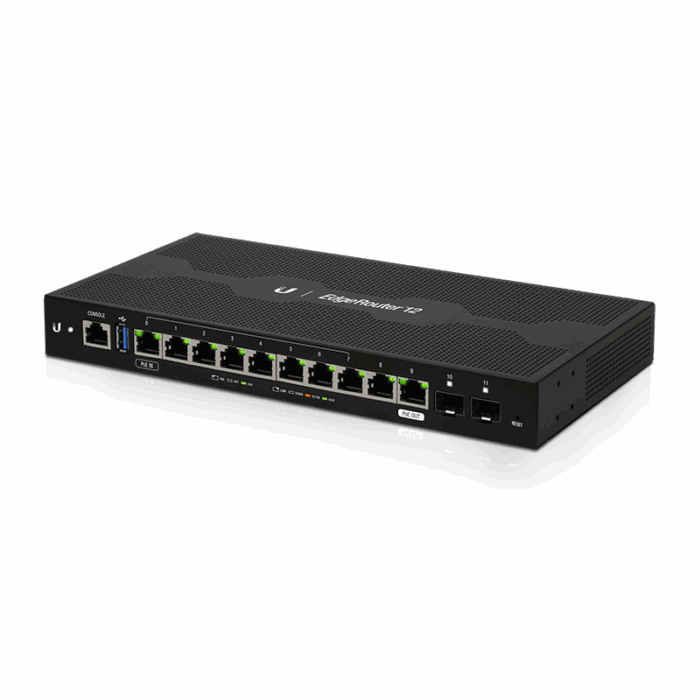

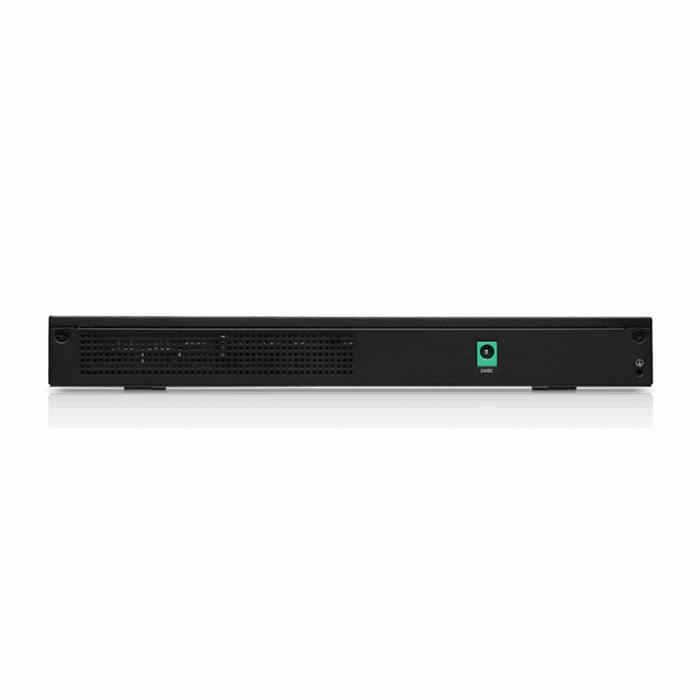

Product Description: Ubiquiti Networks EdgeRouter ER-12

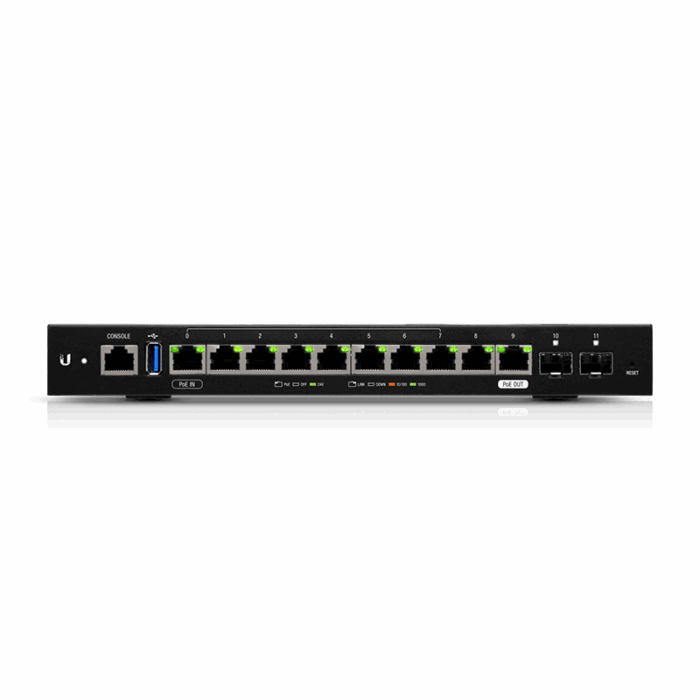

The Ubiquiti Networks EdgeRouter ER-12 is a high-performance router designed to deliver exceptional performance and flexibility. With the capability of processing up to 3.4 million packets per second and achieving a line rate of up to 6.8 Gbps, it offers a next-generation price/performance value. The router features ten Copper Gigabit Ethernet ports and two independent SFP ports, providing ample deployment flexibility and versatile networking options. Additionally, it supports Layer-2 switching.
The design of the EdgeRouter 12 allows for rack mounting using the EdgeRouter Rack Mount Kit, model ER-RMKIT, which is sold separately. This feature enhances its versatility and integration into various network setups.
For ease of management, the EdgeRouter 12 is supported by UNMS (Ubiquiti Network Management System), a comprehensive controller equipped with an intuitive user interface. It allows centralized management by providing a single control plane that efficiently manages registered EdgeMAX devices across multiple locations.
| Mechanical | |
|---|---|
| Dimensions | 268.1 x 136.5 x 31.1 mm (10.6 x 5.4 x 1.2") |
| Weight | 700 g (1.5 lb) |
| Hardware | |
| Processor | 4-Core 1 GHz MIPS64 |
| System memory | 1 GB DDR3 RAM |
| On-board flash storage | 4 GB eMMC, 8 MB SPI NOR |
| Networking interface | (10) GbE RJ45 ports (2) 1 Gbps SFP ports |
| Management interface | (1) RJ45 serial port |
| Power method | External AC/DC power adapter, 24W, 24V, 1A (Included) 24V Passive PoE |
| Power supply | External AC/DC adapter |
| Passive PoE Voltage range Max. wattage per port |
DC/PoE passthrough 20W (24V) |
| Supported voltage range | 9-30V DC |
| Max. power consumption | 20W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 24 kV, contact: ± 24 kV |
| Button | Factory reset |
| LEDs | System: power Data Ports: speed/link/activity, PoE SFP data port: link/activity |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
