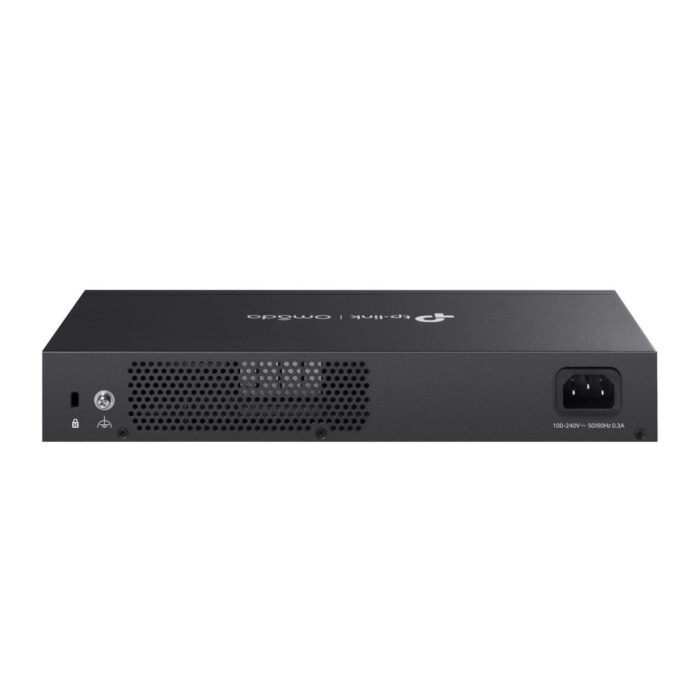

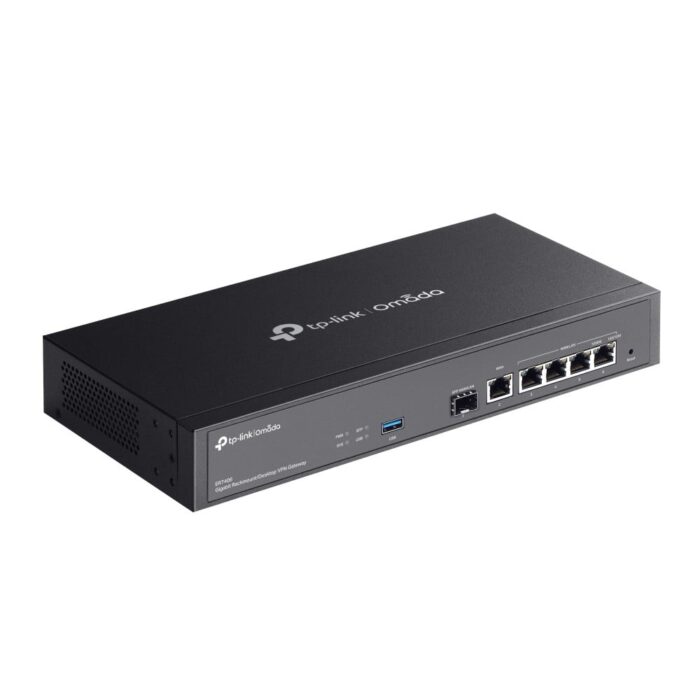

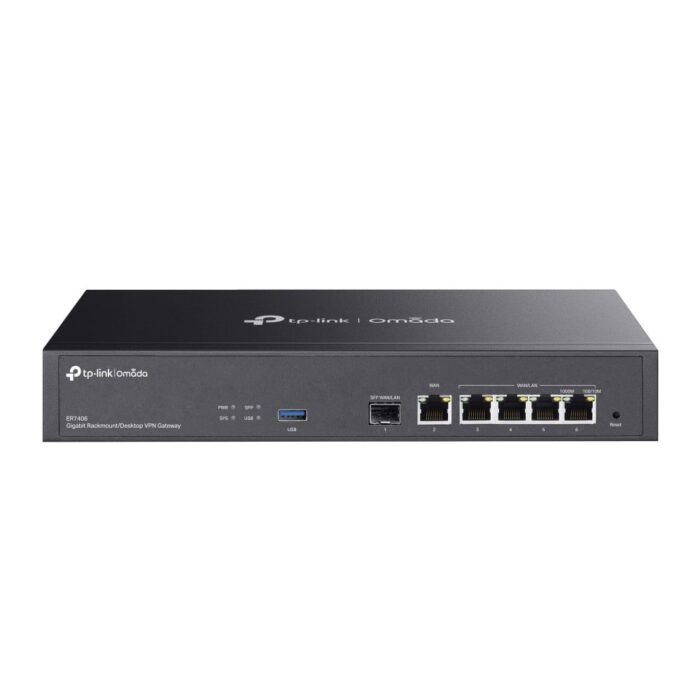

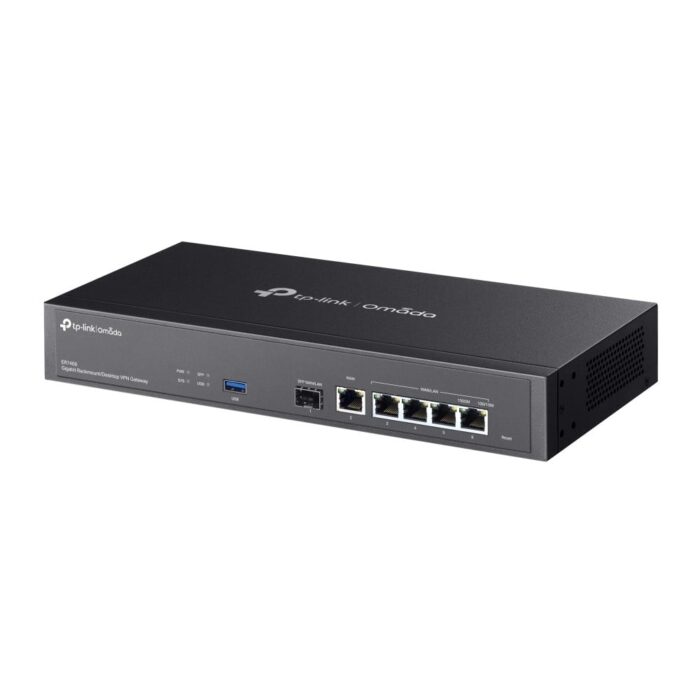

TP-Link Omada ER7406 Gateway VPN Rack

The TP-Link ER7406 adheres to networking standards such as IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z. It features a Gigabit Ethernet interface and supports Ethernet LAN data rates of 10, 100, and 1000 Mbit/s. The security algorithms supported include 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, and SHA-512. The product complies with CE, Federal Communications Commission (FCC), and RoHS certificates. An AC cable is included. It comes with 128 MB of flash memory and 512 MB of internal memory, which is of the DDR4 type.

WAN connection

Ethernet WAN
Yes
show more


DSL WAN
DSL WAN
No
show more


SIM card slot
SIM card slot
No
show more


3G/4G USB modem compatibility
Yes
show more


SFP WAN
Yes
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


VLAN support
VLAN support
Yes
show more


Static route
Yes
show more

Management features

Web-based management
Web-based management
Yes
show more


Reset button
Yes
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
5
show more


Installed SFP modules quantity
Installed SFP modules quantity
1
show more


USB ports quantity
1
show more

Protocols

DMZ support
Yes
show more


DHCP server
DHCP server
Yes
show more

Security

Security algorithms
Security algorithms
128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512
show more


URL filtering
Yes
show more


DoS attack prevention
Yes
show more


ARP attack prevention
Yes
show more


ICMP attack prevention
Yes
show more


VPN tunnels quantity
50
show more

Packaging content

Cables included
AC
show more


Quick installation guide
Yes
show more

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
show more

Features

Flash memory
128 MB
show more


Internal memory
Internal memory
512 MB
show more


Internal memory type
Internal memory type
DDR4
show more


Windows operating systems supported
Windows operating systems supported
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
show more


Mac operating systems supported
Mac operating systems supported
Yes
show more


Linux operating systems supported
Linux operating systems supported
Yes
show more

Design

Product colour
Product colour
Black
show more


Rack mounting
Rack mounting
Yes
show more

Power

Power consumption (max)
Power consumption (max)
7.5 W
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
294 mm
show more


Depth
Depth
140 mm
show more


Height
Height
44 mm
show more
