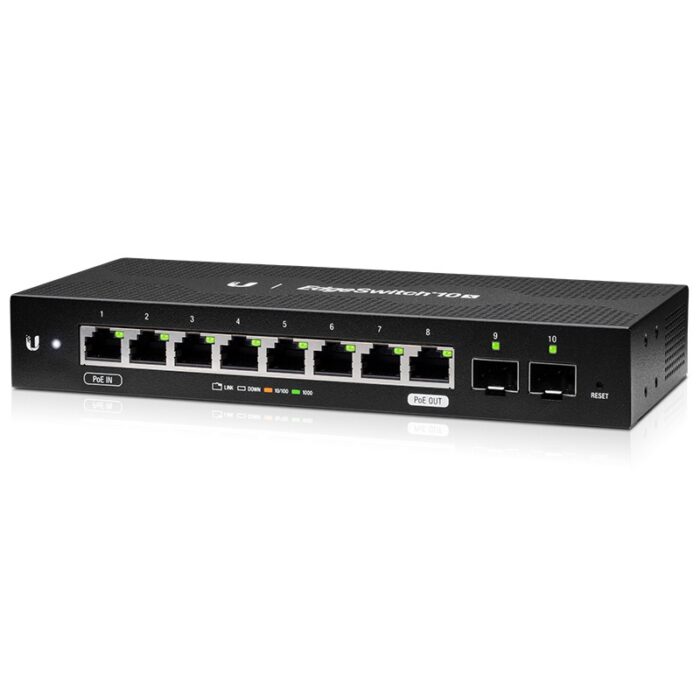

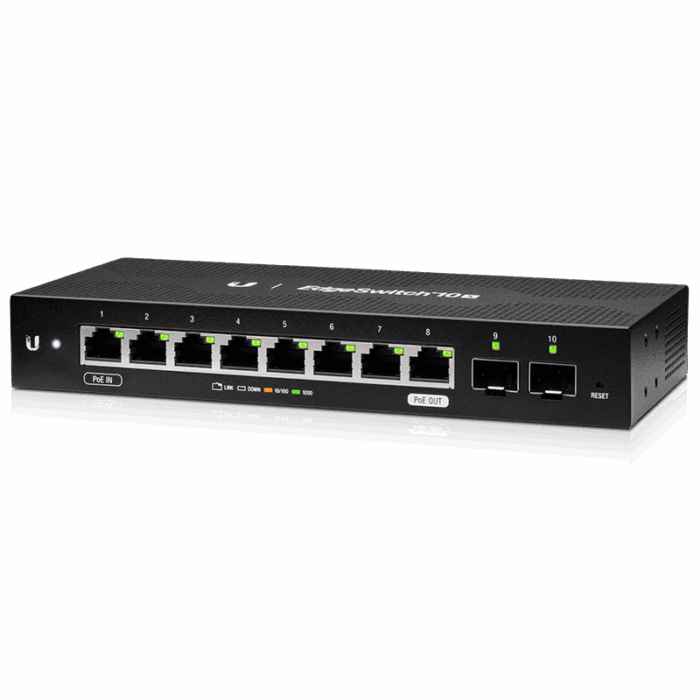

The Ubiquiti EdgeSwitch 10X is a managed switch designed for efficient network management and operation. It operates on Layer 2, providing reliable data link support. This switch is equipped with eight RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000), allowing for high-speed data transfer. Additionally, it features an RJ-45 console port for direct access to switch configuration. With a switching capacity of 20 Gbit/s, it can handle substantial data loads with ease. The device operates on a DC input voltage of 24 V and supports Power over Ethernet (PoE), which can simplify cable management by delivering power and data over a single cable. It is also designed to be rack-mounted, offering a neat and organized installation in network environments.
| Mechanical | |
|---|---|
| Dimensions | 207 x 31.1 x 90 mm (8.2 x 1.2 x 3.5") |
| Weight | 500 g (1.1 lb) |
| Hardware | |
| Networking interface | (8) 10/100/1000 Mbps RJ45 ports (2) 1 Gbps SFP ports |
| Management interface | Ethernet In-Band |
| PoE interface | 24V DC passive PoE (Pins 4, 5+; 7, 😎 |
| Total non-blocking throughput | 10 Gbps |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |

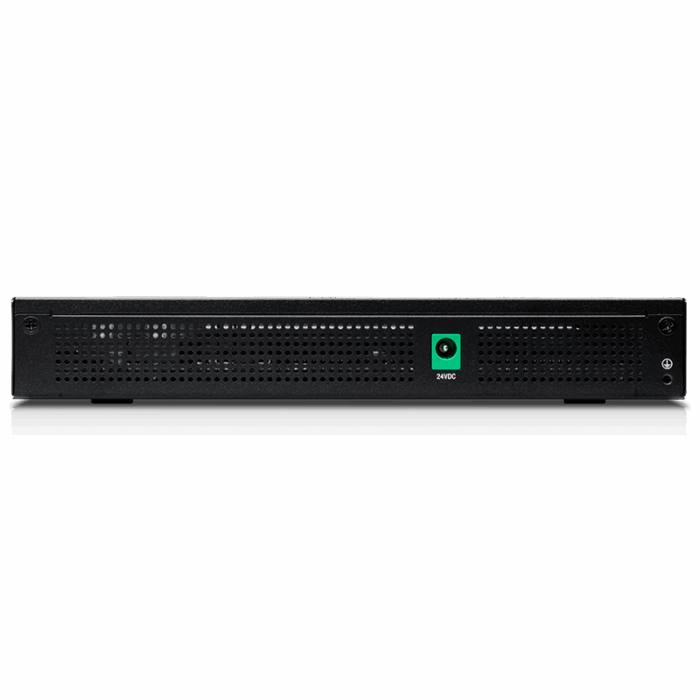

| Power method | 24V DC, 1A power adapter (Included) 24V passive PoE |
| Supported voltage range | 9–30V DC |
| Max. passive PoE wattage per port | 15W |
| 24V passive PoE voltage range | 24V |
| Max. power consumption | 8W (Excluding PoE output) |
| LEDs | System: status RJ45 ports: link/speed/activity SFP ports: link/activity |
| ESD/EMP protection | Air/contact: ± 24 kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
