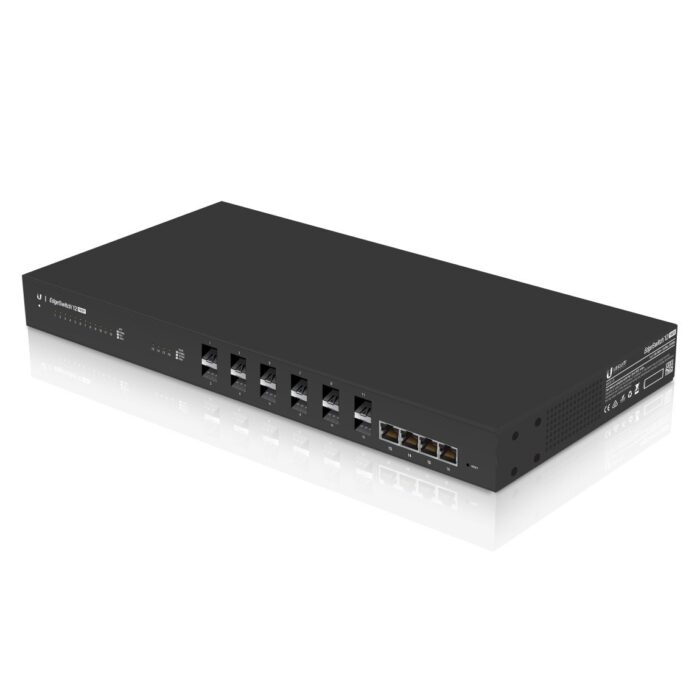

EdgeSwitch 12 Fiber is an advanced device designed to enhance network capabilities with its intelligent switch technology, offering high capacity and low latency. This switch features 4 Gigabit RJ-45 ports and 12 SFP ports, with 8 of them supporting 100 Mbps, ensuring high quality combined with exceptional reliability.
Reliability is a key attribute of the ES-12F. Its robust processing capacity facilitates seamless traffic management across ports, and its advanced operating system delivers comprehensive switching functions. The device supports Layer-3 features such as a DHCP server and static routing.
Key features include a multilayer manageable switch, 4 Gigabit Ethernet ports, 12 SFP modules, a 32 Gbit/s switching capacity, rack installation capability, durable construction, and reliability. For more details, refer to the manufacturer's documentation and manual for comprehensive specifications.
| Mechanical | |
|---|---|
| Dimensions | 443 x 221 x 43 mm (17.4 x 8.7 x 1.7") |
| Weight | Without rack-mount brackets: 2.6 kg (5.7 lb) With rack-mount brackets: 2.7 kg (5.9 lb) |
| Hardware | |
| Networking interface | (8) 100/1000 Mbps SFP Ethernet ports (4) 1000 Mbps SFP Ethernet ports (4) 10/100/1000 Mbps RJ45 Ethernet ports |
| Management interface | (1) RJ45 serial port Out-of-Band, Ethernet In-Band |
| Total non-blocking line rate | 16 Gbps |
| Max. AC power consumption | 56W |
| Power method | 100–240V AC, 50/60 Hz, universal input DC 56W, 25–16V, with 2.5 mm DC power inline connector |
| Power supply | AC/DC, internal, 56W |
| Supported voltage range | 100–240V AC 25–16V DC |
| LEDs | Speed/Link/Activity |
| Rackmount | Yes, 1U high |
| ESD/EMP protection | Air/contact: ± 24 kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
