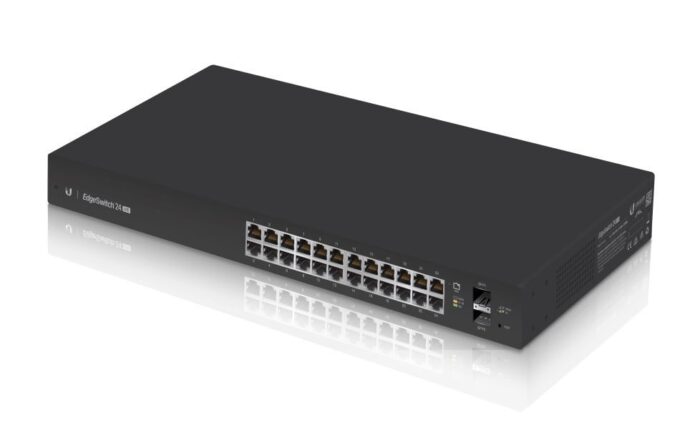

The Ubiquiti ES-24-LITE is a versatile EdgeSwitch LITE switch designed to enhance network capabilities. It is fully manageable, ensuring both efficiency and reliability by providing intelligent switching for expanding networks.
In terms of reliability, the switch has 24 Gigabit RJ-45 ports and 2 SFP ports, with a throughput capability of up to 26 Gb/s. It is intended for installation in 19" 1U racks, making it ideal for businesses seeking to set up an efficient LAN segment or to expand an existing LAN network. This high-quality device employs innovative solutions for optimal performance.
Key features include manageability, 24 Gigabit Ethernet ports, 2 SFP ports, 52 Gbps switching capacity, high capacity, solid construction, reliability, and modern design.
Comparison:
– Model: ES-24-LITE
Total Non-Blocking Throughput: 26 Gbps
Gigabit RJ45 Ports: 24
SFP+ Ports: None available
SFP Ports: 2
Max. Power Consumption: 25W
PoE: Not available
In comparison, the ES-48-LITE offers 70 Gbps throughput, 48 Gigabit RJ45 ports, 2 SFP+ ports, 2 SFP ports, and a maximum power consumption of 56W, without PoE capability.
For further information, consult the manufacturer's documentation and manual.
| Mechanical | |
|---|---|
| Dimensions | 443 x 43 x 221 mm (17.4 x 1.7 x 8.7") |
| Weight | Without rack-mount brackets: 2.5 kg (5.5 lb) With rack-mount brackets: 2.6 kg (5.7 lb) |
| Hardware | |
| Networking interface | (24) 10/100/1000 Mbps RJ45 Ethernet ports (2) 1/10 Gbps SFP+ Ethernet ports |
| Management interface | (1) RJ45 serial port, Ethernet In/Out-Band |
| Total non-blocking throughput | 26 Gbps |
| Switching capacity | 52 Gbps |
| Forwarding rate | 38.69 Mpps |
| Power method | (24) 10/100/1000 Mbps RJ45 Ethernet ports (2) 1/10 Gbps SFP+ Ethernet ports |
| Power supply | AC/DC, internal, 25W |
| Max. power consumption | 25W |
| LEDs | RJ45 ports: speed/link/activity SFP ports: speed/link/activity |
| Rackmount | Yes, 1U high |
| ESD/EMP protection | Air/contact: ±24 kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
