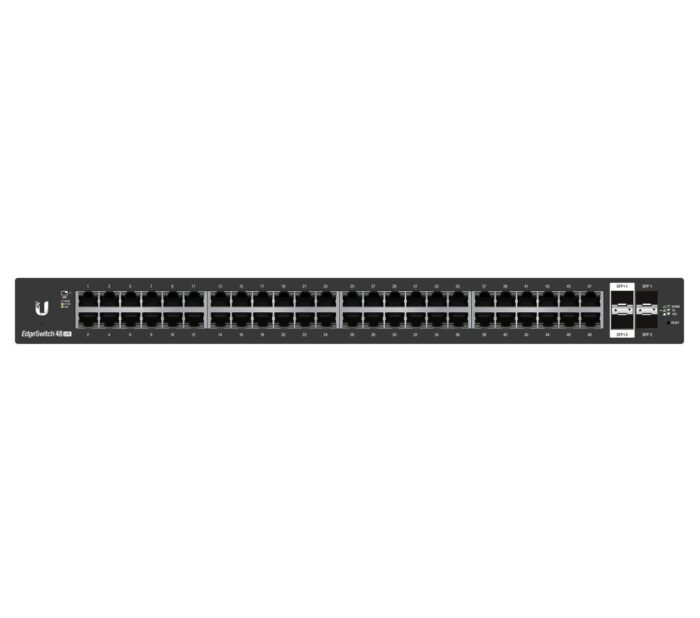

The Ubiquiti ES-48-LITE is a reliable switch from the EdgeSwitch LITE series, designed to meet the demands of users looking to expand their network capabilities. This fully manageable device offers high-capacity performance, coupled with intelligent switching, ideal for evolving networks.
Reliability:
Featuring 48 Ethernet RJ-45 ports, 2 SFP+ ports, and 2 SFP ports, this switch delivers a capacity of 70 Gbps.
Construction and Installation:
Designed for installation in 19-inch 1U racks, this layer-2 switch is built with innovative technologies and high-quality components, ensuring reliability and efficiency.
Key Features:
– 48 Gigabit RJ-45 ports
– 2 SFP ports
– 2 SFP+ ports
– 70 Gbps switching capacity
– Fully manageable
– High capacity and reliability
– Durable construction with a modern design
Comparison:
ES-24-LITE:
– Total Non-Blocking Throughput: 26 Gbps
– Gigabit RJ45 Ports: 24
– SFP+ Ports: N/A
– SFP Ports: 2
– Max. Power Consumption: 25W
– PoE: N/A
ES-48-LITE:
– Total Non-Blocking Throughput: 70 Gbps
– Gigabit RJ45 Ports: 48
– SFP+ Ports: 2
– SFP Ports: 2
– Max. Power Consumption: 56W
– PoE: N/A
Manufacturer's Content:
For more information, please refer to the manufacturer's documentation and manual.
| Mechanical | |
|---|---|
| Dimensions | 443 x 43 x 221 mm (17.4 x 1.7 x 8.7") |
| Weight | Without rack-mount brackets: 3.6 kg (7.9 lb) With rack-mount brackets: 3.7 kg (8.1 lb) |
| Hardware | |
| Networking interface | (48) 10/100/1000 Mbps RJ45 Ethernet ports (2) 1/10 Gbps SFP+ Ethernet ports (2) 1 Gbps SFP Ethernet ports |
| Management interface | (1) RJ45 serial port, Ethernet In/Out-Band |
| Total non-blocking throughput | 70 Gbps |
| Switching capacity | 140 Gbps |
| Forwarding rate | 104.16 Mpps |
| Power method | 100-240V AC, 50/60 Hz, universal input DC 56W, 25–16V, with 2.5 mm DC power inline connector |
| Power supply | AC/DC, internal, 56W |
| Max. power consumption | 56W |
| LEDs | RJ45 ports: speed/link/activity SFP ports: speed/link/activity |
| Rackmount | Yes, 1U high |
| ESD/EMP protection | Air/contact: ±24 kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
