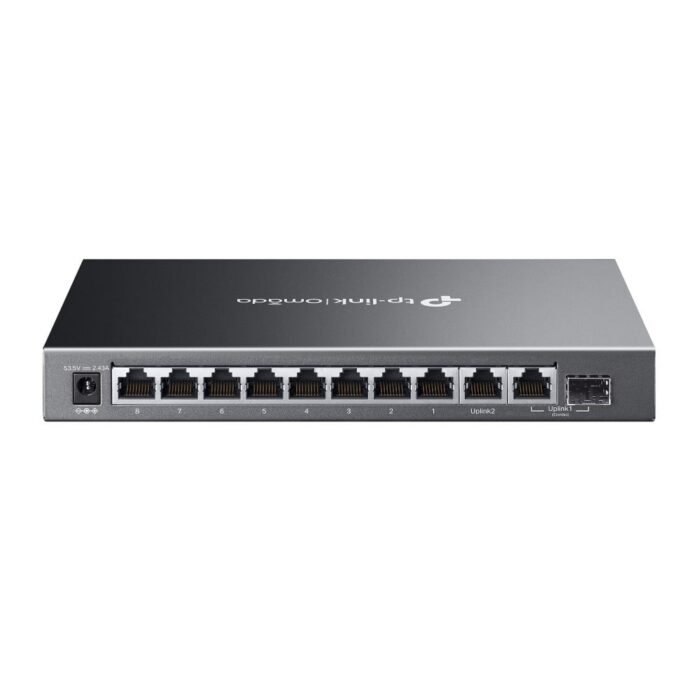

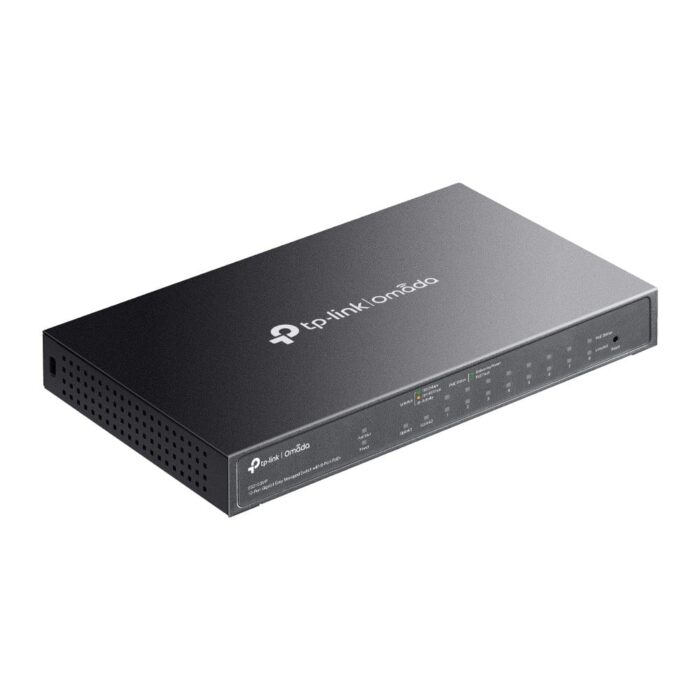

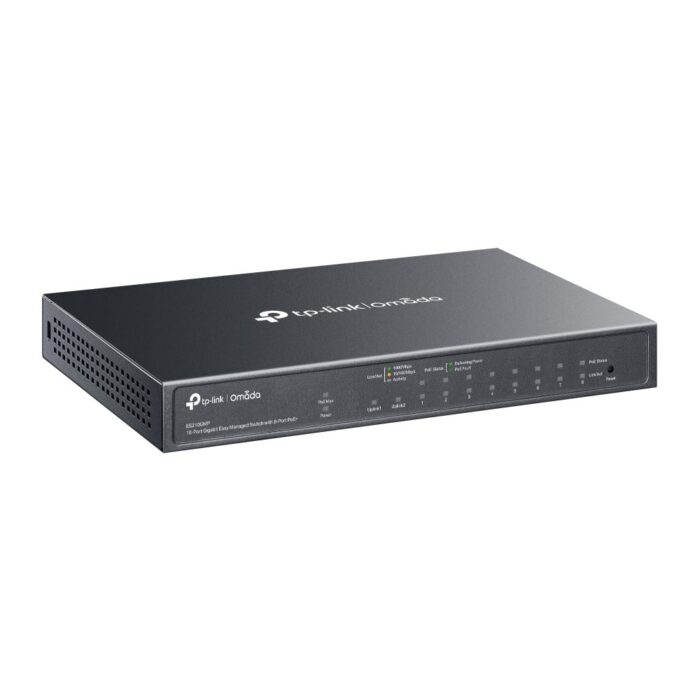

TP-Link ES210GMP Switch 10xGE (8xPoE+)

Introducing the TP-Link Omada 10-Port Gigabit Easy Managed Switch, featuring 8-Port PoE+. This managed switch is equipped with 10 basic switching RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000). It boasts a MAC address table capable of handling up to 8000 entries and a switching capacity of 20 Gbit/s. It complies with networking standards including IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3x. The switch operates with a DC input voltage of 53.5 V and supports Power over Ethernet (PoE). Additionally, it offers the convenience of being wall mountable.

Management features

Switch type
Switch type
Managed
show more


Quality of Service (QoS) support
Yes
show more


Cloud-managed
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
10
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Combo SFP ports quantity
1
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
show more


10G support
10G support
No
show more


Port mirroring
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Auto-negotiation
Yes
show more


Link aggregation
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
show more

Optical fiber

Transmission distance (max)
0.25 km
show more

Data transmission

Switching capacity
Switching capacity
20 Gbit/s
show more


Forwarding rate
14.88 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
15
show more


Packet buffer memory
4 MB
show more

Security

DHCP features
DHCP client
show more


IGMP snooping
Yes
show more

Design

Product colour
Product colour
Black
show more


Reset button
Yes
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
Yes
show more


DC input voltage
53.5 V
show more


Input current
2.43 A
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
123 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
209 mm
show more


Depth
Depth
126 mm
show more


Height
Height
26 mm
show more

Packaging content

Cables included
AC
show more


User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
show more
