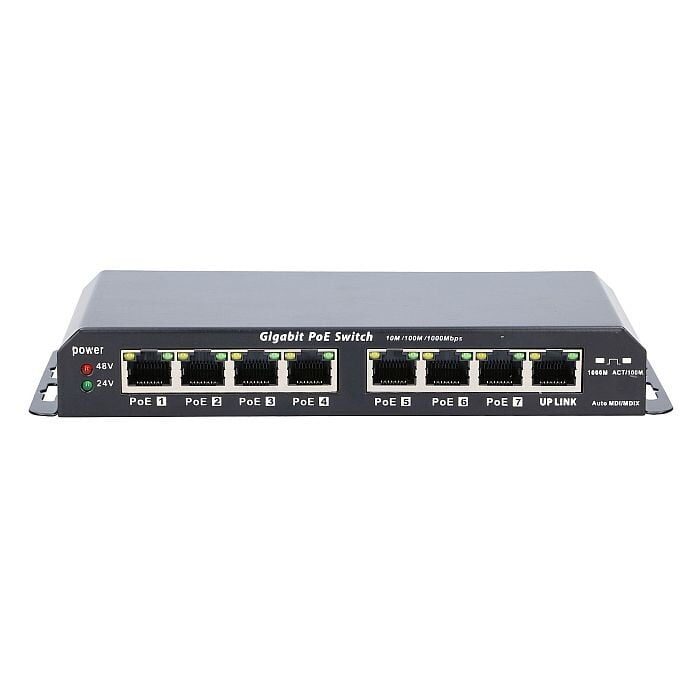

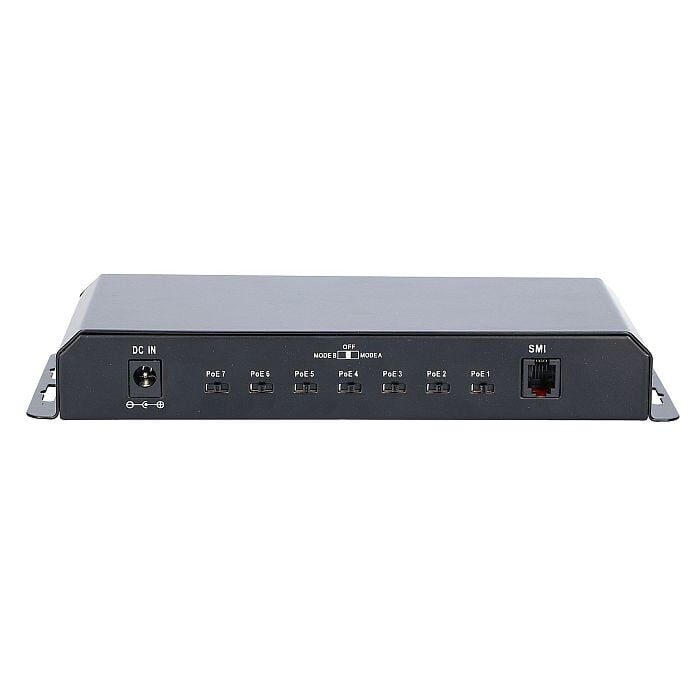

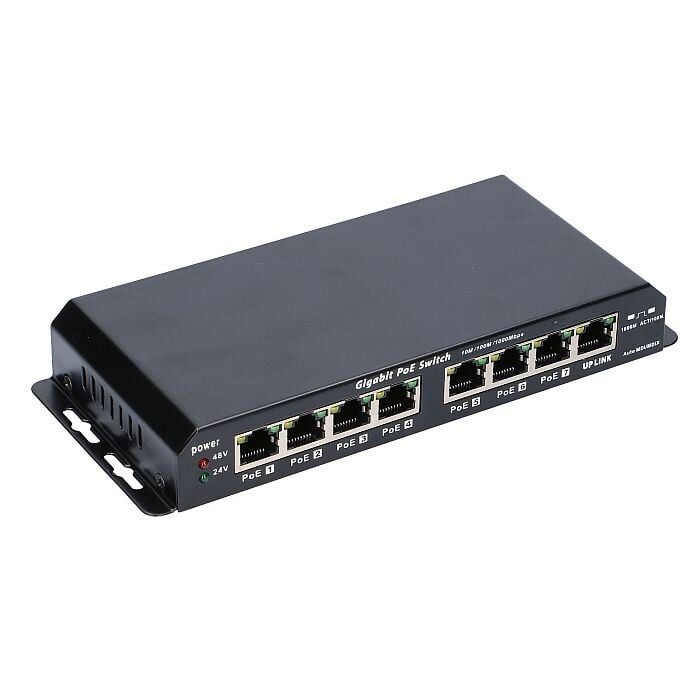

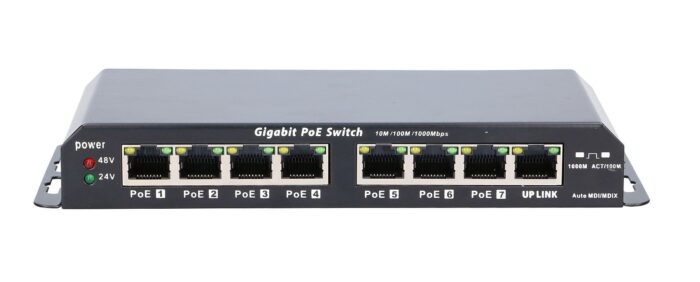

Extralink KRATOS PoE Switch, 7x Gigabit PoE, 1x Uplink RJ45, Power Supply 24V 2.5A, 60W

The Extralink Kratos is an 8-port switch designed for high performance, featuring 10/100/1000 Mb/s throughput. It includes 7 PoE ports and is powered by an external supply with a voltage range of 18V to 57V. The switch's 7 PoE ports are capable of delivering power up to 30W and enabling data transmission at 1000 Mbps using standard Cat 5/5e/6 Ethernet cables.

Management features

Switch type
Switch type
Unmanaged
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
No
show more


Cloud-managed
No
show more


Web-based management
Web-based management
No
show more


Configuring Location Settings (CLI)
No
show more


Traffic shaping
No
show more


Traffic classification
No
show more


System event log
No
show more


User operation log
No
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3af
show more


10G support
10G support
No
show more


Cable types supported
Cat5, Cat5e, Cat6
show more


Port mirroring
No
show more


Auto-negotiation
Yes
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


MAC address table
MAC address table
4096 entries
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


Temperature sensor
No
show more


Reset button
Yes
show more


LED indicators
Yes
show more


Redundant fans support
No
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Input current
2.5 A
show more


Output voltage
18 – 56 V
show more


Output power
Output power
90 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) voltage range
24 – 48 V
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
60 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 80%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
192 mm
show more


Depth
Depth
82 mm
show more


Height
Height
27 mm
show more


Weight
Weight
500 g
show more

Certificates

Certification
CE & FCC
show more
