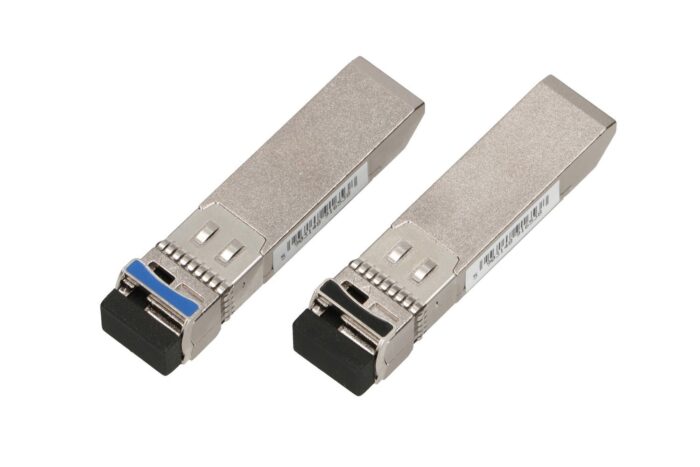

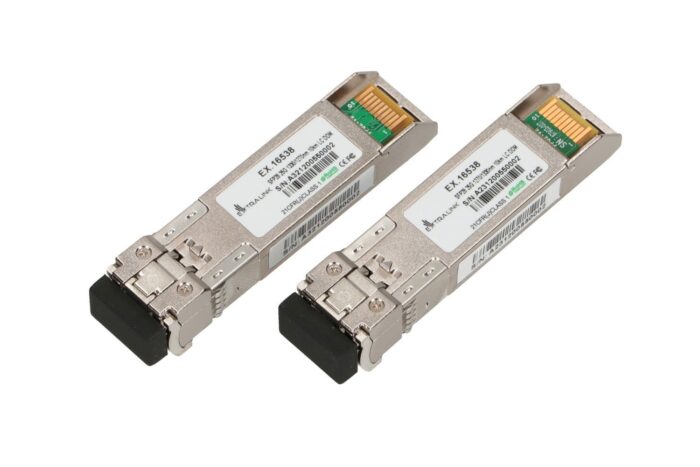

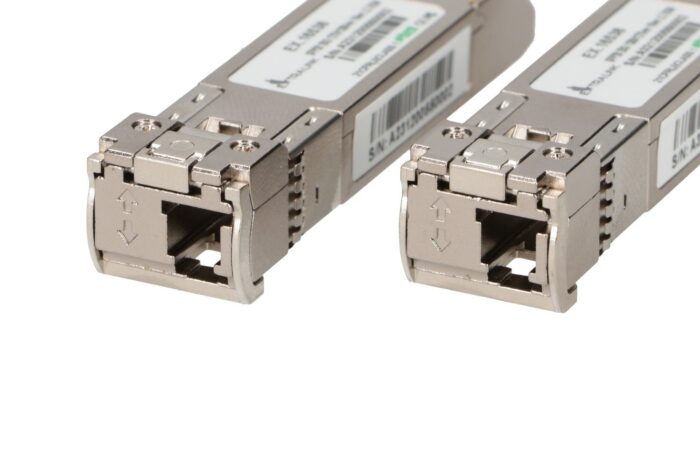

Extralink SFP28 25G SFP28 WDM Module 25Gbps 1270/1330nm, Single Mode, 10km, LC, DOM, Pair

The Extralink SFP 25G module is an economical solution supporting data rates of up to 25.78 Gbps. It is a cost-effective option that complies with the Gigabit Ethernet and 1000-BASE-T standards as specified in IEEE 802.3cc. This module is designed for connections over maximum distances of up to 10 km using Category 5 Ethernet cables. The transceiver is optimized to deliver high performance while remaining cost-effective, making it an ideal choice for 25 Gbps single-band optical links. The SFP28+ module features very low power consumption of no more than 1.5 W and can operate in temperatures ranging from 0°C to 70°C.

Performance

SFP transceiver type
Fiber optic
show more


Maximum data transfer rate
Maximum data transfer rate
25780 Mbit/s
show more


Interface type
SFP28
show more


Single-mode fiber (SMF) supported
Yes
show more


Fiber optic connector
Fiber optic connector
LC
show more


SFP transceiver standard
CWDM
show more


Maximum transfer distance
Maximum transfer distance
10000 m
show more


Wavelength
Wavelength
1310 nm
show more


Tx wavelength (min)
1270 nm
show more


Tx wavelength (max)
1330 nm
show more


Ethernet LAN
Ethernet LAN
No
show more


Networking standards
Networking standards
IEEE 802.3cc
show more

Power

Input voltage
Input voltage
3.3 V
show more


Power consumption (typical)
Power consumption (typical)
1.5 W
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more
