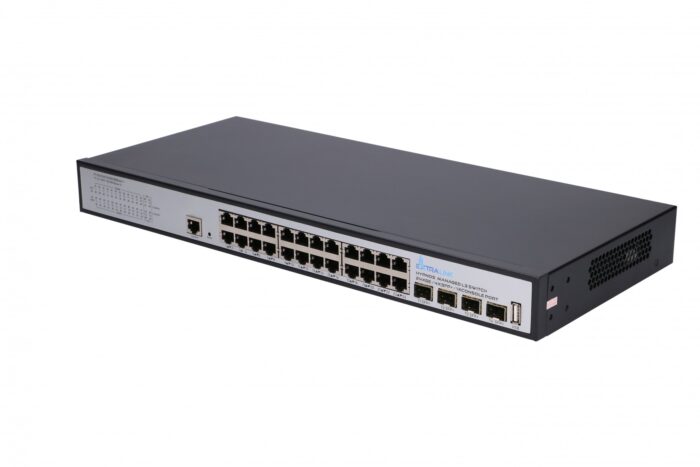

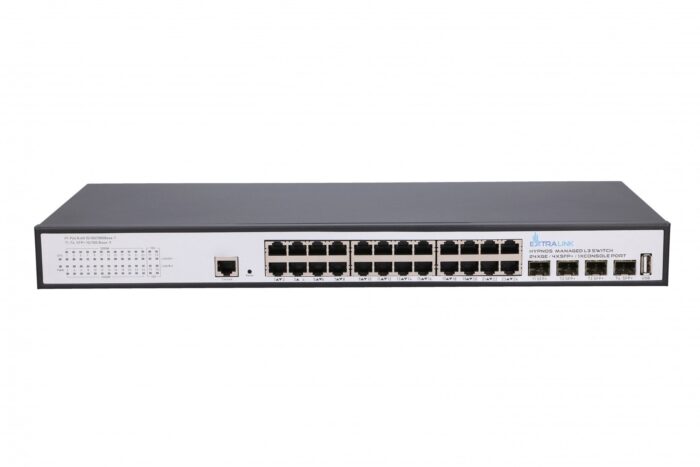

Extralink Hypnos, Full Gigabit Managed L3 Switch 24 Ports 10/100/1000M, Console Port, 4x 10G SFP+

The Extralink Switch Hypnos is a high-performance network switch featuring 24 RJ-45 ports supporting speeds of up to 1000 Mb/s and 4 SFP+ ports. This is a managed switch that operates on both Layer 2 and Layer 3. It includes 24 Gigabit Ethernet RJ-45 ports with speeds of 10/100/1000 Mbps. Additionally, it is equipped with 4 installed SFP modules and 4 installed SFP+ modules. The switch boasts a MAC address table capable of handling 32,768 entries and has a switching capacity of 360 Gbit/s. It complies with several networking standards, including IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z. The device is powered through an AC-in jack and supports rack mounting with a compact 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2/L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
24
show more


Installed SFP modules quantity
Installed SFP modules quantity
4
show more


Installed SFP+ modules quantity
Installed SFP+ modules quantity
4
show more


Power connector
AC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Auto-negotiation
Yes
show more


Link aggregation
Yes
show more


Spanning tree protocol
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
360 Gbit/s
show more


Throughput
126.67 Mpps
show more


MAC address table
MAC address table
32768 entries
show more


Static route
Yes
show more

Security

DHCP features
DHCP client, DHCP server
show more


Access Control List (ACL)
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
No
show more


Form factor
Form factor
1U
show more


Housing material
Housing material
Metal
show more


Reset button
Yes
show more


LED indicators
Data, Link, Power, Status, System, Uplink
show more

Performance

Firmware upgradeable
Yes
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


Number of power supply units
1
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-20 – 55 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 75 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
290 mm
show more


Height
Height
44.5 mm
show more


Weight
Weight
3 kg
show more

Packaging content

Cables included
AC
show more


Rack mount kit
Yes
show more


Manual
Yes
show more

Packaging data

Package type
Package type
Box
show more
