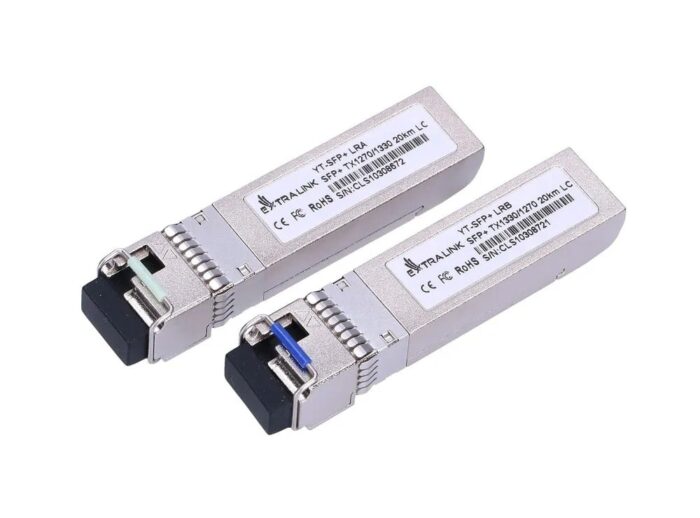

Extralink SFP+ 10G SFP+ WDM Module 10Gbps 1270/1330nm, single mode, 20km, LC, DOM, pair

The SFP+ 10G WDM 1270/1330NM SM 20KM is a set of cost-effective modules. This set includes two single-mode SFP inserts that operate bidirectionally on a single fiber, using wavelengths of 1270/1330 nm and supporting distances up to 20 kilometers. The SFP 10G fiber optic module's electrical interface adheres to the SFI electrical specifications. The receiver is capable of converting serial optical data at 10 Gbit/s into PECL/CML serial electrical data. Equipped with a two-wire serial I2C interface, the single-mode SFP insert allows for serial identification, digital diagnostics, and module control. The enhanced digital diagnostics monitoring interface provides real-time access to the SFP optical module, enabling the monitoring of received optical power, laser beam current, laser output power, and more. These single-mode SFP+ modules are designed to work with 10 Gbps Ethernet, routers, and SONET/SDH switches, as well as 10G/8.5G/4.25G/2.125G/1.0625G optical channels and other 10 Gbps optical links.
