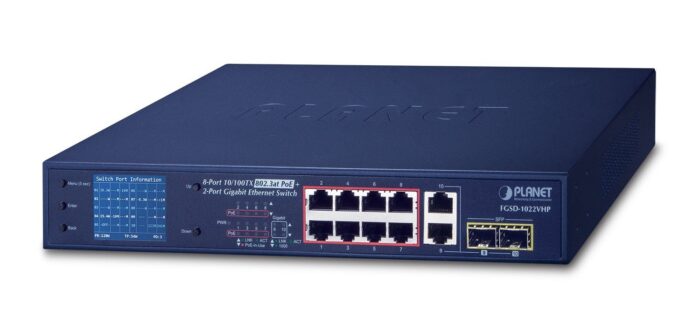

PLANET FGSD-1022VHP Network Switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Blue

The PLANET FGSD-1022VHP is an unmanaged Ethernet switch operating at Layer 2. It features eight Fast Ethernet (10/100) RJ-45 ports and supports full duplex communication. The switch can handle a MAC address table of up to 8000 entries and has a switching capacity of 5.6 Gbit/s. It adheres to several networking standards including IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, and IEEE 802.3x. The device supports Power over Ethernet (PoE), making it suitable for a variety of network configurations. Designed for efficiency in a rack-mounted setup, the switch has a compact form factor of 1U.

Management features

Switch type
Switch type
Unmanaged
show more


Switch layer
Switch layer
L2
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Combo SFP ports quantity
2
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
No
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-learning supported
Yes
show more


Auto-negotiation
Yes
show more


MAC address auto-aging supported
Yes
show more


Broadcast storm control
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more

Optical fiber

Fiber ethernet cabling technology
1000BASE‑LX, 1000BASE‑SX
show more

Data transmission

Switching capacity
Switching capacity
5.6 Gbit/s
show more


Throughput
4.17 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Blue
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more


Number of fans
Number of fans
1 fan(s)
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Input current
2.5 A
show more


Power consumption (max)
Power consumption (max)
130 W
show more


Power protection features
Power protection features
Short circuit
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
120 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-10 – 60 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
446 BTU/h
show more

Weight & dimensions

Width
Width
180 mm
show more


Depth
Depth
280 mm
show more


Height
Height
44 mm
show more


Weight
Weight
1.8 kg
show more

Certificates

Certification
FCC, CE
show more

Logistics data

Harmonized System (HS) code
85176990
show more
