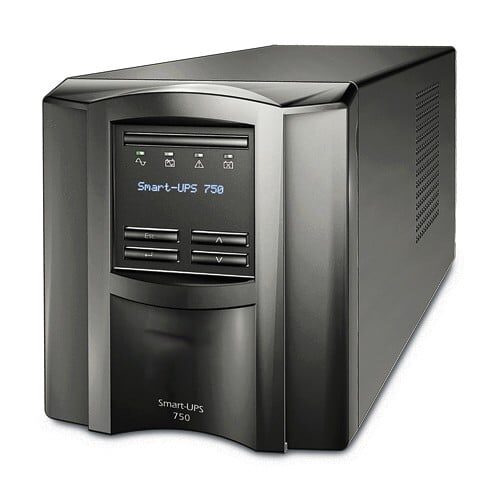

Fujitsu Smart-UPS Line-Interactive 0.75 kVA 500 W 6 AC Outlets

Introducing the Fujitsu Smart-UPS, featuring a Line-Interactive UPS topology. It offers an output power capacity of 0.75 kVA and an output power of 500 W. The unit includes six AC outlets, utilizing C13 couplers, with a power plug type of C14 coupler. The battery technology employed is Sealed Lead Acid (VRLA), delivering a typical backup time of 4.6 minutes at full load and 15.8 minutes at half load. With a sleek tower form factor, this UPS comes in a black finish and has a cable length of 1.83 meters. The product meets several compliance certifications, including RoHS, CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, and EOLI.

Features

UPS topology
UPS topology
Line-Interactive
show more


Output power capacity
Output power capacity
0.75 kVA
show more


Output power
Output power
500 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
151 V
show more


Input operation voltage (max)
Input operation voltage (max)
302 V
show more


Input frequency
Input frequency
50/60 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Automatic Voltage Regulation (AVR)
Yes
show more


Surge energy rating
Surge energy rating
540 J
show more


Efficiency
98%
show more


Noise level
Noise level
40 dB
show more


Surge protection
Yes
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Auto-restart
Yes
show more

Ports & interfaces

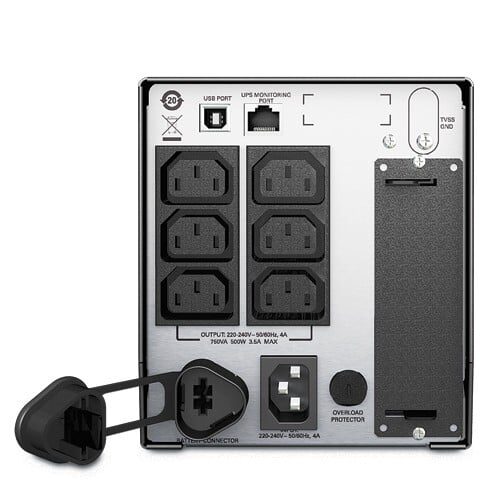

AC outlet types
AC outlet types
C13 coupler
show more


Power plug
Power plug
C14 coupler
show more


AC outlets quantity
AC outlets quantity
6 AC outlet(s)
show more


Number of output IEC jumpers
2
show more


USB port
USB port
Yes
show more


SmartSlot
Yes
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Typical backup time at full load
Typical backup time at full load
4.6 min
show more


Typical backup time at half load
Typical backup time at half load
15.8 min
show more


Battery life (max)
5 year(s)
show more


Battery recharge time
Battery recharge time
3 h
show more


Hot-swap battery
Yes
show more


Automatic battery test
Yes
show more


Cold start
Yes
show more

Design

Form factor
Form factor
Tower
show more


Cable length
Cable length
1.83 m
show more


Product colour
Product colour
Black
show more


Display type
Display type
LCD
show more


LED indicators
Status
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 45 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Certificates

Compliance certificates
RoHS
show more


Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
show more

Packaging content

Cables included
RS-232, USB cable
show more


Quick installation guide
Yes
show more

Weight & dimensions

Width
Width
138 mm
show more


Depth
Depth
358 mm
show more


Height
Height
157 mm
show more


Weight
Weight
13.2 kg
show more

Packaging data

Package width
Package width
278 mm
show more


Package depth
Package depth
499 mm
show more


Package height
Package height
301 mm
show more


Package weight
Package weight
14.2 kg
show more
