Set Hybrid 8kW + Inverter FoxESS H3-8.0-E + Energy Storage FoxESS CUBE 11.52kWh + 14x Jinko Bifacial 575Wp

This Hybrid Set includes an 8 kWp solar power system featuring JASolar 575Wp modules with a black frame, the FoxESS H3-8.0-E hybrid inverter, and a FoxESS CUBE ECS2900-H4 energy storage unit with a capacity of 11.52 kWh.

**Set Specification:**

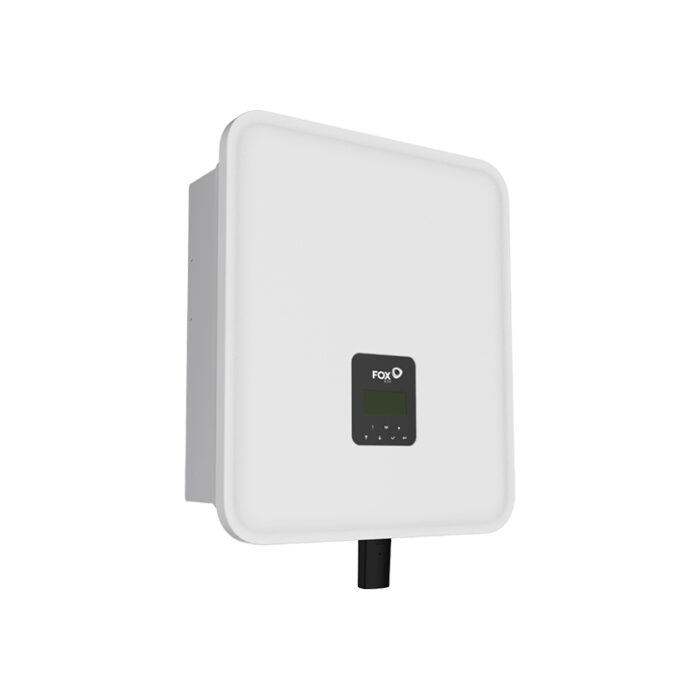

– **Hybrid Inverter:** H3-8.0-E (3-phase)
– Features a backup power function
– Includes 2 Maximum Power Point Tracking (MPPT) strings
– Equipped with Wi-Fi and Ethernet communication
– Comes with a 5-year product warranty

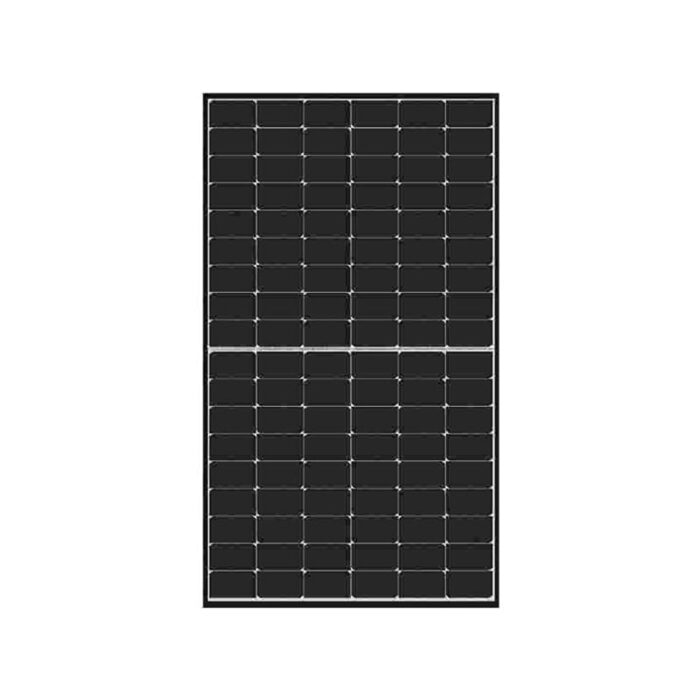

– **Photovoltaic Modules:** 14 JINKO JKM575N-72HL4-BDV units
– Produced by a leading manufacturer of photovoltaic cells and modules
– Utilizes N-Type technology for enhanced performance
– Achieves a module efficiency of 22.26%
– Offers higher output power
– Designed with a silver frame and SMBB technology
– Dimensions: 2278x1134x30 mm
– Includes a 15-year product warranty and a 25-year performance warranty

– **Energy Storage:** ECS2900-H4 with 8.64 kWh capacity
– High-voltage energy storage solution
– Scalability allows capacity increase up to 20.16 kWh
– Provides discharge capability up to 90%
– Ensures easy installation
– Can be managed via a mobile app

– **Energy Meter:** DTSU666 (comes included with the inverter)
