Set Hybrid 10kW with Fronius Symo GEN24 10.0 plus, energy storage BYD HVS 12.8, and 23 Jinko N-type 445Wp

Hybrid Set 10.35 kWp comprises JINKO 445Wp N-type modules, a Fronius Symo GEN24 10.0 plus Hybrid Inverter, and a BYD HVS 12.8 kWh energy storage system.

Specifications:

The Fronius Symo GEN24 10.0 plus Hybrid Inverter is a 3-phase inverter featuring a PV Point backup power function, two MPPT strings, Wi-Fi and Ethernet communication, and a Dynamic Peak Manager. It is manufactured in Austria and comes with a product warranty of 5 to 10 years.

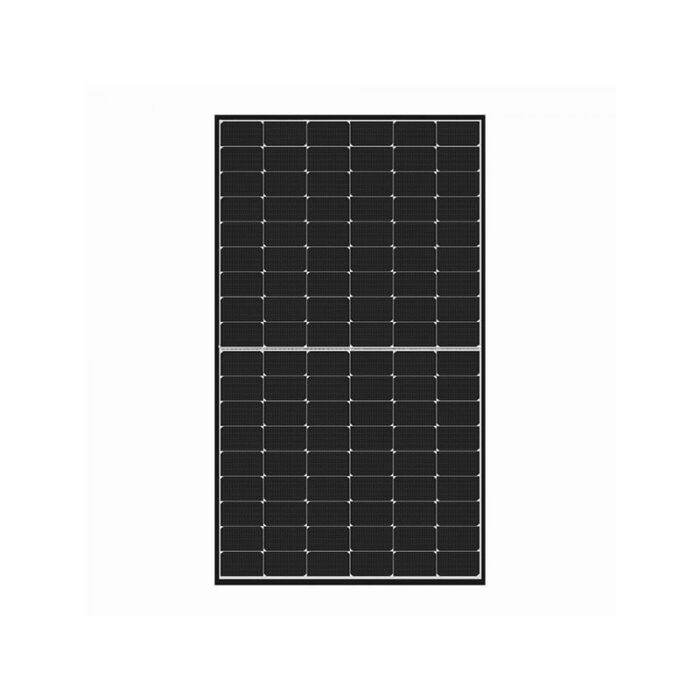

The set includes 23 JINKO JKM445N-54HL4R-V-F5_JK03M photovoltaic modules, known for being leaders among global module manufacturers. These modules utilize the latest N-type silicon technology and offer a module efficiency of 22.27%. They perform well in low light conditions and feature an aesthetic black frame with a white backsheet. The modules are highly resistant to salt mist and ammonia, have compact dimensions of 1762x1134x30mm, and come with a 15-year product warranty and a 30-year performance warranty.

The BYD HVS 12.8 energy storage system offers safety and reliability with its LFP cells. It is expandable up to 5 batteries in one pack, with a maximum capacity of 12.8 kWh. The system supports quick Plug&Play installation with Fronius and SMA hybrid inverters and allows for monitoring of key battery parameters. It comes with a 10-year warranty on both product and performance.

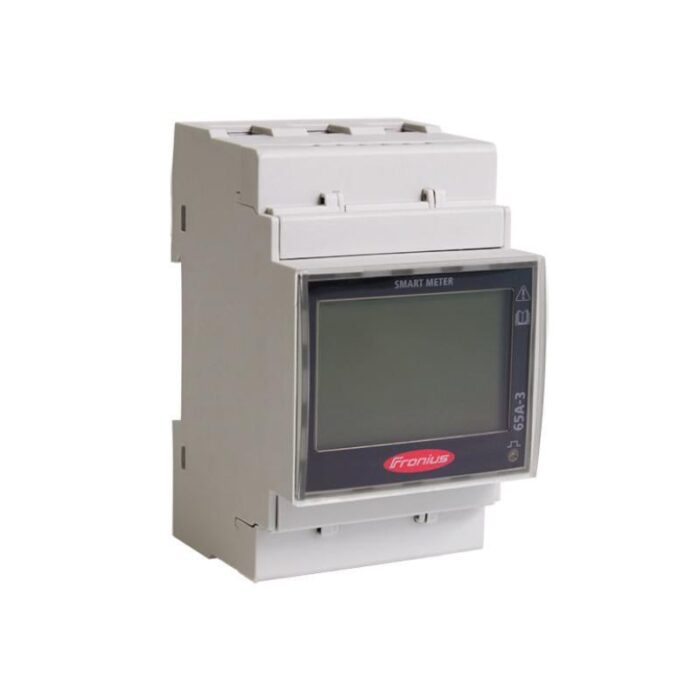

The Smart Meter TS 5kA-3 energy meter is compatible with Fronius inverters, providing a view of energy production and consumption. It can be configured and viewed through an app, and it offers secure, wired RS485 communication with the inverter. The energy meter comes with a 2-year warranty.
