Set Hybrid 5kW with Fronius Symo GEN24 5.0 plus, energy storage BYD HVS 10.2, and 9x Jinko Bifacial 575Wp

The Hybrid Set 5 kWp includes the JINKO 575 Wp Bifacial modules, the Fronius Symo GEN24 5.0 plus Hybrid Inverter, and BYD HVS 10.2 kWh energy storage.

Set Specification:

– Fronius Symo GEN24 5.0 plus hybrid inverter (3-phase) features a PV Point backup power function, 2 MPPT strings, Wi-Fi, and Ethernet communication, along with a Dynamic Peak Manager. It is manufactured in Austria and comes with a 5/10-year product warranty.

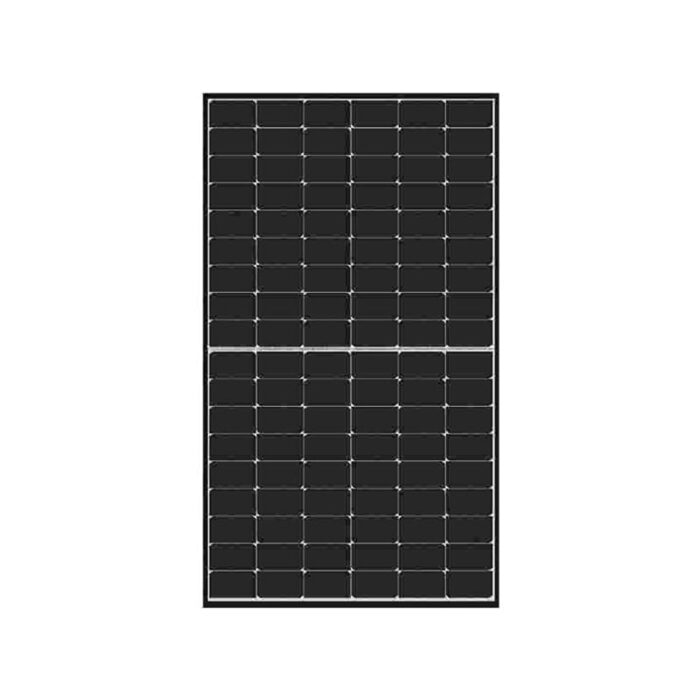

– The photovoltaic modules consist of 9 JINKO JKM575N-72HL4-BDV units. Jinko is a leading manufacturer of solar cells and modules using N-Type technology, offering a module efficiency of 22.26% and higher output power. These modules come with a silver frame and SMBB technology. Their dimensions are 2278x1134x30mm. The product comes with a 15-year product warranty and a 25-year performance warranty.

– BYD HVS 10.2 energy storage boasts safety and reliability with LFP cells, and it is expandable up to 5 battery units in a package for a maximum of 12.8 kWh. The storage system offers quick Plug&Play installation with Fronius and SMA hybrid inverters and includes monitoring of key battery parameters. It is accompanied by a 10-year warranty on both product and performance.

– The Smart Meter TS 5kA-3 energy meter is compatible with Fronius inverters, providing insights into energy production and consumption. It allows for configuration and monitoring via an app and ensures reliable, wired RS485 communication with the inverter. The product has a 2-year warranty.
