Set Hybrid 5kW with Fronius Symo GEN24 5.0 plus, energy storage BYD HVS 5.1, and 12x Jinko N-type 445Wp

Hybrid Set 5.4 kWp featuring JINKO 445Wp N-type modules, Fronius Symo GEN24 5.0 plus hybrid inverter, and BYD HVS 5.1 kWh energy storage.

Set Details:

The Fronius Symo GEN24 5.0 plus hybrid inverter is a 3-phase device equipped with a PV Point backup power function, two MPPT strings, and both Wi-Fi and Ethernet communication capabilities. It includes a Dynamic Peak Manager and is made in Austria. The inverter comes with a 5/10-year product warranty.

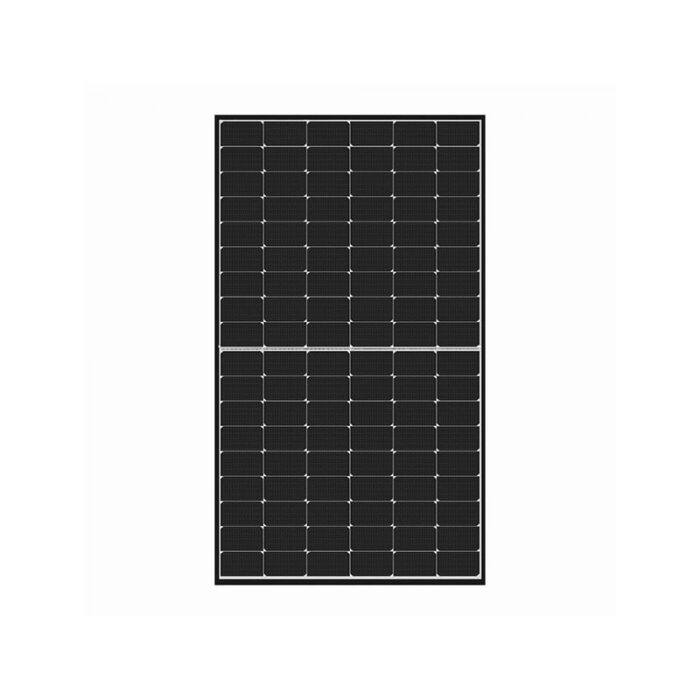

The photovoltaic setup includes 12 JINKO JKM445N-54HL4R-V-F5_JK03M modules. Known globally as a leader among module manufacturers, JINKO uses the latest N-type silicon technology, achieving a module efficiency of 22.27%. These modules perform exceptionally in low light, feature a stylish black frame with a white backsheet, and are resistant to salt mist and ammonia. They have compact dimensions of 1762x1134x30mm and come with a 15-year product warranty alongside a 30-year performance warranty.

The BYD HVS 5.1 energy storage system provides safety and reliability through LFP cells. It is expandable up to 5 battery units in one package, with a maximum capacity of 12.8 kWh. The system allows for quick Plug&Play installation with Fronius and SMA hybrid inverters and includes monitoring of key battery parameters. It comes with a 10-year warranty covering both product and performance.

The setup also includes the Smart Meter TS 5kA-3 energy meter, which is compatible with Fronius inverters. It enables users to view energy production and consumption, configure and monitor the system via an app, and offers reliable wired RS485 communication with the inverter. This meter is backed by a 2-year warranty.
