Set Hybrid 6kW with Fronius Symo GEN24 6.0 Plus, Energy Storage BYD HVS 5.1, and 12x Jinko N-Type 445Wp

Introducing the Hybrid Set with a total capacity of 6.3 kWp, featuring high-quality components including the JINKO 445Wp N-type modules, the Fronius Symo GEN24 6.0 plus hybrid inverter, and BYD HVS 5.1 kWh energy storage system.

Set Specification:

The Fronius Symo GEN24 6.0 plus hybrid inverter is a 3-phase device featuring a PV Point backup power function, two MPPT strings, and both Wi-Fi and Ethernet communication. It includes a Dynamic Peak Manager and is proudly made in Austria, offering a product warranty of either 5 or 10 years.

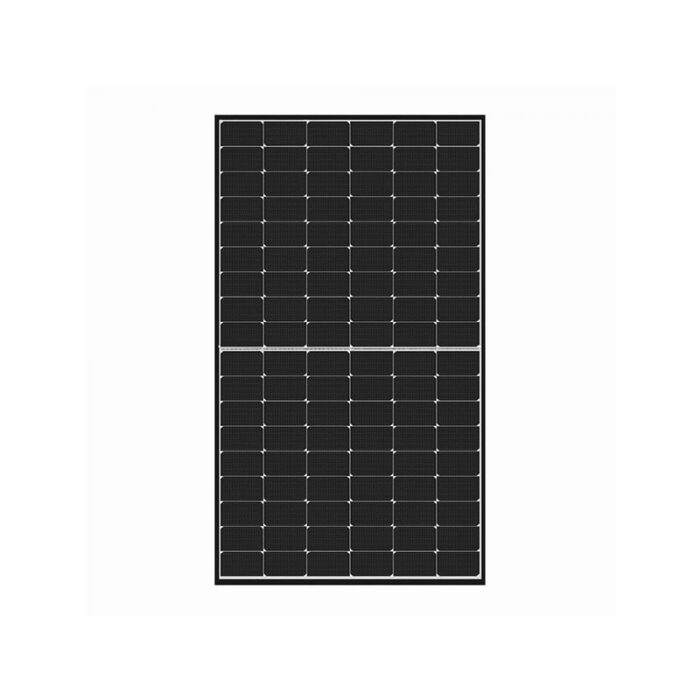

The photovoltaic system comprises 14 JINKO JKM445N-54HL4R-V-F5_JK03M modules, renowned worldwide for their quality. They incorporate the latest N-type silicon technology achieving a module efficiency of 22.27%. These modules perform admirably even in low light conditions and boast a sleek black frame with a white backsheet. They are highly resistant to salt mist and ammonia, and their compact dimensions are 1762x1134x30mm. They come with a 15-year product warranty and a 30-year performance warranty for added peace of mind.

The BYD HVS 5.1 energy storage offers safety and reliability with LFP cells. It is expandable up to 5 battery units in one package, reaching a maximum of 12.8 kWh. The system ensures a quick Plug & Play installation when paired with Fronius and SMA hybrid inverters. It also allows for monitoring of key battery parameters and is assured with a 10-year warranty on both product and performance.

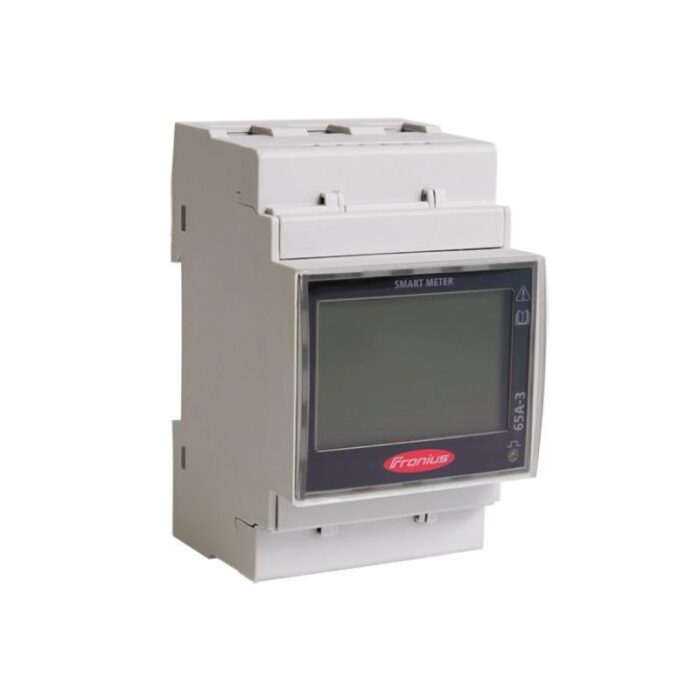

Included in the set is the Smart Meter TS 5kA-3 energy meter, compatible with Fronius inverters. It allows users to view energy production and consumption, with configuration and monitoring available via an app. It provides reliable wired RS485 communication with the inverter and comes with a 2-year warranty.
