Set Hybrid 8kW + Fronius Symo GEN24 8.0 plus + Energy Storage BYD HVS 10.2 + 18x Jinko N-type 445Wp

This Hybrid Kit offers an 8.1 kWp system featuring JINKO 445Wp N-type modules, the Fronius Symo GEN24 8.0 plus Hybrid Inverter, and a BYD HVS 10.2 kWh energy storage unit.

The Fronius Symo GEN24 8.0 plus hybrid inverter is designed for 3-phase systems and includes a PV Point backup power function, two MPPT strings, and both Wi-Fi and Ethernet communication capabilities. It features the Dynamic Peak Manager and is manufactured in Austria, with warranty options of 5 or 10 years.

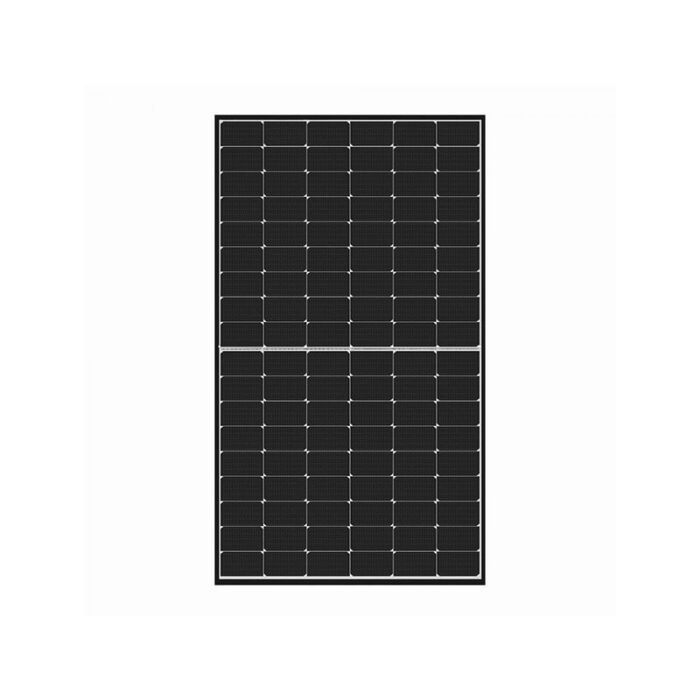

The photovoltaic system comprises 18 JINKO JKM445N-54HL4R-V-F5_JK03M modules from a leading global manufacturer. These modules use advanced N-type silicon technology to achieve a module efficiency of 22.27% and perform well even in low light conditions. The modules have an aesthetic black frame and white backsheet, and they are highly resistant to salt mist and ammonia. They have compact dimensions of 1762 x 1134 x 30mm and come with a 15-year product warranty alongside a 30-year performance guarantee.

The BYD HVS 10.2 energy storage system ensures safety and reliability using LFP cells. It can be expanded with up to 5 battery units in a package, supporting a maximum capacity of 12.8 kWh. The system allows for Quick Plug&Play installation with Fronius and SMA hybrid inverters and includes monitoring of key battery parameters. It is covered by a 10-year warranty on both product and performance.

Lastly, the Smart Meter TS 5kA-3 energy meter is compatible with Fronius inverters. It provides a comprehensive overview of energy production and consumption and can be configured and monitored via an app. This meter ensures reliable communication with the inverter through wired RS485 connections and comes with a 2-year warranty.
