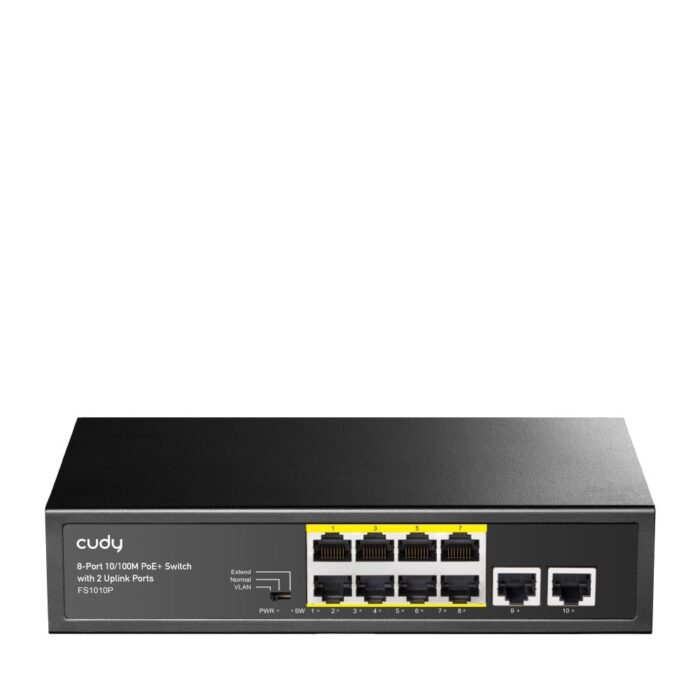

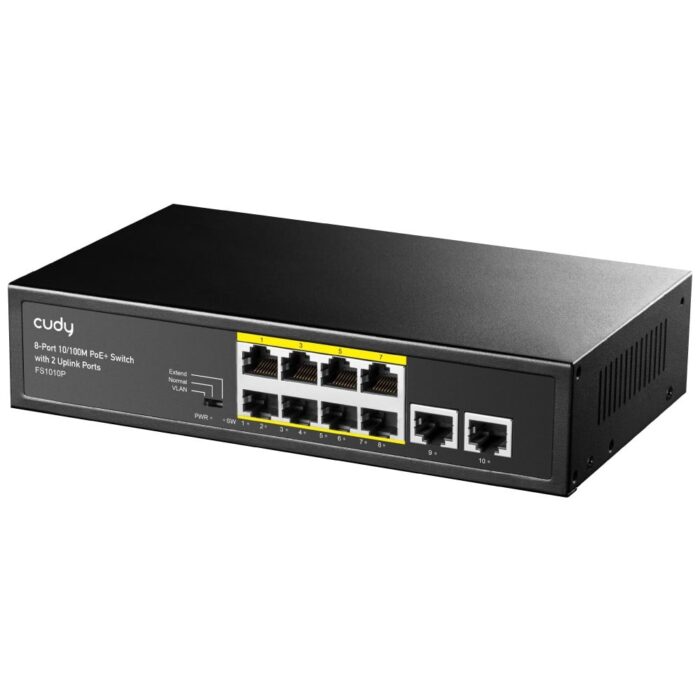

Cudy 8-Port 10/100M PoE+ Switch with 2 Uplink Ports 120W Unmanaged

The Cudy FS1010P features basic switching RJ-45 Ethernet ports, designed for Fast Ethernet (10/100). It includes eight RJ-45 Ethernet ports, all supporting full duplex operation. The MAC address table can accommodate up to 8000 entries. It adheres to several networking standards, including IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, and IEEE 802.3x. The device is equipped with an AC-in jack for its power connector and supports Power over Ethernet (PoE).

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Uplink ports quantity
2
show more

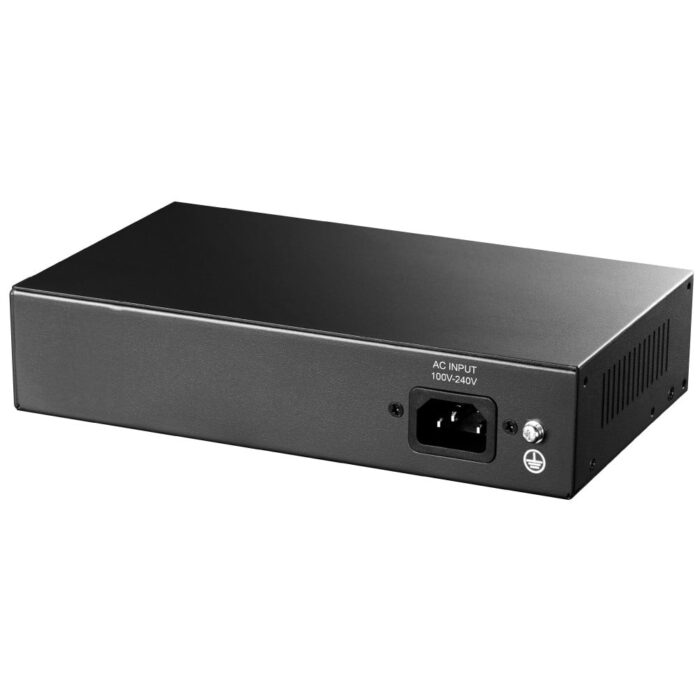

Power connector
AC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Flow control support
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Forwarding rate
1.48 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
1528
show more


Packet buffer memory
0.25 MB
show more

Design

Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Activity, Link, PoE, Power
show more

Performance

Plug and Play
Plug and Play
Yes
show more


Fanless
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
50000 h
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Surge protection
Yes
show more


Surge protection voltage
4 kV
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
8
show more


Power over Ethernet plus (PoE+) ports quantity
2
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
120 W
show more

Other features

Bandwidth
2 Gbit/s
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
220 mm
show more


Depth
Depth
150 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more

Packaging data

Package type
Package type
Box
show more
