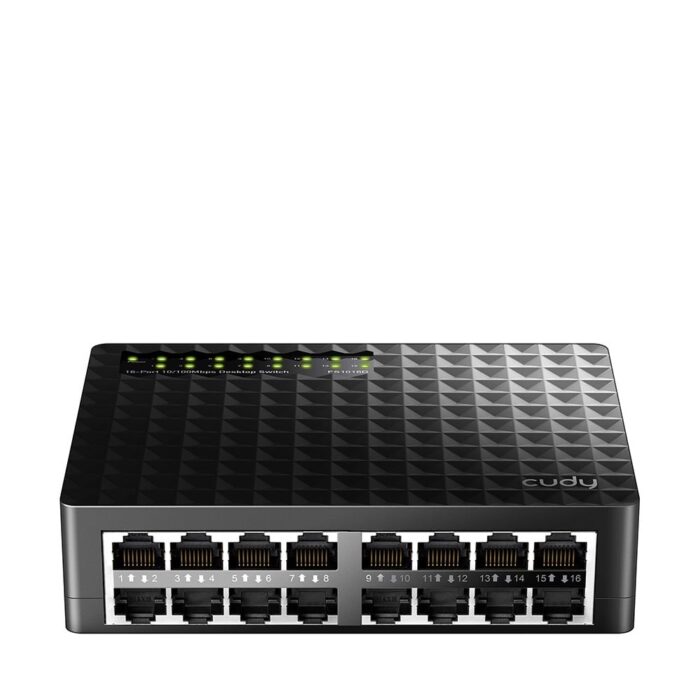

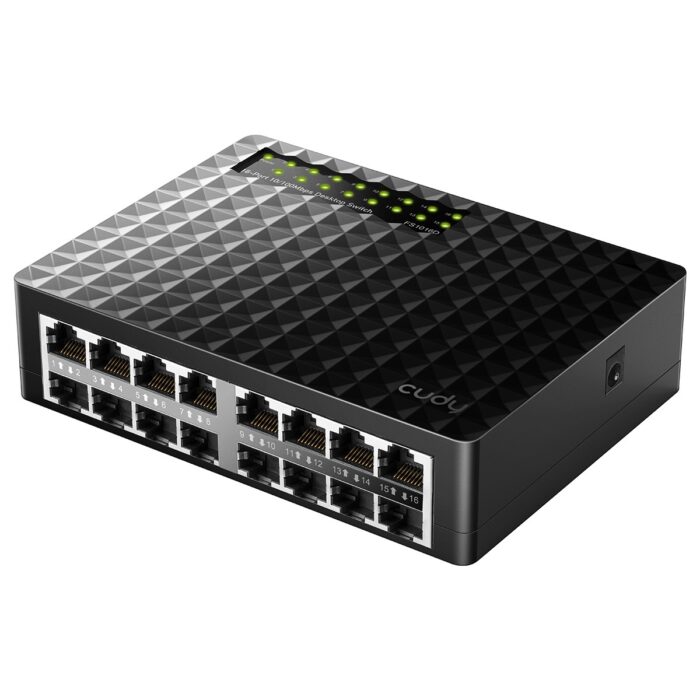

Cudy 16-Port 10/100 Mbps Desktop Switch Unmanaged

Cudy FS1016D is a basic switching device featuring RJ-45 Ethernet ports of the Fast Ethernet type, which supports speeds of 10/100 Mbps. It is equipped with 16 RJ-45 Ethernet ports, enabling full duplex communication. The switch has a MAC address table capacity of 2 entries and offers a switching capacity of 1.6 Gbit/s. It complies with networking standards IEEE 802.3, IEEE 802.3u, and IEEE 802.3x. The device operates with a DC input voltage of 5 volts.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
1.6 Gbit/s
show more


MAC address table
MAC address table
2 entries
show more

Design

Product colour
Product colour
Black
show more


LED indicators
LAN, Power
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
Yes
show more


DC input voltage
5 V
show more


Input current
1 A
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
138 mm
show more


Depth
Depth
103 mm
show more


Height
Height
35 mm
show more


Weight
Weight
228 g
show more

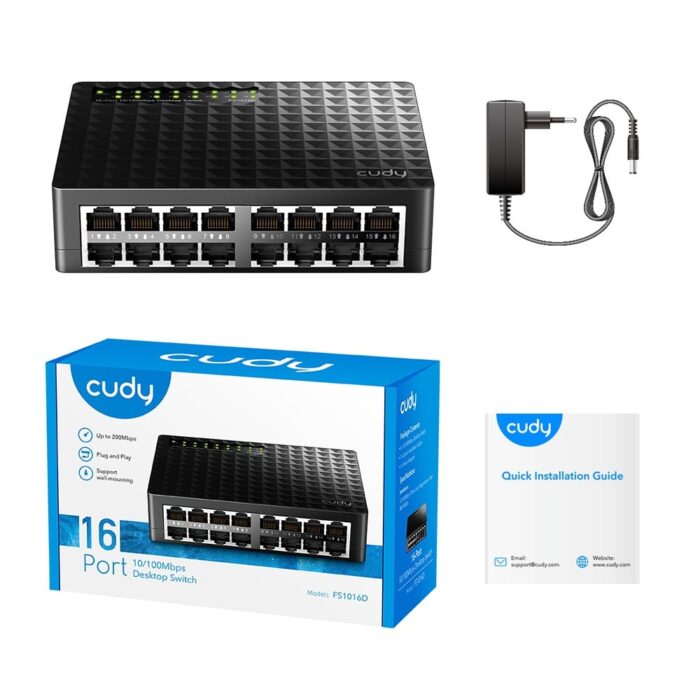

Packaging content

Cables included
DC
show more


Manual
Yes
show more
