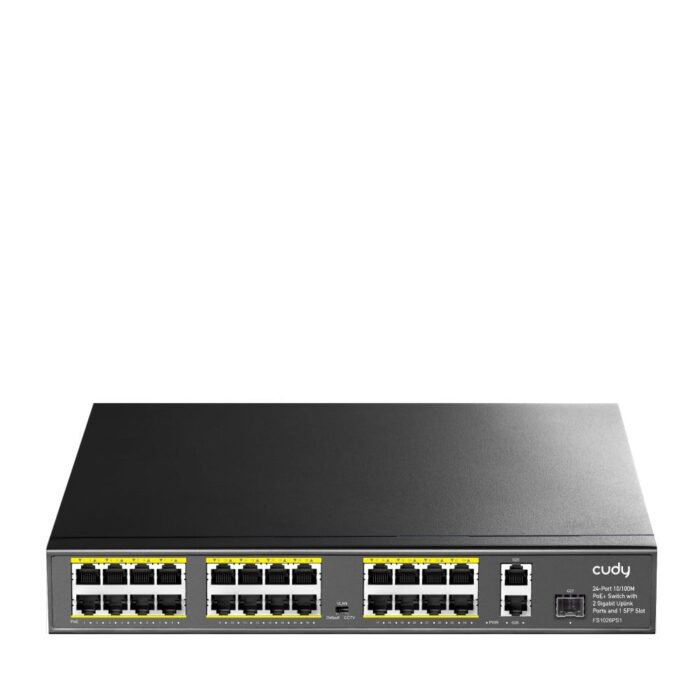

Cudy 24-Port 10/100M PoE+ Switch with 2 Gigabit Ports and 1 SFP 300W Unmanaged

The Cudy FS1026PS1 is an unmanaged switch designed for efficient networking needs. It features 24 RJ-45 Ethernet ports that support Gigabit Ethernet speeds of 10/100/1000 Mbps, making it suitable for high-speed data transfer. Additionally, it includes one installed SFP module for flexible network connectivity. The switch supports a MAC address table with up to 2000 entries and boasts a switching capacity of 10.8 Gbit/s. It conforms to several networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z, ensuring compatibility with a wide range of devices. The DC input voltage ranges from 48 to 55 volts, and the switch supports Power over Ethernet (PoE) for convenient power management. It is also designed for rack mounting, providing an easy and organized installation in networking setups.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
2
show more


Installed SFP modules quantity
Installed SFP modules quantity
1
show more


SFP module slots quantity
1
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-TX
show more


Cable types supported
Cat5, Cat6
show more

Optical fiber

Fiber type
Multi-mode
show more


Transmission distance (max)
120 km
show more


Maximum transfer distance (Multi-mode)
1310 m
show more


Maximum transfer distance (Single-mode)
1550 m
show more

Data transmission

Switching capacity
Switching capacity
10.8 Gbit/s
show more


MAC address table
MAC address table
2000 entries
show more


Packet buffer memory
1 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Performance

Mean time between failures (MTBF)
Mean time between failures (MTBF)
100000 h
show more

Power

Power source
Power source
AC/DC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


DC input voltage
48 – 55 V
show more


Power consumption (typical)
Power consumption (typical)
300 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) power per port
30 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-20 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
0 – 90%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more

Weight & dimensions

Width
Width
210 mm
show more


Depth
Depth
320 mm
show more


Height
Height
46 mm
show more


Weight
Weight
1.9 kg
show more

Packaging data

Package width
Package width
270 mm
show more


Package depth
Package depth
375 mm
show more


Package height
Package height
85 mm
show more


Package weight
Package weight
2.4 kg
show more
