Gigabyte GA-A320M-S2H Motherboard AMD A320 Socket AM4 Micro ATX

The GIGABYTE GA-A320M-S2H is a high-performance motherboard designed for use with AMD processors. It supports AMD A, AMD Athlon, AMD Athlon X4, AMD Ryzen 2000 Series, and AMD Ryzen 3000 Series processors, and uses the Socket AM4. This motherboard is compatible with DDR4-SDRAM memory types and can support a maximum internal memory of 32 GB using its DIMM memory slots. For data configuration, it offers RAID levels 0, 1, and 10. Designed for PC components, it comes in a micro ATX form factor and is built on the AMD motherboard chipset family. The GIGABYTE GA-A320M-S2H features a UEFI AMI BIOS type, with a BIOS memory size of 16 Mbit, ensuring a reliable and efficient performance.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM4
show more


Compatible processor series
Compatible processor series
AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2667,2933,3200 MHz
show more


Maximum internal memory
Maximum internal memory
32 GB
show more

Storage controllers

RAID levels
RAID levels
0, 1, 10
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


S/PDIF out connector
Yes
show more


Front panel audio connector
Yes
show more


Front panel connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
2
show more


Chassis intrusion connector
Yes
show more


EPS power connector (8-pin)
Yes
show more


Serial port headers
1
show more


TPM connector
Yes
show more

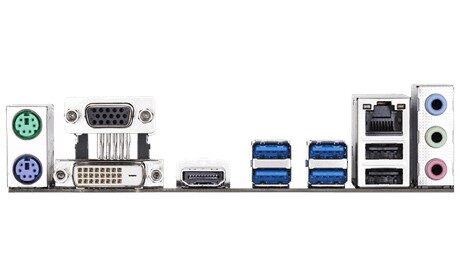

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DVI-D ports quantity
DVI-D ports quantity
1
show more


Headphone outputs
Headphone outputs
1
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more

Features

Motherboard chipset
Motherboard chipset
AMD A320
show more


Audio chip
Realtek ALC887
show more


Audio output channels
Audio output channels
7.1 channels
show more


PC health monitoring
CPU, Fan, Temperature, Voltage
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Power source type
Power source type
ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more

Expansion slots

PCI Express x1 (Gen 2.x) slots
2
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
16 Mbit
show more


ACPI version
5.0
show more


Clear CMOS jumper
Yes
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
195 mm
show more

Packaging content

Manual
Yes
show more


Bundled software
Bundled software
Norton® Internet Security (OEM version)
cFosSpeed
show more

Other features

Quick installation guide
Yes
show more


Utilities included
Yes
show more
