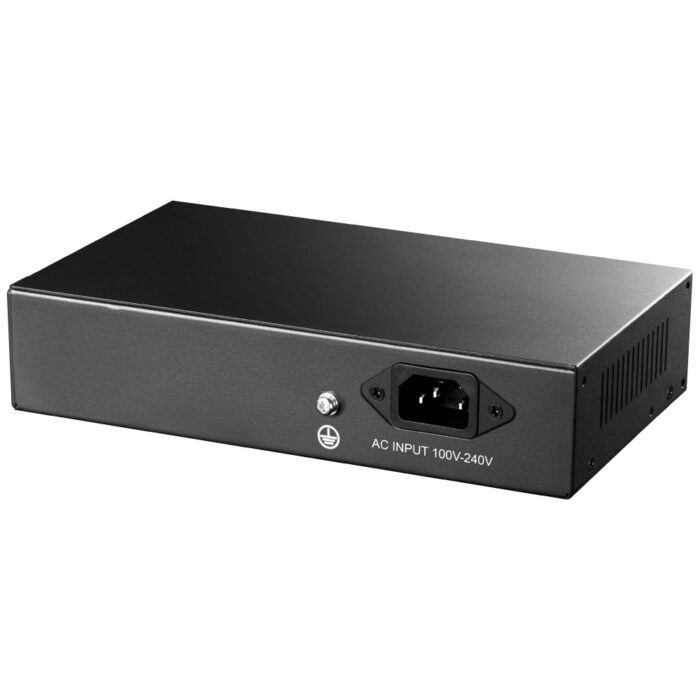

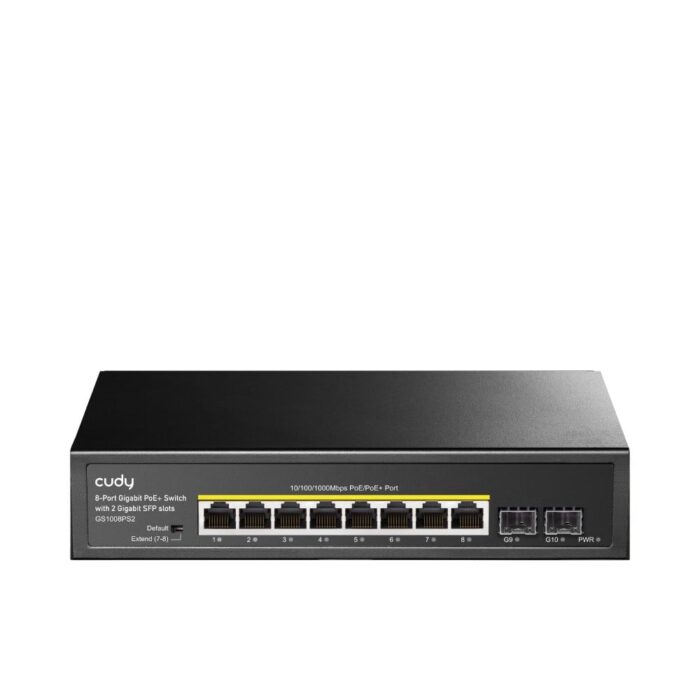

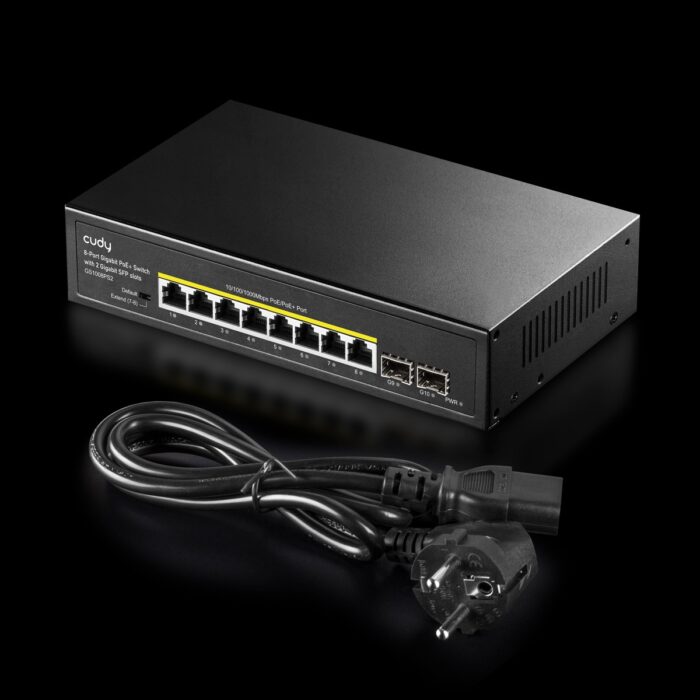

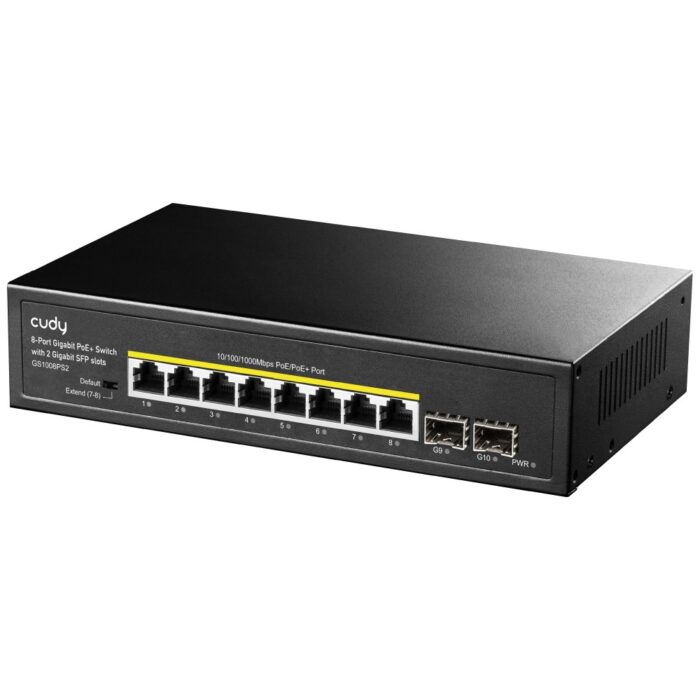

Cudy 8-Port Gigabit PoE+ Switch with 2 Gigabit SFP Slot 120W Unmanaged

The Cudy GS1008PS2 is an unmanaged switch featuring Gigabit Ethernet (10/100/1000) ports. It is equipped with 8 RJ-45 Ethernet ports and has a MAC address table capable of handling 2000 entries. The switching capacity of the device is 20 Gbit/s. This switch supports various networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, and IEEE 802.3x. It also supports Power over Ethernet (PoE). The Cudy GS1008PS2 is designed to be versatile in installation, suitable for wall mounting and rack mounting.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP module slots quantity
2
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-TX
show more


Cable types supported
Cat3, Cat4, Cat5
show more


Flow control support
Yes
show more

Optical fiber

Fiber type
Multi-mode
show more

Data transmission

Switching capacity
Switching capacity
20 Gbit/s
show more


Forwarding rate
14.88 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Mean time between failures (MTBF)
Mean time between failures (MTBF)
100000 h
show more

Power

Power source
Power source
AC/DC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
30 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-10 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
260 mm
show more


Depth
Depth
161 mm
show more


Height
Height
44 mm
show more


Weight
Weight
880 g
show more

Packaging data

Package type
Package type
Box
show more


Package width
Package width
315 mm
show more


Package depth
Package depth
215 mm
show more


Package height
Package height
85 mm
show more


Package weight
Package weight
1.38 kg
show more
