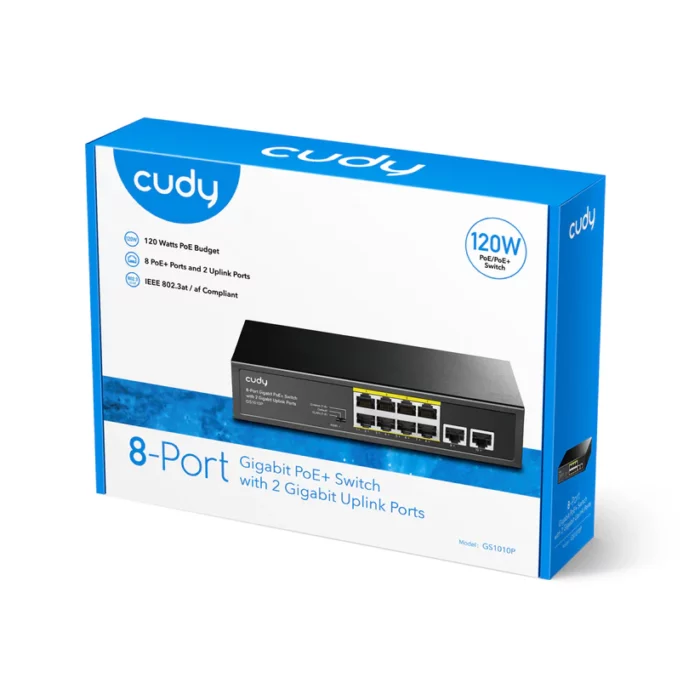

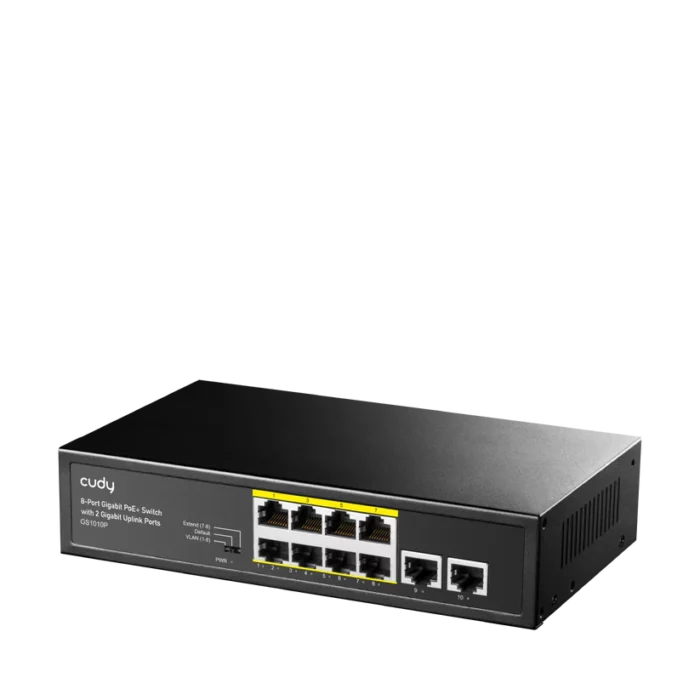

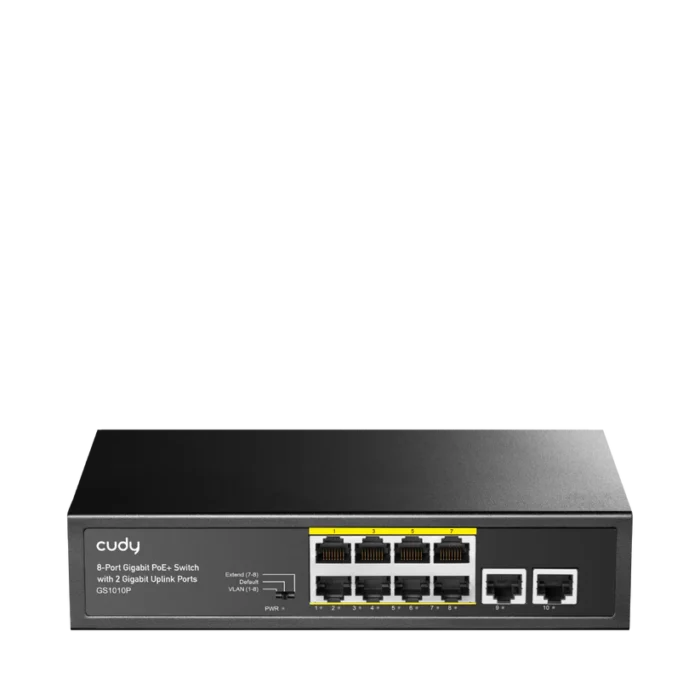

Cudy 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports 120W Unmanaged

The Cudy GS1010P is equipped with basic switching RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000) and features a total of 10 ports. It has a MAC address table capable of holding 2048 entries and offers a switching capacity of 20 Gbit/s. The device supports various networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, and IEEE 802.3x. It includes an AC-in jack for power connection and offers Power over Ethernet (PoE) capabilities. The design allows for versatile installation options, as it is wall-mountable and can also be mounted on a rack. Its form factor supports both desktop and wall-mounting setups.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
10
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Uplink ports quantity
2
show more

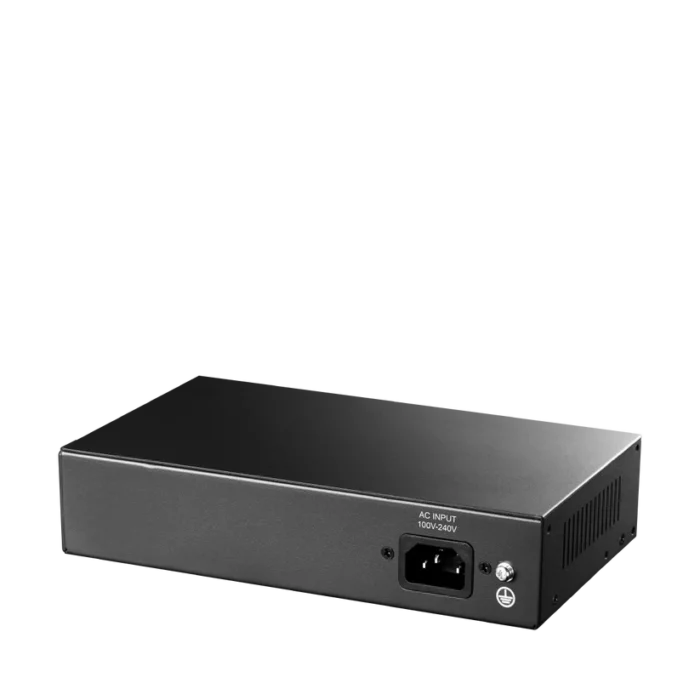

Power connector
AC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
show more


Copper ethernet cabling technology
100BASE-T
show more


Cable types supported
Cat3, Cat5, Cat5e
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more


VLAN support
VLAN support
Yes
show more


Number of VLANs
8
show more

Data transmission

Switching capacity
Switching capacity
20 Gbit/s
show more


Forwarding rate
14.88 Mpps
show more


MAC address table
MAC address table
2048 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Packet buffer memory
0.448 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
Desktop/Wall-Mounting
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Activity, Link, Power
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Plug and Play
Plug and Play
Yes
show more


Fanless
Yes
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


Output voltage
52 V
show more


Output current
2.3 A
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
8
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
120 W
show more

Other features

Bandwidth
20 Gbit/s
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-20 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 80 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
220 mm
show more


Depth
Depth
150 mm
show more


Height
Height
44 mm
show more


Weight
Weight
630 g
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more
