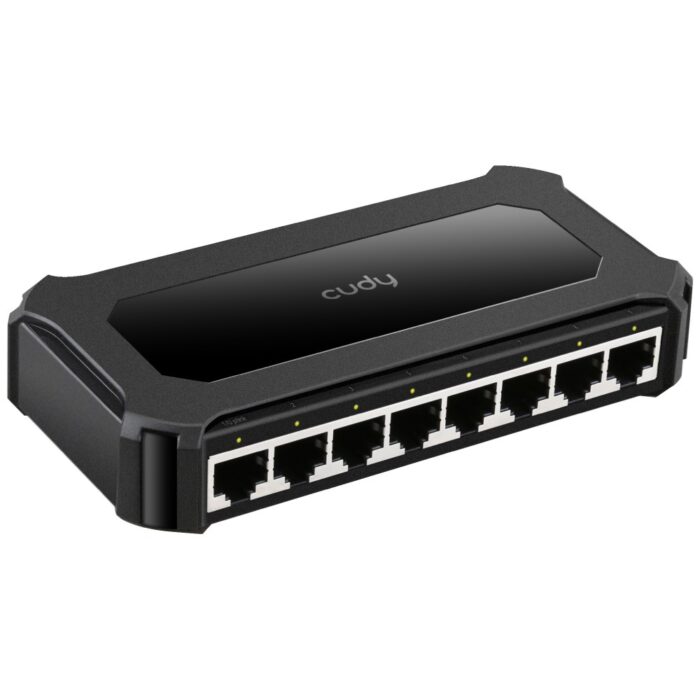

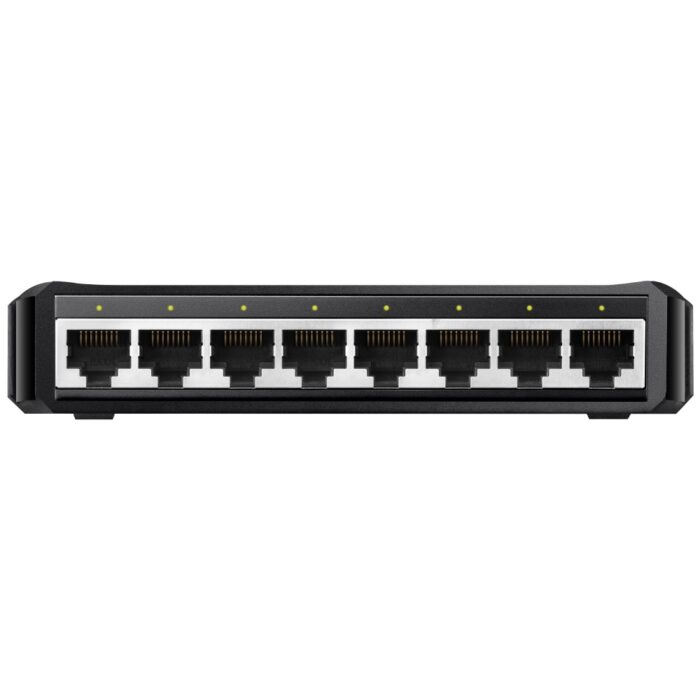

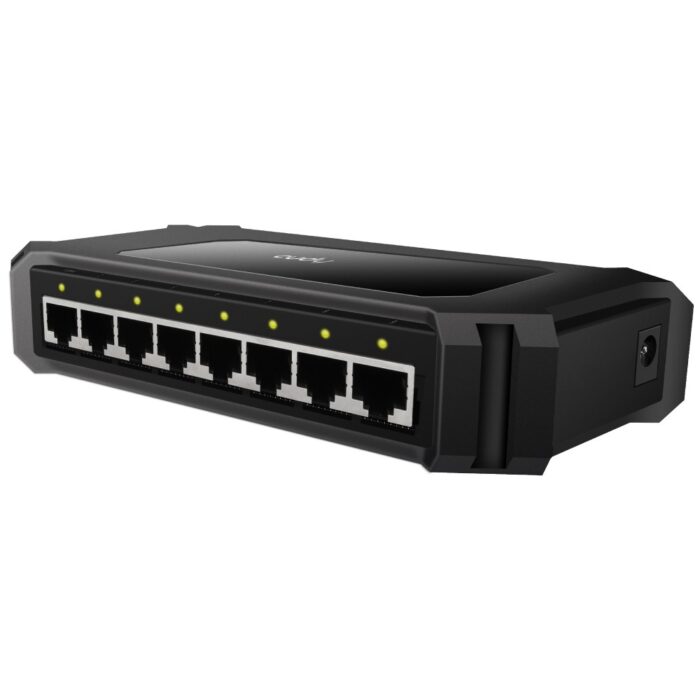

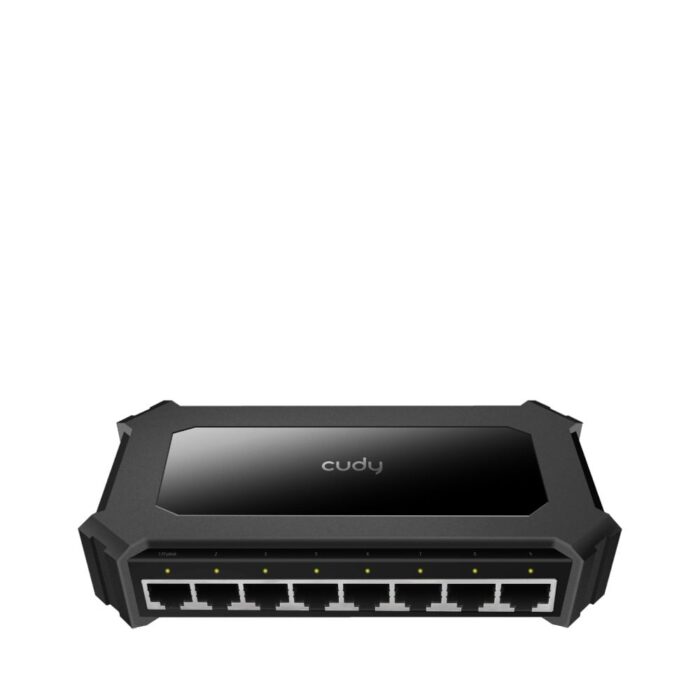

Cudy 8-Port Gigabit Desktop Switch Unmanaged

The Cudy GS108D is a network switch providing eight basic switching RJ-45 Ethernet ports, each capable of Gigabit Ethernet speeds (10/100/1000 Mbps). It supports full duplex communication, meaning data can be sent and received simultaneously. The switch has a total switching capacity of 16 Gbps, ensuring efficient data transfer across all ports. It is compatible with multiple networking standards including IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x. The device operates with a DC input voltage of 5 volts.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-learning supported
Yes
show more


MAC address auto-aging supported
Yes
show more


Auto-negotiation
Yes
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


Store-and-forward
Yes
show more


Packet forwarding rate (10 Mbps)
14880 pps
show more


Packet forwarding rate (1 Gbps)
1488000 pps
show more


Packet forwarding rate (100 Mbps)
148800 pps
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


LED indicators
Activity, Link, Power
show more

Performance

Plug and Play
Plug and Play
Yes
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
Yes
show more


DC input voltage
5 V
show more


Input current
1 A
show more


Power consumption (max)
Power consumption (max)
2.3 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Other features

Bandwidth
1.6 Gbit/s
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
143 mm
show more


Depth
Depth
72.7 mm
show more


Height
Height
26.9 mm
show more


Weight
Weight
215 g
show more

Packaging content

Cables included
DC
show more


Manual
Yes
show more

Packaging data

Package type
Package type
Box
show more
