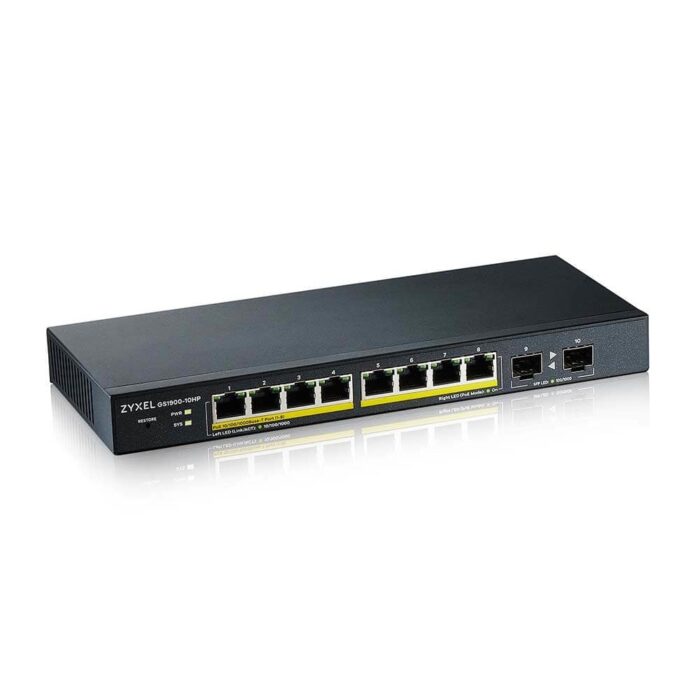

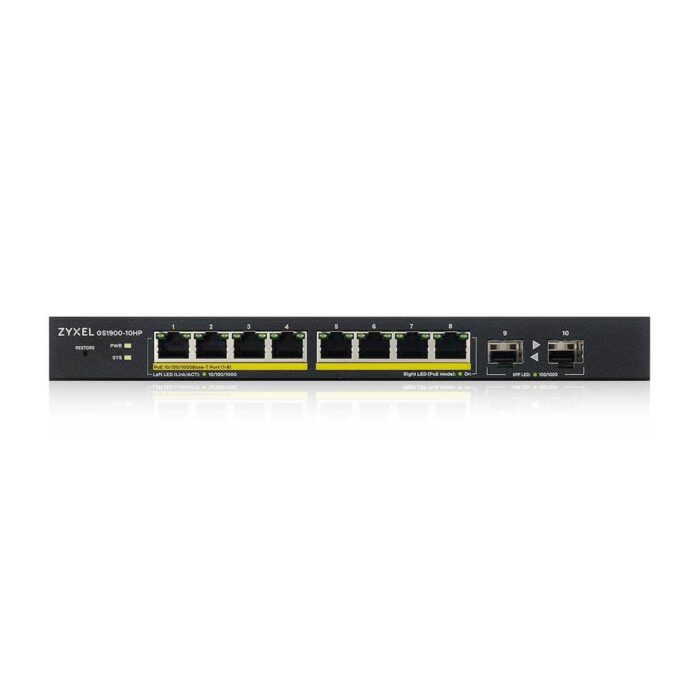

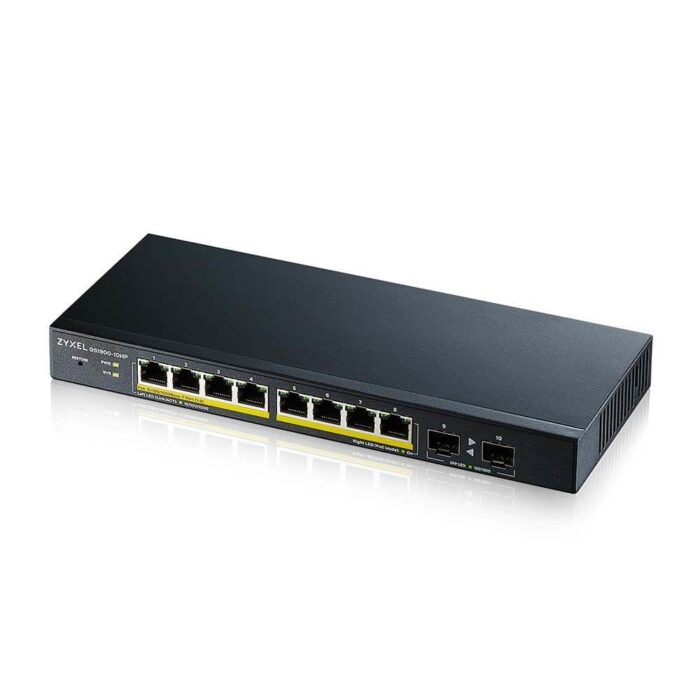

Zyxel GS1900-10HP v2, 8-port GbE L2 PoE Smart Switch with 2 SFP slots, 802.3at compliant, desktop, fanless, 70 Watt

The Zyxel GS1900-10HP is a managed network switch designed to operate at Layer 2. It features 8 basic switching RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000). Additionally, it includes a console port with an RJ-45 connector. The switch offers a MAC address table capable of storing 8000 entries and has a switching capacity of 20 Gbit/s. It adheres to several networking standards, including IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, and IEEE 802.3at. The device also supports Power over Ethernet (PoE) and can be wall-mounted for convenient installation.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


System event log
Yes
show more


MIB support
RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215 generic traps, RFC 1493 bridge
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP module slots quantity
2
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Voice VLAN
show more

Data transmission

Switching capacity
Switching capacity
20 Gbit/s
show more


Throughput
14.88 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Jumbo frames
9000
show more

Security

DHCP features
DHCP client
show more


IGMP snooping
Yes
show more


MAC address filtering
MAC address filtering
Yes
show more


Security algorithms
Security algorithms
802.1x RADIUS, SSL/TLS
show more

Protocols

Management protocols
SNMP, RMON, ICMP, Syslog
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Mean time between failures (MTBF)
Mean time between failures (MTBF)
800259 h
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
95.3 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
8
show more


Total Power over Ethernet (PoE) budget
77 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 95%
show more


Storage relative humidity (H-H)
10 – 95%
show more

Weight & dimensions

Width
Width
250 mm
show more


Depth
Depth
104 mm
show more


Height
Height
27 mm
show more


Weight
Weight
720 g
show more

Packaging content

Cables included
AC
show more

Certificates

Certification
CE, FCC, RCM, Class A, BSMI CNS 13438, LVD EN 62368-1, BSMI CNS 14336-1
show more
