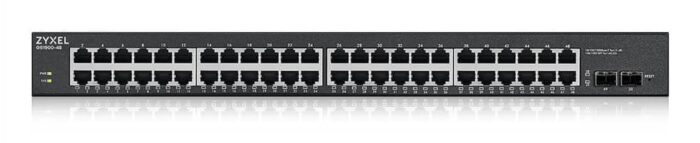

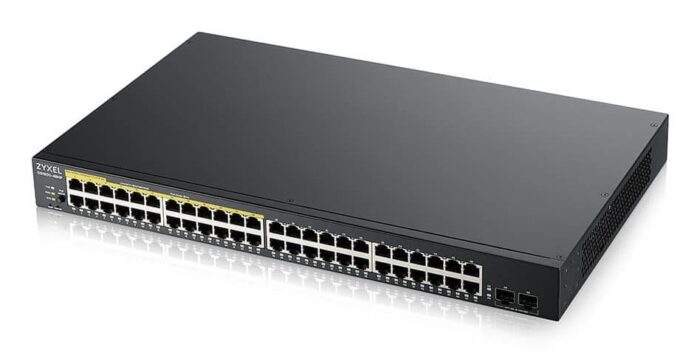

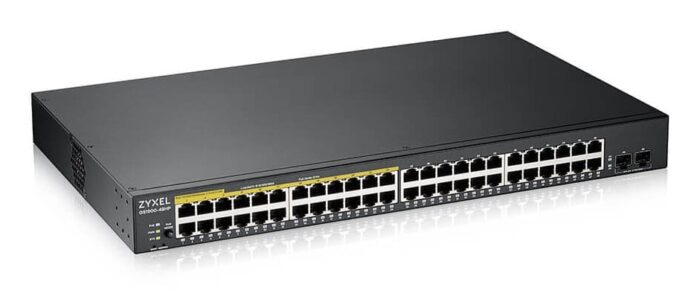

Zyxel GS1900-48HP v2, 48-port GbE L2 Smart Switch, 170 Watt Rackmount

The Zyxel GS1900-48HPv2 is a managed switch that operates at Layer 2. It features 48 Gigabit Ethernet ports with 10/100/1000 Mbps speed, supporting full duplex communication. The switch has a MAC address table capacity of 8000 entries and offers a switching capacity of 100 Gbit/s. It is compatible with various networking standards, including IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, and IEEE 802.3at. The device includes a DC-in jack for power connection and supports Power over Ethernet (PoE). It is also designed for rack mounting.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


MIB support
RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
48
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP module slots quantity
2
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
show more


Copper ethernet cabling technology
1000BASE-T
show more


Full duplex
Full duplex
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
100 Gbit/s
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Performance

Noise level
Noise level
36.9 dB
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
220.5 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
24
show more


Total Power over Ethernet (PoE) budget
170 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 95%
show more

Weight & dimensions

Width
Width
441 mm
show more


Depth
Depth
270 mm
show more


Height
Height
44 mm
show more


Weight
Weight
3.55 kg
show more

Certificates

Certification
RoHS, CE
show more

Logistics data

Harmonized System (HS) code
85176990
show more
