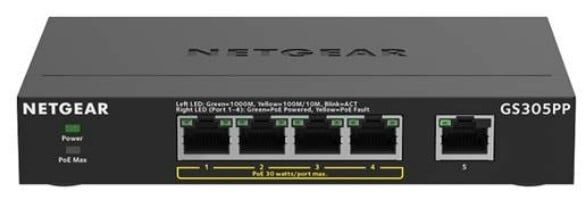

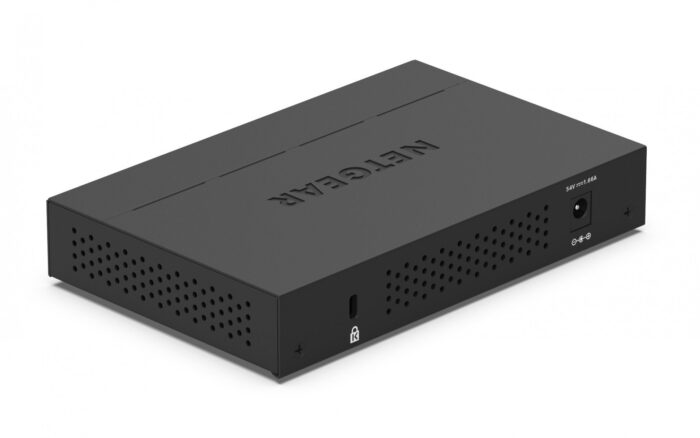

NETGEAR GS305PP Unmanaged Gigabit Ethernet 10/100/1000 Power over Ethernet PoE Black

The NETGEAR GS305PP is an unmanaged switch with Gigabit Ethernet RJ-45 ports that support speeds of 10/100/1000 Mbps. It features four basic switching ports and operates in full duplex mode. The switch has a MAC address table that can accommodate up to 2000 entries and boasts a switching capacity of 10 Gbit/s. It adheres to several networking standards, including IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x. The switch requires a DC input voltage of 54 V and is equipped with a DC-in jack for power connection. It also supports Power over Ethernet (PoE) and can be mounted on a wall.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
4
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
5
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Full duplex
Full duplex
Yes
show more


Cable length detection
Yes
show more


Auto-negotiation
Yes
show more


Auto-sensing
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
10 Gbit/s
show more


Forwarding rate
1.448 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Latency (1 Gbps)
2.4 µs
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more


Packet buffer memory
128 MB
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


Reset button
Yes
show more


LED indicators
Activity, Link, PoE, Power
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Mean time between failures (MTBF)
Mean time between failures (MTBF)
6710127 h
show more

Power

DC input voltage
54 V
show more


Input current
1.66 A
show more


Power consumption (typical)
Power consumption (typical)
2.89 W
show more


Power consumption (max)
Power consumption (max)
88.89 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
4
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
83 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more


Heat dissipation
Heat dissipation
304 BTU/h
show more

Weight & dimensions

Width
Width
158 mm
show more


Depth
Depth
101 mm
show more


Height
Height
29 mm
show more


Weight
Weight
410 g
show more

Packaging content

Manual
Yes
show more

Packaging data

Package width
Package width
269 mm
show more


Package depth
Package depth
73 mm
show more


Package height
Package height
215 mm
show more


Package weight
Package weight
1.3 kg
show more

Certificates

Certification
CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE
VD, CCC
show more

Logistics data

Master (outer) case width
237 mm
show more


Master (outer) case length
469 mm
show more


Harmonized System (HS) code
85176990
show more


Master (outer) case height
306 mm
show more


Master (outer) case gross weight
8.52 kg
show more


Products per master (outer) case
6 pc(s)
show more
