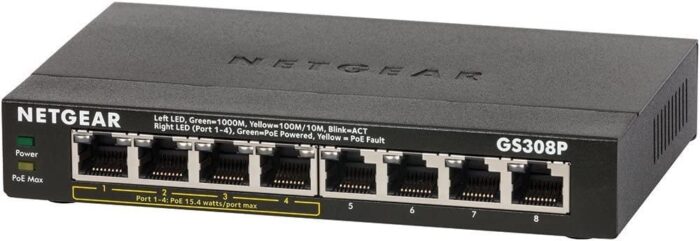

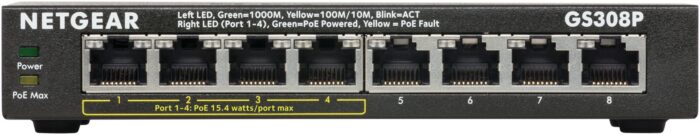

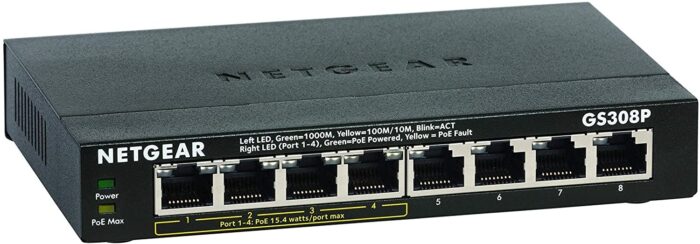

Netgear GS308P Unmanaged Gigabit Ethernet 10/100/1000 Power over Ethernet PoE Black GS308P-100PES

The NETGEAR GS308P is an unmanaged switch that offers Gigabit Ethernet (10/100/1000) ports. It features 8 RJ-45 Ethernet ports and supports full duplex communication. The switch has a MAC address table that can accommodate up to 4000 entries and boasts a switching capacity of 16 Gbit/s. It complies with several networking standards, including IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x. The device operates with a DC input voltage of 48 V and is equipped with a DC-in jack power connector. Additionally, it supports Power over Ethernet (PoE).

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto-negotiation
Yes
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


Forwarding rate
1.448 Mpps
show more


MAC address table
MAC address table
4000 entries
show more


Latency (1 Gbps)
3 µs
show more


Jumbo frames support
Yes
show more


Jumbo frames
9720
show more


Packet buffer memory
0.192 MB
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


Reset button
Yes
show more


LED indicators
Activity, Link, PoE, Power
show more

Performance

Mean time between failures (MTBF)
Mean time between failures (MTBF)
2244211 h
show more

Power

DC input voltage
48 V
show more


Input current
1.25 A
show more


Power consumption (max)
Power consumption (max)
60 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
4
show more


Power over Ethernet (PoE) power per port
15.4 W
show more


Total Power over Ethernet (PoE) budget
53 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-27 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating altitude
0 – 3000 m
show more


Heat dissipation
Heat dissipation
205.2 BTU/h
show more

Weight & dimensions

Width
Width
158 mm
show more


Depth
Depth
101 mm
show more


Height
Height
29 mm
show more


Weight
Weight
460 g
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
CE Mark, FCC Part 15 Class A, IC Class A, RCM, CCC, VCCI, KC
show more

Logistics data

Harmonized System (HS) code
85176990
show more
