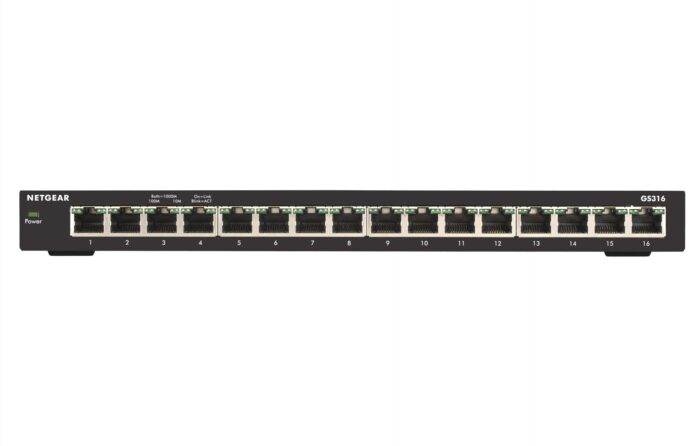

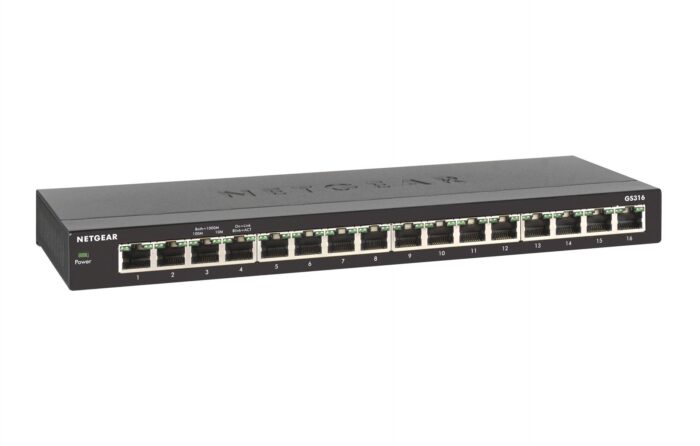

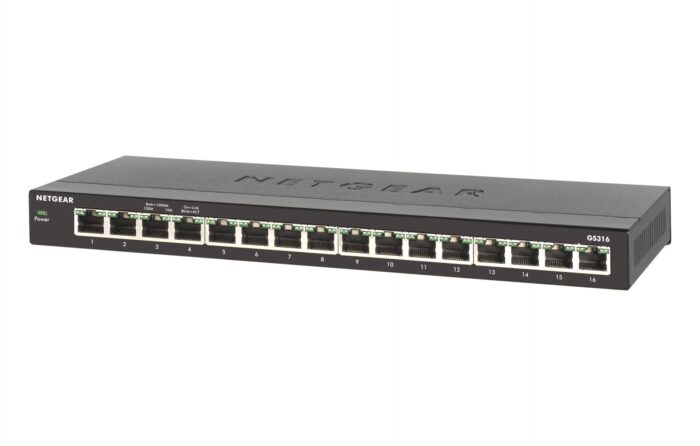

NETGEAR GS316 Unmanaged Gigabit Ethernet (10/100/1000) Black

The NETGEAR GS316 is an unmanaged switch featuring 16 Gigabit Ethernet (10/100/1000) RJ-45 ports. It supports full duplex communication and can manage up to 16,000 MAC address entries. With a switching capacity of 32 Gbit/s, this switch adheres to networking standards including IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x. It operates with a DC input voltage of 12 V.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


Forwarding rate
1.448 Mpps
show more


MAC address table
MAC address table
16000 entries
show more


Latency (1 Gbps)
3.9 µs
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more


Packet forwarding rate (1 Gbps)
1448000 pps
show more


Packet buffer memory
0.768 MB
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Activity, Link, Power, Speed
show more


On/off switch
On/off switch
No
show more

Performance

Buffer size
Buffer size
768 KB
show more


Plug and Play
Plug and Play
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
9041798 h
show more

Power

DC input voltage
12 V
show more


Input current
1 A
show more


Input voltage
Input voltage
12 V
show more


Output current
1 A
show more


Power consumption (max)
Power consumption (max)
8.4 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating altitude
0 – 3000 m
show more


Heat dissipation
Heat dissipation
2873 BTU/h
show more

Weight & dimensions

Width
Width
286 mm
show more


Depth
Depth
101 mm
show more


Height
Height
26 mm
show more


Weight
Weight
840 g
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
CE Mark, FCC Part 15 Class A, IC Class A, RCM, CCC, VCCI, KC
show more

Logistics data

Harmonized System (HS) code
85176990
