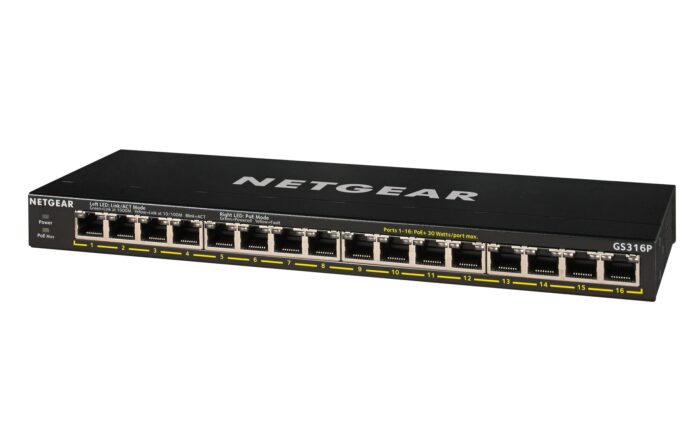

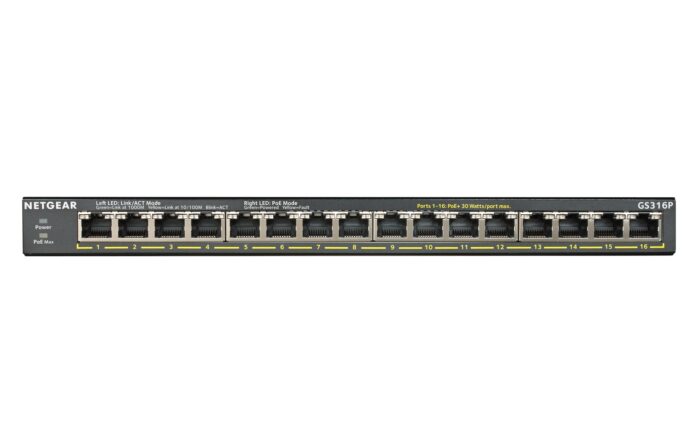

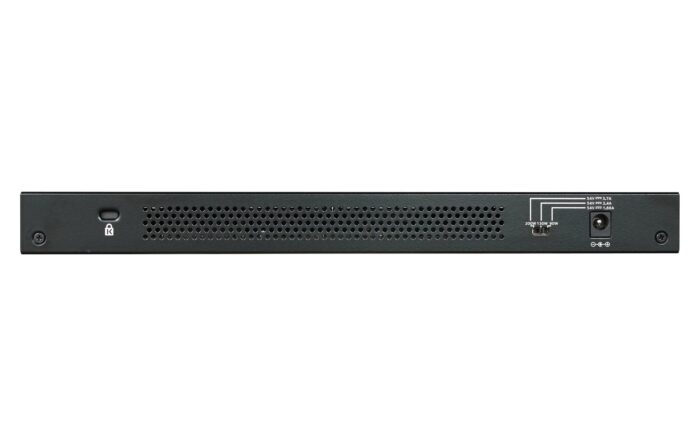

Netgear GS316P Unmanaged Gigabit Ethernet Full Duplex Power over Ethernet (PoE) Rack Mounting Wall Mountable (GS316P-100EUS)

The NETGEAR GS316P is an unmanaged switch featuring 16 RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000). It offers full duplex communication and has a MAC address table capable of holding up to 4000 entries. The switch has a switching capacity of 32 Gbit/s and adheres to various networking standards, including IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x. It requires a DC input voltage of 54 V and features a DC-in jack for power connectivity. The switch also supports Power over Ethernet (PoE) and can be wall-mounted for convenience.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


MAC address table
MAC address table
4000 entries
show more


Latency (1 Gbps)
3.7 µs
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more


Packet forwarding rate (1 Gbps)
1448000 pps
show more


Packet buffer memory
1 MB
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Mean time between failures (MTBF)
Mean time between failures (MTBF)
2362192 h
show more

Power

DC input voltage
54 V
show more


Input current
2.4 A
show more


Power consumption (max)
Power consumption (max)
127.9 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
16
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
0 – 90%
show more


Operating altitude
0 – 3000 m
show more


Heat dissipation
Heat dissipation
437.42 BTU/h
show more

Weight & dimensions

Width
Width
286 mm
show more


Depth
Depth
102 mm
show more


Height
Height
27 mm
show more


Weight
Weight
880 g
show more

Logistics data

Harmonized System (HS) code
85176990
show more
